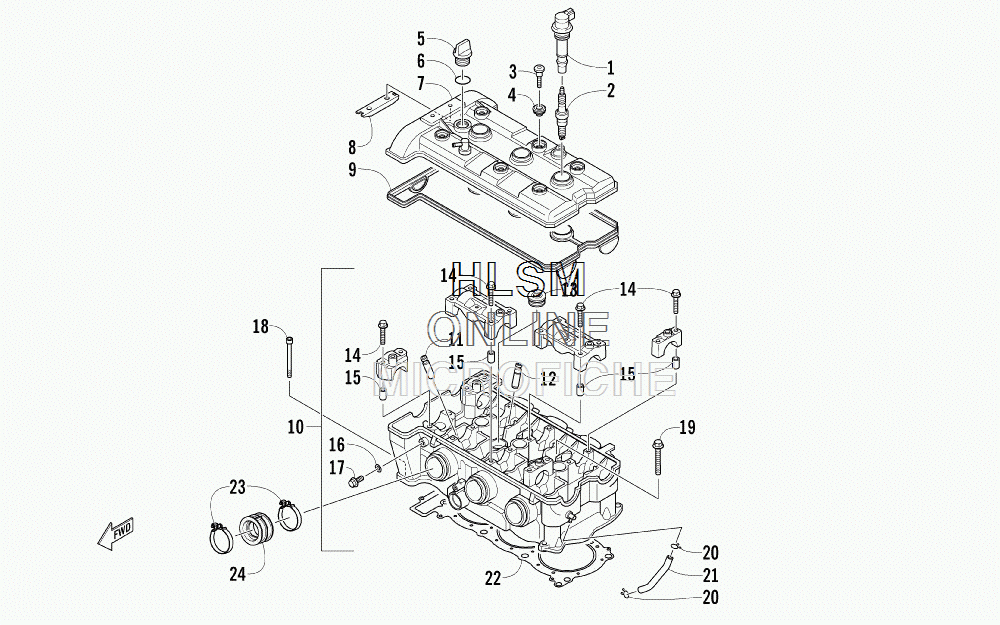

CYLINDER HEAD ASSEMBLY для Arctic Cat ZR 7000 Sno Pro - ORANGE - INTERNATIONAL [S2014ZRUEPOSO] - 2014 года выпуска
-
№АртикулНазвание
-
13020-168 COIL, IGNITIONCOIL, IGNITION
-
20217-738 PLUG, SPARK (CR9E)PLUG, SPARK (CR9E)
-
33020-169 SCREW, SHOULDERSCREW, SHOULDER
-
43020-170 GROMMETGROMMET
-
53020-171 PLUGPLUG
-
63020-172 O-RINGO-RING
-
73020-173 COVER, CYLINDER HEAD (INC. 8)COVER, CYLINDER HEAD (INC. 8)
-
83020-174 ...GUIDE, CHAIN...GUIDE, CHAIN
-
93020-175 GASKET, CYLINDER COVERGASKET, CYLINDER COVER
-
103020-176 HEAD, CYLINDER - ASSEMBLY (INC. 11-17)HEAD, CYLINDER - ASSEMBLY (INC. 11-17)
-
113020-177 ...GUIDE, VALVE - INTAKE...GUIDE, VALVE - INTAKE
-
123020-178 ...GUIDE, VALVE - EXHAUST...GUIDE, VALVE - EXHAUST
-
133020-142 ...PLUG...PLUG
-
143020-179 ...SCREW, CAP...SCREW, CAP
-
153020-180 ...PIN, DOWEL...PIN, DOWEL
-
163020-181 ...GASKET...GASKET
-
173020-182 ...SCREW, CAP...SCREW, CAP
-
183020-183 SCREW, CAPSCREW, CAP
-
193020-184 SCREW, CAPSCREW, CAP
-
203020-185 CLAMP, HOSECLAMP, HOSE
-
213020-186 HOSE, OILHOSE, OIL
-
223020-187 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
233020-188 CLAMPCLAMP
-
243020-189 BOOT, INTAKEBOOT, INTAKE
