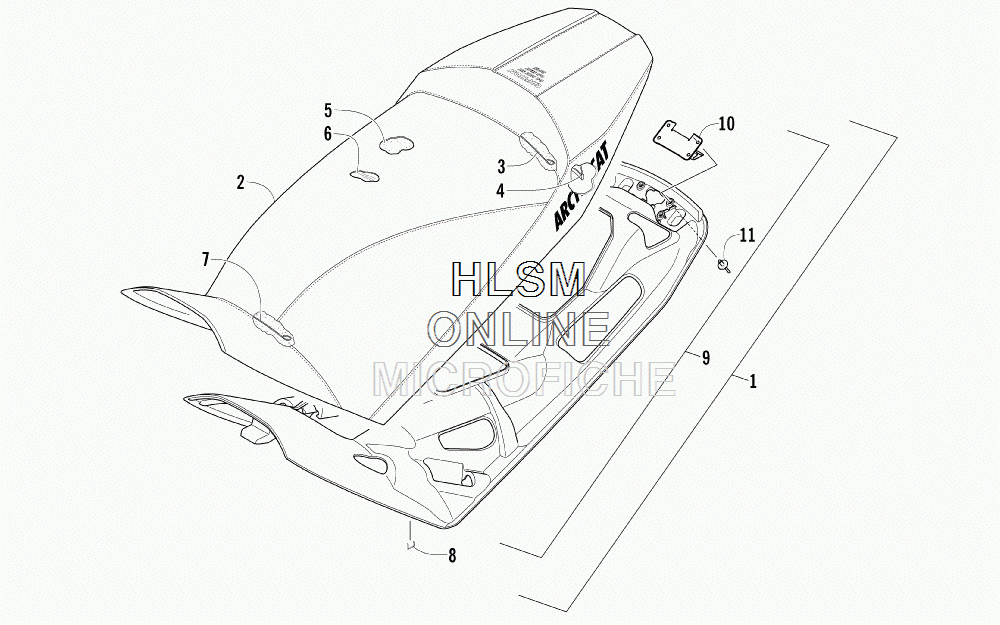

SEAT ASSEMBLY для Arctic Cat ZR 7000 Sno Pro LTD - WHITE [S2014ZRULEUSW] - 2014 года выпуска
-
№АртикулНазвание
-
15706-675 COMPLETE SEAT ASSEMBLY - WHITE (INC. 2-11)COMPLETE SEAT ASSEMBLY - WHITE (INC. 2-11)
-
25706-676 ...COVER, SEAT - WHITE (INC. 3-4)...COVER, SEAT - WHITE (INC. 3-4)
-
33606-369 ......WIRE, SEAT......WIRE, SEAT
-
46606-721 ......WIRE, SEAT......WIRE, SEAT
-
50717-214 ...FOAM, SEAT...FOAM, SEAT
-
60609-913 ...PAD, SEAT HEATER...PAD, SEAT HEATER
-
76606-461 ...WIRE, SEAT...WIRE, SEAT
-
80624-528 ...STAPLE...STAPLE
-
95706-770 ...SEAT-BASE (INC. 10-11)...SEAT-BASE (INC. 10-11)
-
106606-833 ......LATCH, SEAT......LATCH, SEAT
-
118061-708 ......RIVET......RIVET
Все узлы модели:
- A-ARM AND SWAY BAR ASSEMBLY
- AIR INTAKE ASSEMBLY
- BATTERY AND TRAY ASSEMBLY
- BELT GUARD ASSEMBLY
- CAMSHAFT- CHAIN- AND VALVE ASSEMBLY
- CHAIN CASE ASSEMBLY
- CONSOLE ASSEMBLY
- COOLING ASSEMBLY
- CRANKCASE ASSEMBLY
- CYLINDER HEAD ASSEMBLY
- DRIVE CLUTCH
- DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES
- DRIVEN CLUTCH
- ENGINE AND RELATED PARTS
- EXHAUST ASSEMBLY
- FRONT BUMPER AND FRAME ASSEMBLY
- FRONT SUSPENSION SHOCK ABSORBER
- FUEL PUMP ASSEMBLY
- GAS TANK ASSEMBLY
- HANDLEBAR AND CONTROLS
- HEADLIGHT AND WIRING ASSEMBLIES
- HOOD ASSEMBLY
- HYDRAULIC BRAKE CONTROL ASSEMBLY
- IDLER WHEEL ASSEMBLY
- MAGNETO AND COVER ASSEMBLY
- OIL PAN ASSEMBLY
- OIL PUMP ASSEMBLY
- OIL TANK ASSEMBLY
- PISTON AND CRANKSHAFT ASSEMBLY
- REAR SUSPENSION FRONT ARM ASSEMBLY
- REAR SUSPENSION FRONT ARM SHOCK ABSORBER
- REAR SUSPENSION REAR ARM ASSEMBLY
- REAR SUSPENSION REAR ARM SHOCK ABSORBER
- • SEAT ASSEMBLY
- SHOCK ABSORBER ASSEMBLY
- SKI AND SPINDLE ASSEMBLY
- SKID PLATE AND SIDE PANEL ASSEMBLY
- SLIDE RAIL AND TRACK ASSEMBLY
- STARTER MOTOR ASSEMBLY
- STEERING POST ASSEMBLY
- STEERING SUPPORT ASSEMBLY
- THROTTLE BODY ASSEMBLY
- TIE ROD ASSEMBLY
- TUNNEL- REAR BUMPER- AND SNOWFLAP ASSEMBLY
- WATER PUMP ASSEMBLY
- WINDSHIELD AND INSTRUMENTS ASSEMBLIES
