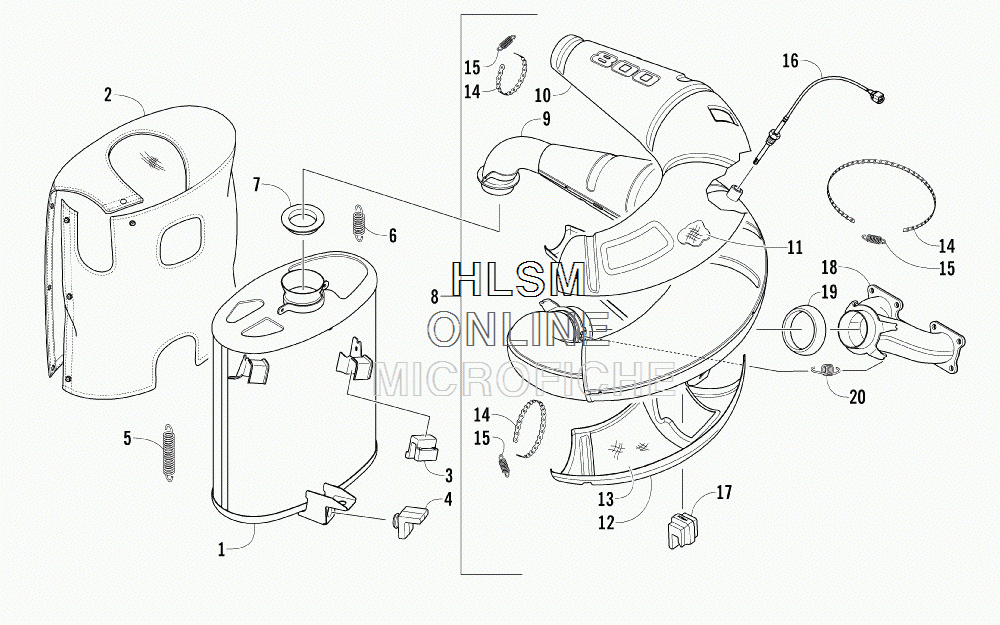

EXHAUST ASSEMBLY для Arctic Cat ZR 8000 LXR - BLACK [S2014ZRNLXUSB] - 2014 года выпуска
-
№АртикулНазвание
-
11712-772 RESONATOR ASSEMBLYRESONATOR ASSEMBLY
-
22612-573 COVER, RESONATORCOVER, RESONATOR
-
32612-893 GROMMET, RESONATOR MOUNTGROMMET, RESONATOR MOUNT
-
42612-706 GROMMET, RESONATOR MOUNTGROMMET, RESONATOR MOUNT
-
52612-949 SPRING, EXHAUSTSPRING, EXHAUST
-
60612-471 SPRING, EXHAUSTSPRING, EXHAUST
-
71612-619 GASKET, EXHAUST - TAILPIPEGASKET, EXHAUST - TAILPIPE
-
81712-771 CHAMBER, EXPANSION - ASSEMBLY (INC. 9-15)CHAMBER, EXPANSION - ASSEMBLY (INC. 9-15)
-
91712-792 ...CHAMBER, EXPANSION...CHAMBER, EXPANSION
-
102612-797 ...COVER, EXPANSION CHAMBER - UPPER...COVER, EXPANSION CHAMBER - UPPER
-
112612-660 ...PACKING, EXPANSION CHAMBER - UPPER...PACKING, EXPANSION CHAMBER - UPPER
-
122612-659 ...COVER, EXPANSION CHAMBER - LOWER...COVER, EXPANSION CHAMBER - LOWER
-
132612-661 ...PACKING, EXPANSION CHAMBER - LOWER...PACKING, EXPANSION CHAMBER - LOWER
-
140624-552 ...TIE, PERFORATED BAND - 5 FT...TIE, PERFORATED BAND - 5 FT
-
140624-541 ...TIE, PERFORATED BAND - 25 FT...TIE, PERFORATED BAND - 25 FT
-
151612-178 ...SPRING, EXHAUST...SPRING, EXHAUST
-
160630-260 SENSOR, EXHAUST TEMPERATURESENSOR, EXHAUST TEMPERATURE
-
172612-667 GROMMET, EXPANSION CHAMBER MOUNTGROMMET, EXPANSION CHAMBER MOUNT
-
181712-559 MANIFOLD, EXHAUSTMANIFOLD, EXHAUST
-
192612-059 GASKET, EXHAUST - MANIFOLDGASKET, EXHAUST - MANIFOLD
-
202612-399 SPRING, EXTENSIONSPRING, EXTENSION
