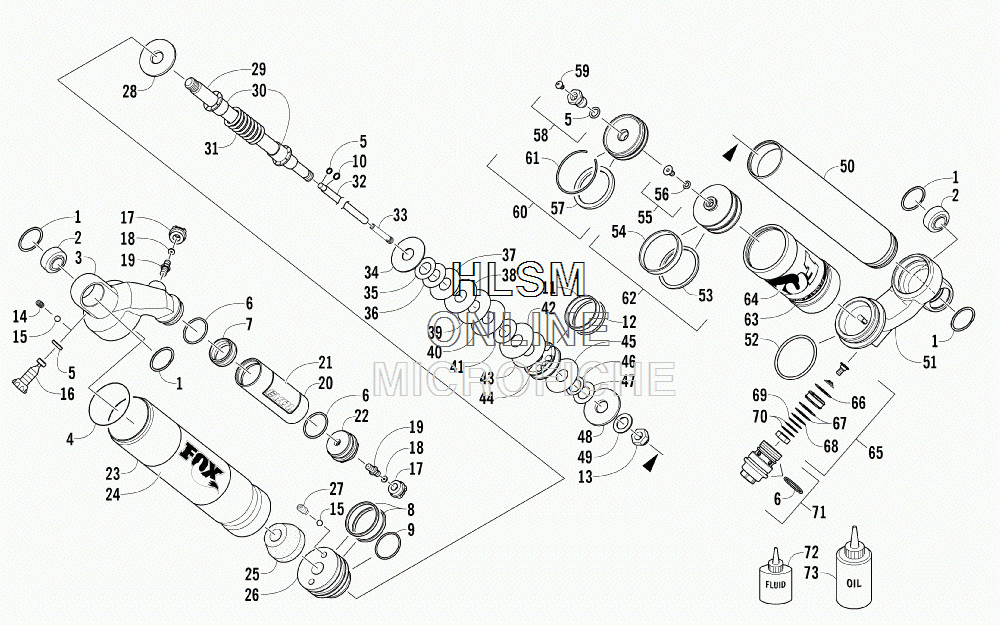

FRONT SUSPENSION SHOCK ABSORBER для Arctic Cat ZR 8000 Sno Pro RR NE OS - GREEN - INTERNTIONAL [S2014ZRHNEOSG] - 2014 года выпуска
-
№АртикулНазвание
-
-3703-088 COMPLETE SHOCK ABSORBER - RIGHTCOMPLETE SHOCK ABSORBER - RIGHT
-
-3703-089 COMPLETE SHOCK ABSORBER - LEFTCOMPLETE SHOCK ABSORBER - LEFT
-
13604-147 RING, RETAININGRING, RETAINING
-
21604-664 BEARINGBEARING
-
32603-027 END CAP, SHOCK - RIGHTEND CAP, SHOCK - RIGHT
-
32603-026 END CAP, SHOCK - LEFTEND CAP, SHOCK - LEFT
-
42603-929 KIT, SEAL/BEARING REBUILD (INC. 5-13)KIT, SEAL/BEARING REBUILD (INC. 5-13)
-
51604-318 ...O-RING-END CAP FITTING (FOX ONLY)...O-RING-END CAP FITTING (FOX ONLY)
-
62603-502 ...O-RING...O-RING
-
73604-653 ...PISTON, INTERNAL FLOATING...PISTON, INTERNAL FLOATING
-
82603-863 ...STRAP, TEFLON...STRAP, TEFLON
-
91604-420 ...O-RING...O-RING
-
103603-011 ...O-RING...O-RING
-
112603-994 ...STRAP, PISTON...STRAP, PISTON
-
123603-010 ...O-RING...O-RING
-
130603-301 ...NUT...NUT
-
142603-529 SPRINGSPRING
-
151604-315 BALL, BLEEDBALL, BLEED
-
163603-004 KNOB, DAMPING ADJUSTERKNOB, DAMPING ADJUSTER
-
172603-980 CAP, AIR VALVECAP, AIR VALVE
-
182603-965 SEALSEAL
-
192603-511 VALVE, AIRVALVE, AIR
-
203603-002 RESERVOIRRESERVOIR
-
212603-958 DECAL, RESERVOIRDECAL, RESERVOIR
-
222603-966 END CAP, RESERVOIREND CAP, RESERVOIR
-
233603-278 BODY, SHOCK - UPPERBODY, SHOCK - UPPER
-
243603-281 DECAL, SHOCKDECAL, SHOCK
-
253603-005 BUMPER, SHOCKBUMPER, SHOCK
-
262603-023 BEARING - ASSEMBLYBEARING - ASSEMBLY
-
271603-940 SCREW, SETSCREW, SET
-
283603-008 SPACERSPACER
-
292603-029 ROD, SHOCKROD, SHOCK
-
302603-522 GUIDE, SPRINGGUIDE, SPRING
-
312603-024 SPRINGSPRING
-
323603-001 ROD, DAMPING ADJUSTERROD, DAMPING ADJUSTER
-
332603-943 VALVE, CHECK - ASSEMBLYVALVE, CHECK - ASSEMBLY
-
340603-540 WASHER, TOP OUTWASHER, TOP OUT
-
350603-335 VALVE, 0.800 X 0.010 IN.VALVE, 0.800 X 0.010 IN.
-
360603-338 VALVE, 0.900 X 0.010 IN.VALVE, 0.900 X 0.010 IN.
-
370603-341 VALVE, 1.000 X 0.010 IN.VALVE, 1.000 X 0.010 IN.
-
380603-344 VALVE, 1.100 X 0.010 IN.VALVE, 1.100 X 0.010 IN.
-
390603-347 VALVE, 1.250 X 0.010 IN.VALVE, 1.250 X 0.010 IN.
-
400603-350 VALVE, 1.300 X 0.010 IN.VALVE, 1.300 X 0.010 IN.
-
410603-336 VALVE, 0.900 X 0.006 IN.VALVE, 0.900 X 0.006 IN.
-
420603-349 VALVE, 1.300 X 0.008 IN.VALVE, 1.300 X 0.008 IN.
-
430603-348 VALVE, 1.300 X 0.006 IN.VALVE, 1.300 X 0.006 IN.
-
442603-995 PISTON, 0.059 IN. - ORIFICEPISTON, 0.059 IN. - ORIFICE
-
450603-343 VALVE, 1.100 X 0.008 IN.VALVE, 1.100 X 0.008 IN.
-
463604-171 VALVE, 0.600 X 0.004 IN.VALVE, 0.600 X 0.004 IN.
-
470603-333 VALVE, 0.800 X 0.006 IN.VALVE, 0.800 X 0.006 IN.
-
483604-170 WASHER, TOP OUTWASHER, TOP OUT
-
490603-389 WASHER, BACKUPWASHER, BACKUP
-
502603-022 BODY, SHOCK - LOWERBODY, SHOCK - LOWER
-
512603-021 END CAP, SHOCK/RESERVOIREND CAP, SHOCK/RESERVOIR
-
523604-539 KIT, REBUILD - RESERVOIR (INC. ONE NO. 5-6 AND 53-59)KIT, REBUILD - RESERVOIR (INC. ONE NO. 5-6 AND 53-59)
-
531603-236 ...O-RING...O-RING
-
541603-235 ...STRAP, PISTON...STRAP, PISTON
-
551604-316 ...SCREW, MACHINE W/O-RING (INC. 56)...SCREW, MACHINE W/O-RING (INC. 56)
-
561604-425 ......O-RING (FOX ONLY)......O-RING (FOX ONLY)
-
570603-671 ...O-RING...O-RING
-
580703-341 ...VALVE, PRESSURE - ASSEMBLY (INC. ONE NO. 5)...VALVE, PRESSURE - ASSEMBLY (INC. ONE NO. 5)
-
590624-097 ...SCREW, VALVE...SCREW, VALVE
-
602603-525 END CAP, RESERVOIR (INC. ONE NO. 5 AND 57-58)END CAP, RESERVOIR (INC. ONE NO. 5 AND 57-58)
-
610604-992 RING, RETAININGRING, RETAINING
-
623604-524 PISTON, INTERNAL FLOATING (INC. 53-56)PISTON, INTERNAL FLOATING (INC. 53-56)
-
633603-279 RESERVOIRRESERVOIR
-
643603-280 DECAL, RESERVOIRDECAL, RESERVOIR
-
653603-003 PISTON, CONCENTRIC - DAMPING ADJUSTER (INC. 66-70)PISTON, CONCENTRIC - DAMPING ADJUSTER (INC. 66-70)
-
660603-331 ...VALVE, 0.700 X 0.008 IN....VALVE, 0.700 X 0.008 IN.
-
672603-501 ...VALVE, 0.700 X 0.010 IN....VALVE, 0.700 X 0.010 IN.
-
682603-500 ...VALVE, 0.600 X 0.010 IN....VALVE, 0.600 X 0.010 IN.
-
692603-499 ...VALVE, 0.500 X 0.006 IN....VALVE, 0.500 X 0.006 IN.
-
703604-165 ...PLATE, BACKUP...PLATE, BACKUP
-
712603-527 CARTRIDGE, DAMPING ADJUSTER (INC. 6)CARTRIDGE, DAMPING ADJUSTER (INC. 6)
-
724639-012 FLUID, FLOAT SHOCK - 8 OZFLUID, FLOAT SHOCK - 8 OZ
-
735639-530 OIL, SHOCK - 1 QTOIL, SHOCK - 1 QT
