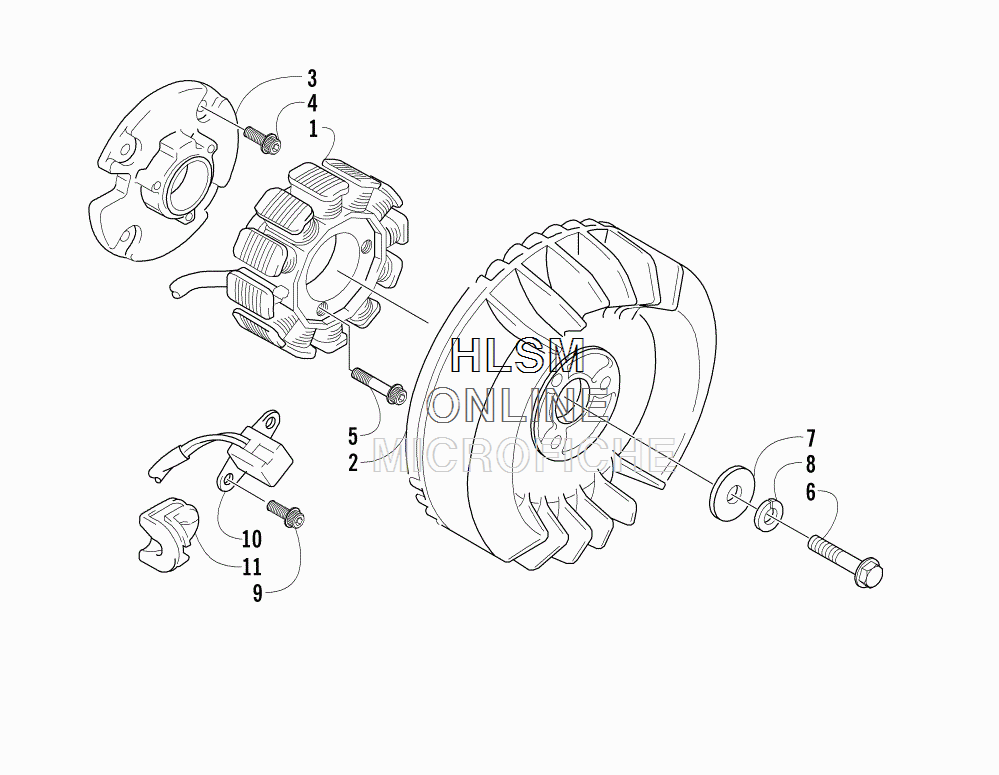

MAGNETO для Arctic Cat BEARCAT 2000 (BLUE) [S2015BCDFCUSL] - 2015 года выпуска
-
№АртикулНазвание
-
13005-636 STATOR ASSEMBLYSTATOR ASSEMBLY
-
23007-867 ROTOR/FLYWHEELROTOR/FLYWHEEL
-
33006-022 BASE, STATOR - PLATEBASE, STATOR - PLATE
-
43007-449 BOLTBOLT
-
53007-489 BOLTBOLT
-
63006-476 BOLT,M10X54BOLT,M10X54
-
73005-987 WASHERWASHER
-
83007-424 LOCK WASHERLOCK WASHER
-
93007-433 BOLTBOLT
-
103005-926 SENSOR, IGNITION TIMINGSENSOR, IGNITION TIMING
-
113006-531 GROMMETGROMMET
