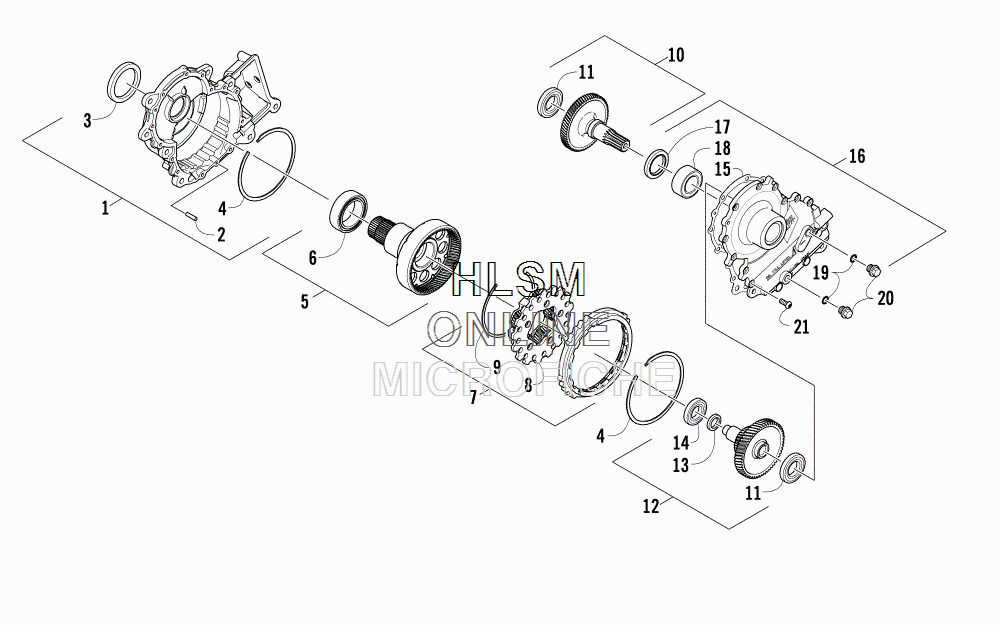

GEARCASE ASSEMBLY для Arctic Cat BEARCAT 2000 XT (INTERNATIONAL) (ORANGE) [S2015BCDWTOSO] - 2015 года выпуска

№

Артикул

Название
-

1702-135 GEARCASE ASSEMBLY

GEARCASE ASSEMBLY

240 ₽
1

0702-994 HOUSING, GEARCASE (INC. 2-3 AND ONE NO. 4)

HOUSING, GEARCASE (INC. 2-3 AND ONE NO. 4)

41 800 ₽
2

1602-915 ...PIN, DOWEL

...PIN, DOWEL

380 ₽
3

2602-159 ...SEAL,OIL-PRE LUBE-(50 X 65 X 8MM)

...SEAL,OIL-PRE LUBE-(50 X 65 X 8MM)

3 740 ₽
4

2602-151 ...RING, RETAINING

...RING, RETAINING

2 070 ₽
5

1702-012 GEAR, RING (INC. 6)

GEAR, RING (INC. 6)

41 180 ₽
6

1602-980 ...BEARING,(50MMX72MMX20MM)-PEER

...BEARING,(50MMX72MMX20MM)-PEER

6 860 ₽
7

1702-013 GEAR, PLANETARY - ASSEMBLY (INC. 8-9)

GEAR, PLANETARY - ASSEMBLY (INC. 8-9)

49 500 ₽
8

1602-349 ...GEAR, PLANETARY

...GEAR, PLANETARY

38 470 ₽
9

2602-257 ...RING, RETAINING

...RING, RETAINING

770 ₽
10

0702-686 SHAFT, INPUT - 54T (INC. ONE NO. 11)

SHAFT, INPUT - 54T (INC. ONE NO. 11)

25 990 ₽
11

1602-981 ......BEARING

......BEARING

2 700 ₽
12

1702-116 GEAR, TRANSFER - 66T/34T - ASSEMBLY (INC. ONE NO. 11 AND 13-14)

GEAR, TRANSFER - 66T/34T - ASSEMBLY (INC. ONE NO. 11 AND 13-14)

42 220 ₽
13

2602-259 ...SPACER

...SPACER

400 ₽
14

2602-108 ...BEARING,TRANSFER GEAR-(17MM)- PEER

...BEARING,TRANSFER GEAR-(17MM)- PEER

1 240 ₽
15

2602-184 GASKET, GEARCASE

GASKET, GEARCASE

2 490 ₽
16

0702-996 COVER, GEARCASE (INC. 17-20)

COVER, GEARCASE (INC. 17-20)

34 520 ₽
17

2602-160 ...SEAL,OIL-PRE LUBE-2.099 X 1.311 X .315

...SEAL,OIL-PRE LUBE-2.099 X 1.311 X .315

3 530 ₽
18

1602-982 ...BEARING

...BEARING

5 190 ₽
19

1602-213 ...O-RING

...O-RING

60 ₽
20

2602-099 ...PLUG, DRAIN

...PLUG, DRAIN

2 070 ₽
21

0423-538 SCREW, SELF-TAPPING

SCREW, SELF-TAPPING

110 ₽
-

5639-219 FLUID, GEARCASE - (15 OZ)(NOT ILLUSTRATED)

FLUID, GEARCASE - (15 OZ)(NOT ILLUSTRATED)

2 910 ₽
