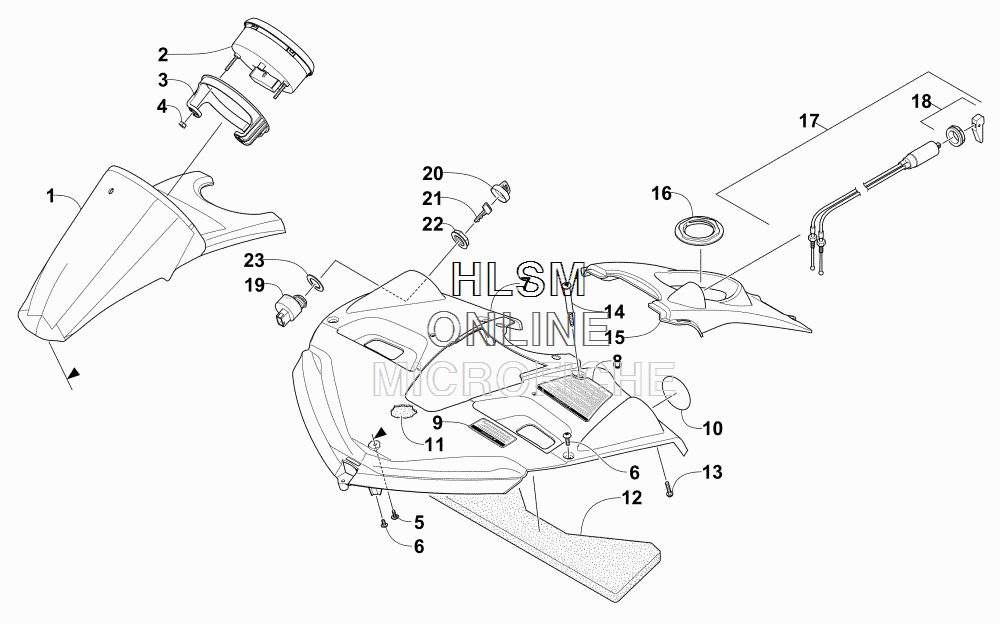

CONSOLE ASSEMBLY для Arctic Cat BEARCAT 2000 XT (RUSSIAN) (ORANGE) [S2015BCDWTRUO] - 2015 года выпуска
-
№АртикулНазвание
-
14706-836 HOUSING, SPEEDOMETER/TACHOMETERHOUSING, SPEEDOMETER/TACHOMETER
-
20620-364 SPEEDOMETER/TACHOMETERSPEEDOMETER/TACHOMETER
-
30620-322 BRACKET, RETAININGBRACKET, RETAINING
-
40423-493 NUT W/WASHERNUT W/WASHER
-
51623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
61623-618 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
74718-554 CONSOLE - BLACK (INC. 8-10)CONSOLE - BLACK (INC. 8-10)
-
82621-286 ...DECAL, WARNING - RUSSIAN...DECAL, WARNING - RUSSIAN
-
92621-287 ...DECAL, CAUTION - RUSSIAN...DECAL, CAUTION - RUSSIAN
-
101411-798 ...DECAL, STEERING WHEEL...DECAL, STEERING WHEEL
-
110617-558 FOAM, CONSOLE - FRONTFOAM, CONSOLE - FRONT
-
120617-559 FOAM, CONSOLE - REARFOAM, CONSOLE - REAR
-
130623-785 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
141623-669 SCREW, SHOULDER - TSTRH M6 X 1.0 X 80MMSCREW, SHOULDER - TSTRH M6 X 1.0 X 80MM
-
155606-658 CLOSE-OFF, HANDLEBARCLOSE-OFF, HANDLEBAR
-
166606-011 NUT, RETAININGNUT, RETAINING
-
170687-208 CABLE, CHOKE (INC. 18)CABLE, CHOKE (INC. 18)
-
180687-219 ...KIT,CHOKE LEVER- 08 570...KIT,CHOKE LEVER- 08 570
-
190609-910 SWITCH, IGNITION (INC. 20-22)SWITCH, IGNITION (INC. 20-22)
-
200430-054 ...COVER, KEY...COVER, KEY
-
210430-042 ...KEY, IGNITION - (Y SERIES - LEFT-SIDE CUT)...KEY, IGNITION - (Y SERIES - LEFT-SIDE CUT)
-
210430-043 ...KEY, IGNITION - (Z SERIES - RIGHT-SIDE CUT)...KEY, IGNITION - (Z SERIES - RIGHT-SIDE CUT)
-
220430-050 ...NUT, FLANGE - IGNITION SWITCH...NUT, FLANGE - IGNITION SWITCH
-
230630-264 WASHERWASHER
