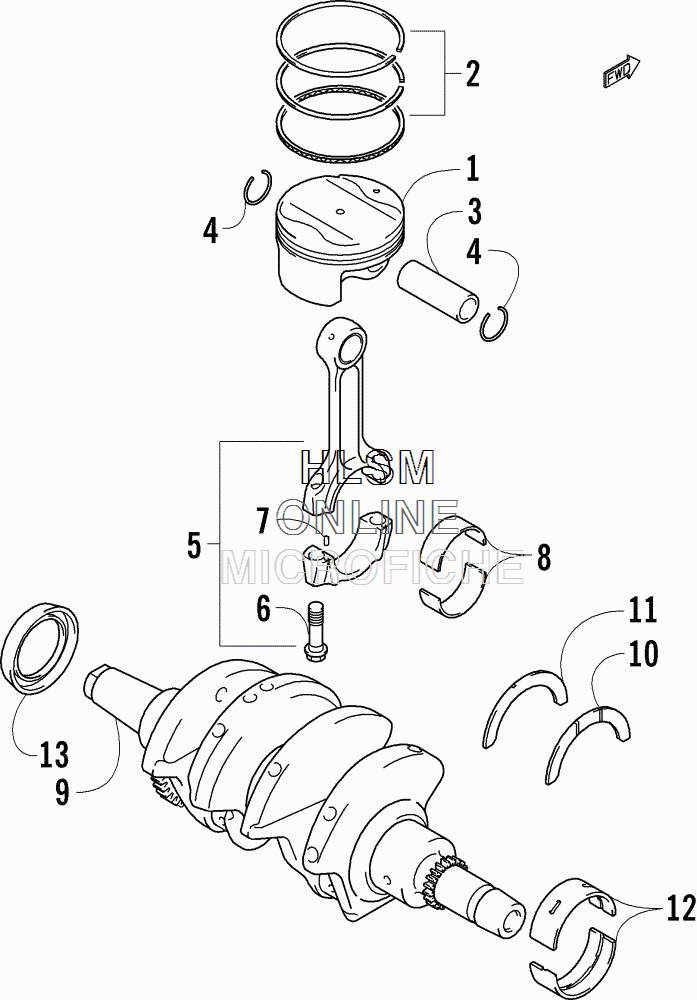

PISTON AND CRANKSHAFT ASSEMBLY для Arctic Cat BEARCAT 5000 XT GS (INTERNATIONAL) (ORANGE) [S2015BCNWGOSO] - 2015 года выпуска
-
№АртикулНазвание
-
13007-103 PISTONPISTON
-
23007-104 RING SET, PISTONRING SET, PISTON
-
33007-105 PIN, PISTONPIN, PISTON
-
43008-529 CIRCLIP, PISTONCIRCLIP, PISTON
-
53007-106 CONNECTING ROD - ASSEMBLY (INC. 6-7)CONNECTING ROD - ASSEMBLY (INC. 6-7)
-
63007-107 ...SCREW, CAP...SCREW, CAP
-
73007-108 ...PIN, ALIGNMENT...PIN, ALIGNMENT
-
83007-109 BEARING, CRANKSHAFT - (GREEN)BEARING, CRANKSHAFT - (GREEN)
-
83007-110 BEARING, CRANKSHAFT - (BLACK)BEARING, CRANKSHAFT - (BLACK)
-
83007-111 BEARING, CRANKSHAFT - (BROWN)BEARING, CRANKSHAFT - (BROWN)
-
83007-112 BEARING, CRANKSHAFT - (YELLOW)BEARING, CRANKSHAFT - (YELLOW)
-
93007-113 CRANKSHAFTCRANKSHAFT
-
103007-114 BEARING, THRUST - (GREEN)BEARING, THRUST - (GREEN)
-
113007-114 BEARING, THRUST - (GREEN)BEARING, THRUST - (GREEN)
-
113007-115 BEARING, THRUST - (RED)BEARING, THRUST - (RED)
-
113007-116 BEARING, THRUST - (BLACK)BEARING, THRUST - (BLACK)
-
113007-117 BEARING, THRUST - (BLUE)BEARING, THRUST - (BLUE)
-
113007-119 BEARING, THRUST - (YELLOW)BEARING, THRUST - (YELLOW)
-
113007-120 BEARING, THRUST - (WHITE)BEARING, THRUST - (WHITE)
-
123007-121 BEARING, CRANKSHAFT - (GREEN)BEARING, CRANKSHAFT - (GREEN)
-
123007-122 BEARING, CRANKSHAFT - (BLACK)BEARING, CRANKSHAFT - (BLACK)
-
123007-123 BEARING, CRANKSHAFT - (BROWN)BEARING, CRANKSHAFT - (BROWN)
-
133007-124 SEAL, OILSEAL, OIL
