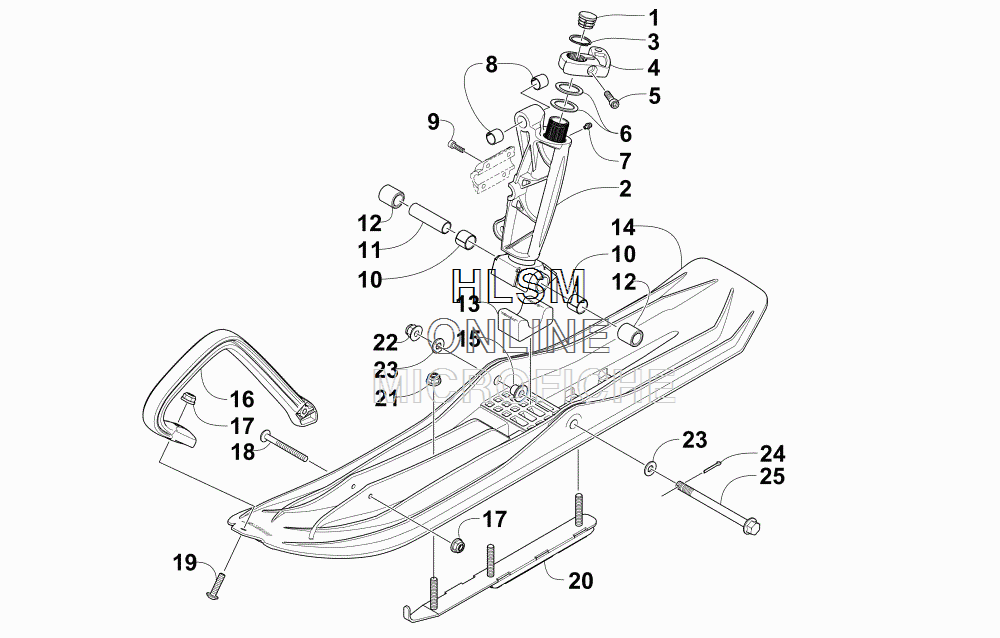

SKI AND SPINDLE ASSEMBLY для Arctic Cat BEARCAT 5000 XT LTD (RUSSIAN) (BLACK) [S2015BCNWLRUB] - 2015 года выпуска
-
№АртикулНазвание
-
10623-831 CAP, SPINDLECAP, SPINDLE
-
22703-372 SPINDLE, STEERING - RIGHT - (BLACK) (INC. 3-10)SPINDLE, STEERING - RIGHT - (BLACK) (INC. 3-10)
-
44706-116 ...ARM,SPINDLE-RIGHT-PLAT...ARM,SPINDLE-RIGHT-PLAT
-
22703-373 SPINDLE, STEERING - LEFT - (BLACK) (INC. 3-10)SPINDLE, STEERING - LEFT - (BLACK) (INC. 3-10)
-
30623-796 ...RING, RETAINING...RING, RETAINING
-
44706-117 ...ARM,SPINDLE-LEFT-PLAT...ARM,SPINDLE-LEFT-PLAT
-
50623-872 ...SCREW, CAP...SCREW, CAP
-
62603-382 ...WASHER, THRUST...WASHER, THRUST
-
71623-654 ...FITTING, GREASE - 1/4-28 STR-THREAD FORMING...FITTING, GREASE - 1/4-28 STR-THREAD FORMING
-
81603-895 ...BEARING...BEARING
-
91623-582 ...SCREW, CAP...SCREW, CAP
-
100603-158 ...BEARING...BEARING
-
112603-730 AXLE, SPINDLEAXLE, SPINDLE
-
122603-731 SPACERSPACER
-
130603-036 DAMPER, SKIDAMPER, SKI
-
142603-729 SKI, PLASTIC - (BLACK)SKI, PLASTIC - (BLACK)
-
152603-746 INSERTINSERT
-
162603-950 HANDLE, PLASTIC - (BLACK)HANDLE, PLASTIC - (BLACK)
-
178427-602 NUT, LOCKNUT, LOCK
-
188476-650 SCREW, MACHINESCREW, MACHINE
-
198476-630 SCREW, MACHINESCREW, MACHINE
-
202703-599 SKAG,SPLIT-LEFT-4"-3 BOLT-3.12"-PTD (BLACK)SKAG,SPLIT-LEFT-4"-3 BOLT-3.12"-PTD (BLACK)
-
202703-598 SKAG,SPLIT-RIGHT-4"-3 BOLT-.312"-PTD (BLACK)SKAG,SPLIT-RIGHT-4"-3 BOLT-.312"-PTD (BLACK)
-
218047-486 NUT, LOCKNUT, LOCK
-
220423-744 NUT, LOCKNUT, LOCK
-
238050-282 WASHERWASHER
-
240123-458 PIN, COTTERPIN, COTTER
-
251623-718 SCREW, CAPSCREW, CAP
