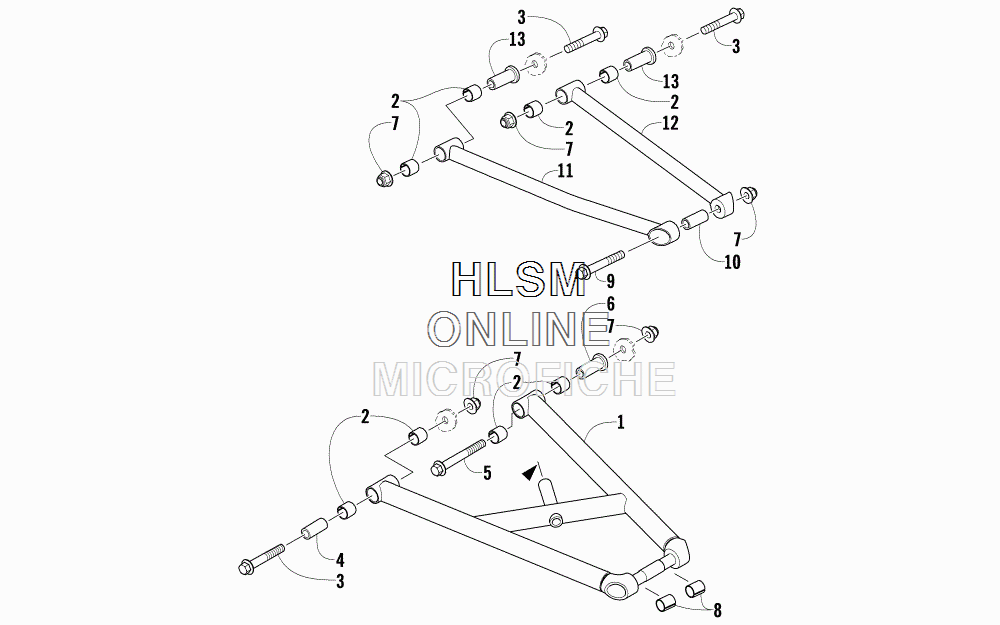

A-ARM ASSEMBLY для Arctic Cat BEARCAT 5000 XT (RUSSIAN) (BLUE) [S2015BCNWTRUL] - 2015 года выпуска
-
№АртикулНазвание
-
12703-334 A-ARM, LOWER BLACK (INC. EIGHT NO. 2)A-ARM, LOWER BLACK (INC. EIGHT NO. 2)
-
21603-895 ..BEARING..BEARING
-
38408-070 SCREW, CAPSCREW, CAP
-
42603-544 AXLE, INNER - LOWER A-ARM - FRONTAXLE, INNER - LOWER A-ARM - FRONT
-
58408-090 SCREW, CAPSCREW, CAP
-
62603-543 AXLE, LOWER A-ARM - REARAXLE, LOWER A-ARM - REAR
-
78427-002 NUT, LOCKNUT, LOCK
-
82603-577 BEARING, SPLITBEARING, SPLIT
-
98408-065 SCREW, CAPSCREW, CAP
-
102603-643 AXLE, SPINDLEAXLE, SPINDLE
-
112703-328 A-ARM, UPPER - FRONT BLACK (INC. FOUR NO. 2)A-ARM, UPPER - FRONT BLACK (INC. FOUR NO. 2)
-
122703-329 A-ARM, UPPER - REAR BLACK (INC. FOUR NO. 2)A-ARM, UPPER - REAR BLACK (INC. FOUR NO. 2)
-
132603-634 AXLE, INNER - UPPER A-ARMAXLE, INNER - UPPER A-ARM
