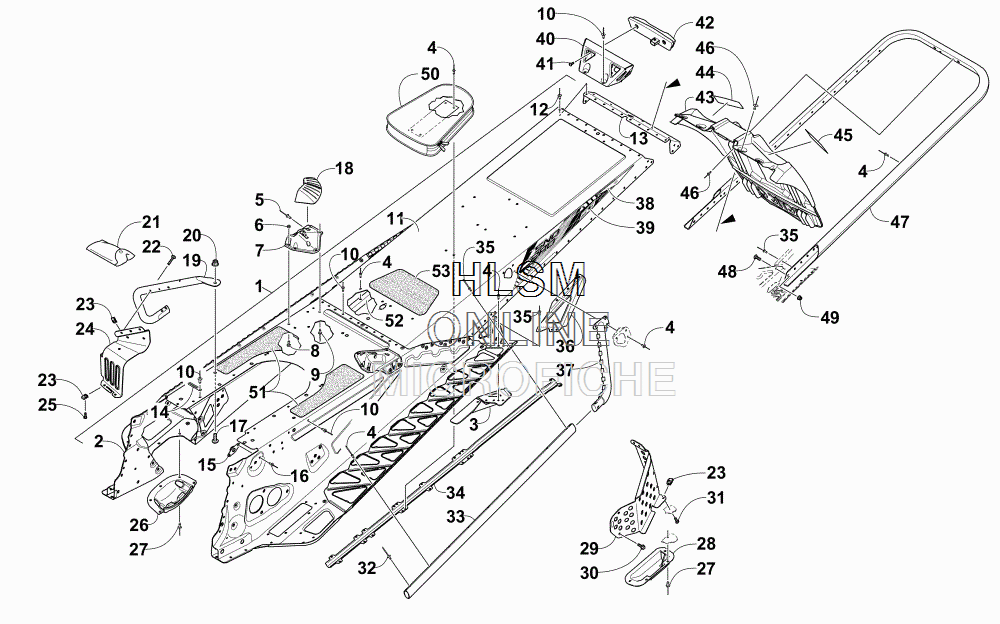

TUNNEL- REAR BUMPER- AND SNOWFLAP ASSEMBLY для Arctic Cat M 7000 SNO PRO (INTERNATIONAL) (GREEN) [S2015M7USPOSG] - 2015 года выпуска
-
№АртикулНазвание
-
-2707-256 COMPLETE CHASSIS ASSEMBLY - BLACKCOMPLETE CHASSIS ASSEMBLY - BLACK
-
12707-427 TUNNEL ASSEMBLY - BLACK (INC. 2-13)TUNNEL ASSEMBLY - BLACK (INC. 2-13)
-
22707-378 ...TUNNEL, FRONT - ASSEMBLY - BLACK (INC. 3-4)...TUNNEL, FRONT - ASSEMBLY - BLACK (INC. 3-4)
-
32707-286 ......BRACKET, MOUNTING - SUSPENSION - RIGHT - BLACK......BRACKET, MOUNTING - SUSPENSION - RIGHT - BLACK
-
32707-287 ......BRACKET, MOUNTING - SUSPENSION - LEFT - BLACK......BRACKET, MOUNTING - SUSPENSION - LEFT - BLACK
-
48060-706 ......RIVET......RIVET
-
51623-206 ...RIVET...RIVET
-
68422-502 ...NUT, LOCK...NUT, LOCK
-
71707-692 ...BRACKET, MOUNTING - REAR SPAR - RIGHT - BLACK...BRACKET, MOUNTING - REAR SPAR - RIGHT - BLACK
-
71707-693 ...BRACKET, MOUNTING - REAR SPAR - LEFT - BLACK...BRACKET, MOUNTING - REAR SPAR - LEFT - BLACK
-
88476-512 ...SCREW, MACHINE...SCREW, MACHINE
-
91623-257 ...RIVET...RIVET
-
108060-702 ...RIVET...RIVET
-
112707-425 ...TUNNEL, REAR - BLACK...TUNNEL, REAR - BLACK
-
128060-504 ...RIVET...RIVET
-
131707-725 ...END CAP, TUNNEL - BLACK...END CAP, TUNNEL - BLACK
-
141623-984 CLAMP, WIRE - 76.14MM LG W/6.25 HOLECLAMP, WIRE - 76.14MM LG W/6.25 HOLE
-
150608-631 PLATE, RETAININGPLATE, RETAINING
-
168060-708 RIVETRIVET
-
178476-820 SCREW, MACHINESCREW, MACHINE
-
186606-664 SUPPORT, GAS TANK - RIGHTSUPPORT, GAS TANK - RIGHT
-
186606-665 SUPPORT, GAS TANK - LEFTSUPPORT, GAS TANK - LEFT
-
191707-454 SUPPORT, FOOTREST - RIGHT - BLACKSUPPORT, FOOTREST - RIGHT - BLACK
-
191707-455 SUPPORT, FOOTREST - LEFT - BLACKSUPPORT, FOOTREST - LEFT - BLACK
-
208427-802 NUT, LOCKNUT, LOCK
-
210744-064 KIT, TOOLKIT, TOOL
-
228468-535 SCREW, MACHINESCREW, MACHINE
-
231623-637 CLIP, U-NUTCLIP, U-NUT
-
241707-556 FOOTREST - RIGHT - BLACKFOOTREST - RIGHT - BLACK
-
241707-557 FOOTREST - LEFT - BLACKFOOTREST - LEFT - BLACK
-
258470-516 SCREW, MACHINESCREW, MACHINE
-
261607-109 PROTECTOR, CHAIN CASEPROTECTOR, CHAIN CASE
-
278061-708 RIVETRIVET
-
280607-351 PROTECTOR, BRAKE DISCPROTECTOR, BRAKE DISC
-
292707-044 SHIELD, BRAKE DISC - BLACKSHIELD, BRAKE DISC - BLACK
-
308408-613 SCREW, CAPSCREW, CAP
-
318470-520 SCREW, MACHINESCREW, MACHINE
-
321623-130 RIVETRIVET
-
331707-697 ROLL, TUNNEL - BLACKROLL, TUNNEL - BLACK
-
340630-317 PROTECTOR, HARNESS - TAILLIGHT EXTENSIONPROTECTOR, HARNESS - TAILLIGHT EXTENSION
-
351623-241 RIVETRIVET
-
362707-288 GUSSET, RUNNING BOARD - RIGHT - BLACKGUSSET, RUNNING BOARD - RIGHT - BLACK
-
362707-289 GUSSET, RUNNING BOARD - LEFT - BLACKGUSSET, RUNNING BOARD - LEFT - BLACK
-
371707-700 GUSSET, TUNNEL ROLL - RIGHT - BLACKGUSSET, TUNNEL ROLL - RIGHT - BLACK
-
371707-701 GUSSET, TUNNEL ROLL - LEFT - BLACKGUSSET, TUNNEL ROLL - LEFT - BLACK
-
380621-990 DECAL, REFLECTOR - REDDECAL, REFLECTOR - RED
-
391621-432 DECAL, TUNNEL - RIGHTDECAL, TUNNEL - RIGHT
-
391621-433 DECAL, TUNNEL - LEFTDECAL, TUNNEL - LEFT
-
400730-227 BRACKET, MOUNTING - TAILLIGHT - BLACKBRACKET, MOUNTING - TAILLIGHT - BLACK
-
418470-510 SCREW, MACHINESCREW, MACHINE
-
420609-898 TAILLIGHT, LEDTAILLIGHT, LED
-
436606-394 SNOWFLAPSNOWFLAP
-
445611-852 DECAL, WARNING - TOWING (FRENCH)DECAL, WARNING - TOWING (FRENCH)
-
455611-853 DECAL, WARNING - TOWING (ENGLISH)DECAL, WARNING - TOWING (ENGLISH)
-
468061-706 RIVETRIVET
-
472707-592 BUMPER, REAR - 153" - PAINTED TEAM ARCTIC GREENBUMPER, REAR - 153" - PAINTED TEAM ARCTIC GREEN
-
488476-620 SCREW, MACHINESCREW, MACHINE
-
498427-602 NUT, LOCKNUT, LOCK
-
506606-615 BAG, BELTBAG, BELT
-
516606-814 PAD, FUEL TANK - RIGHTPAD, FUEL TANK - RIGHT
-
516606-815 PAD, FUEL TANK - LEFTPAD, FUEL TANK - LEFT
-
521607-457 PROTECTOR, TUNNELPROTECTOR, TUNNEL
-
536606-816 PAD, FUEL TANK - CENTERPAD, FUEL TANK - CENTER
