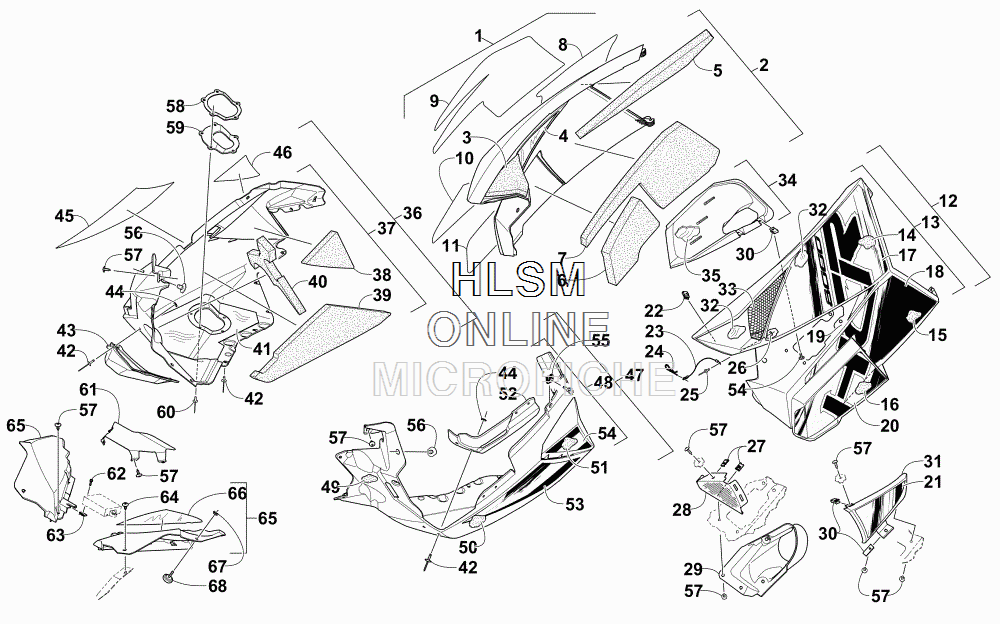

SKID PLATE AND SIDE PANEL ASSEMBLY для Arctic Cat M 8000 HCR 153 (GREEN) [S2015M8HHCUSG] - 2015 года выпуска
-
№АртикулНазвание
-
14718-196 PANEL, SIDE W/DECALS - RIGHT - (GREEN) (INC. 2-11)PANEL, SIDE W/DECALS - RIGHT - (GREEN) (INC. 2-11)
-
23718-858 ...PANEL, SIDE W/O DECALS - RIGHT - (TEAM ARCTIC GREEN) (INC. 3-7)...PANEL, SIDE W/O DECALS - RIGHT - (TEAM ARCTIC GREEN) (INC. 3-7)
-
30617-626 ......FOAM, SIDE PANEL - UPPER FRONT - RIGHT......FOAM, SIDE PANEL - UPPER FRONT - RIGHT
-
46606-414 ......FOIL, PROTECTIVE......FOIL, PROTECTIVE
-
50617-628 ......FOAM, SIDE PANEL - UPPER REAR - RIGHT......FOAM, SIDE PANEL - UPPER REAR - RIGHT
-
60617-632 ......FOAM, SIDE PANEL - LOWER FRONT - RIGHT......FOAM, SIDE PANEL - LOWER FRONT - RIGHT
-
70617-634 ......FOAM, SIDE PANEL - LOWER REAR - RIGHT......FOAM, SIDE PANEL - LOWER REAR - RIGHT
-
81621-534 ...DECAL, SIDE PANEL - UPPER - RIGHT...DECAL, SIDE PANEL - UPPER - RIGHT
-
91621-542 ...DECAL, SIDE PANEL - LOWER REAR - RIGHT...DECAL, SIDE PANEL - LOWER REAR - RIGHT
-
101621-540 ...DECAL, SIDE PANEL - CENTER - RIGHT...DECAL, SIDE PANEL - CENTER - RIGHT
-
111621-538 ...DECAL, SIDE PANEL - LOWER FRONT - RIGHT...DECAL, SIDE PANEL - LOWER FRONT - RIGHT
-
124718-197 PANEL, SIDE W/DECALS - LEFT - (GREEN) (INC. 13-21)PANEL, SIDE W/DECALS - LEFT - (GREEN) (INC. 13-21)
-
134718-577 ...PANEL, SIDE W/O DECALS - LEFT - (TEAM ARCTIC GREEN) (INC. 14-16)...PANEL, SIDE W/O DECALS - LEFT - (TEAM ARCTIC GREEN) (INC. 14-16)
-
140617-629 ......FOAM, SIDE PANEL - UPPER REAR - LEFT......FOAM, SIDE PANEL - UPPER REAR - LEFT
-
150617-635 ......FOAM, SIDE PANEL - LOWER REAR - LEFT......FOAM, SIDE PANEL - LOWER REAR - LEFT
-
160617-681 ......FOAM, SIDE PANEL - LOWER FRONT - LEFT......FOAM, SIDE PANEL - LOWER FRONT - LEFT
-
171621-535 ...DECAL, SIDE PANEL - UPPER - LEFT...DECAL, SIDE PANEL - UPPER - LEFT
-
181621-543 ...DECAL, SIDE PANEL - LOWER REAR - LEFT...DECAL, SIDE PANEL - LOWER REAR - LEFT
-
191621-539 ...DECAL, SIDE PANEL - LOWER FRONT - LEFT...DECAL, SIDE PANEL - LOWER FRONT - LEFT
-
201621-541 ...DECAL, SIDE PANEL - CENTER - LEFT...DECAL, SIDE PANEL - CENTER - LEFT
-
212621-307 ...DECAL, SIDE PANEL - CENTER VENT - LEFT...DECAL, SIDE PANEL - CENTER VENT - LEFT
-
221623-637 CLIP, U-NUTCLIP, U-NUT
-
230607-447 CABLE,5"-HAIRPINCABLE,5"-HAIRPIN
-
240605-283 CLIP, HAIRPINCLIP, HAIRPIN
-
258060-486 RIVET, BLIND-DH SS54 ZINCRIVET, BLIND-DH SS54 ZINC
-
268050-127 WASHER,FLAT- #8 X .375 X .049 Z & YWASHER,FLAT- #8 X .375 X .049 Z & Y
-
271623-052 CLIP, U-NUTCLIP, U-NUT
-
286606-925 SCREEN, INTAKESCREEN, INTAKE
-
292602-794 DUCT, INTAKE - INNERDUCT, INTAKE - INNER
-
301623-030 NUT,SPEED-#10B U TYPENUT,SPEED-#10B U TYPE
-
312602-801 DUCT, INTAKE - OUTER - (TEAM ARCTIC GREEN)DUCT, INTAKE - OUTER - (TEAM ARCTIC GREEN)
-
320619-206 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
335706-531 SCREEN, INTAKESCREEN, INTAKE
-
341702-369 DUCT, AIR - CLUTCH (INC. 35)DUCT, AIR - CLUTCH (INC. 35)
-
356606-694 ...FOIL, PROTECTIVE...FOIL, PROTECTIVE
-
364718-198 PLATE, SKID W/DECALS - RIGHT - (BLACK) (INC. 37-46)PLATE, SKID W/DECALS - RIGHT - (BLACK) (INC. 37-46)
-
373718-422 ...PLATE, SKID W/O DECALS - RIGHT - (BLACK) (INC. 38-44)...PLATE, SKID W/O DECALS - RIGHT - (BLACK) (INC. 38-44)
-
380617-640 ......FOAM, SKID PLATE - UPPER REAR - RIGHT......FOAM, SKID PLATE - UPPER REAR - RIGHT
-
390617-638 ......FOAM, SKID PLATE - CENTER FRONT - RIGHT......FOAM, SKID PLATE - CENTER FRONT - RIGHT
-
400617-636 ......FOAM, SKID PLATE - UPPER FRONT - RIGHT......FOAM, SKID PLATE - UPPER FRONT - RIGHT
-
412612-850 ......FOIL, PROTECTIVE......FOIL, PROTECTIVE
-
428061-708 ......RIVET, BLIND-LF SS66 (BLACK)......RIVET, BLIND-LF SS66 (BLACK)
-
432612-754 ......DEFLECTOR, HEAT......DEFLECTOR, HEAT
-
440123-802 ......WASHER,FLAT .194X.50X.048......WASHER,FLAT .194X.50X.048
-
451621-544 ...DECAL, SKID PLATE - FRONT - RIGHT...DECAL, SKID PLATE - FRONT - RIGHT
-
461621-546 ...DECAL, SKID PLATE - REAR - RIGHT...DECAL, SKID PLATE - REAR - RIGHT
-
474718-199 PLATE, SKID W/DECALS - LEFT - (BLACK) (INC. 48-54)PLATE, SKID W/DECALS - LEFT - (BLACK) (INC. 48-54)
-
483718-789 ...PLATE, SKID W/O DECALS - LEFT - (BLACK) (INC. 49-52)...PLATE, SKID W/O DECALS - LEFT - (BLACK) (INC. 49-52)
-
490617-637 ......FOAM, SKID PLATE - UPPER FRONT - LEFT......FOAM, SKID PLATE - UPPER FRONT - LEFT
-
500617-639 ......FOAM, SKID PLATE - CENTER FRONT - LEFT......FOAM, SKID PLATE - CENTER FRONT - LEFT
-
510617-641 ......FOAM, SKID PLATE - UPPER REAR - LEFT......FOAM, SKID PLATE - UPPER REAR - LEFT
-
526606-613 ......PANEL, REINFORCEMENT......PANEL, REINFORCEMENT
-
531621-545 ...DECAL, SKID PLATE - FRONT - LEFT...DECAL, SKID PLATE - FRONT - LEFT
-
541621-547 ...DECAL, SKID PLATE - REAR - LEFT...DECAL, SKID PLATE - REAR - LEFT
-
552623-005 CLIP,RECEPTACLE-1/4 TURN STUDCLIP,RECEPTACLE-1/4 TURN STUD
-
566606-592 PIN,RETAINER-BODY PLASTICPIN,RETAINER-BODY PLASTIC
-
571623-129 SCREW,SELF TAP-TXSTRH #10-12X5/8 TP A BLSCREW,SELF TAP-TXSTRH #10-12X5/8 TP A BL
-
582612-796 PLATE, EXHAUST OUTLETPLATE, EXHAUST OUTLET
-
592612-795 SEAL, EXHAUST OUTLET 2 STROKESEAL, EXHAUST OUTLET 2 STROKE
-
608061-710 RIVET, BLIND - LARGE FLANGE - SS68 - (BLACK)RIVET, BLIND - LARGE FLANGE - SS68 - (BLACK)
-
616606-295 SHIELD, HEAT - ECMSHIELD, HEAT - ECM
-
628408-620 SCREW,CAP-HFH M6X1.0X20 CL8.8 Z & YSCREW,CAP-HFH M6X1.0X20 CL8.8 Z & Y
-
630423-031 NUT,SPEED M6 X 1.0 U-TYPENUT,SPEED M6 X 1.0 U-TYPE
-
640623-784 SCREW,SELF TAP-TSTRH #10-12X3/4 TP A (BLACK)SCREW,SELF TAP-TSTRH #10-12X3/4 TP A (BLACK)
-
656606-342 FASCIA, FRONT - RIGHT - (BLACK)FASCIA, FRONT - RIGHT - (BLACK)
-
653718-303 FASCIA, FRONT - LEFT - (BLACK) (INC. 66)FASCIA, FRONT - LEFT - (BLACK) (INC. 66)
-
666606-405 ...FOIL, PROTECTIVE...FOIL, PROTECTIVE
-
672623-001 RETAINER,PUSHNUT-3/16" STUDRETAINER,PUSHNUT-3/16" STUD
-
681623-999 SCREW, THUMBSCREW, THUMB
