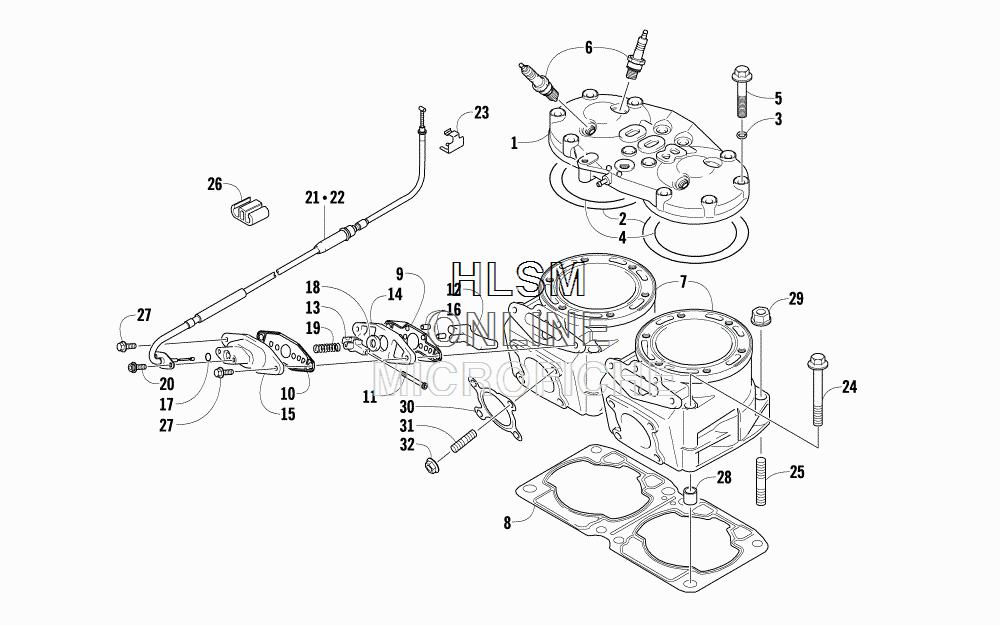

CYLINDER AND HEAD ASSEMBLY для Arctic Cat M 8000 MCCLURE LTD 153 (INTERNATIONAL) (ORANGE) [S2015M8HDMOSO] - 2015 года выпуска
![](/wa-data/public/shop/sheme/arctic-cat/snow/b7bd39d6-7fb8-4863-bfcd-ecf9d87dfe20.gif)
-
№АртикулНазвание
-
13007-873 HEAD, CYLINDERHEAD, CYLINDER
-
23004-081 O-RING,HEAD-OUTERO-RING,HEAD-OUTER
-
33003-227 O-RING, CYLINDER HEAD BOLTO-RING, CYLINDER HEAD BOLT
-
43005-854 O-RINGO-RING
-
53006-538 BOLT,CYLINDER HEADBOLT,CYLINDER HEAD
-
60217-709 PLUG, SPARK (BR9EYA)PLUG, SPARK (BR9EYA)
-
73007-849 CYLINDERCYLINDER
-
83007-874 GASKET, CYLINDERGASKET, CYLINDER
-
93007-705 GASKET,EXHAUST VALVE CASEGASKET,EXHAUST VALVE CASE
-
103006-436 GASKET, EXHAUST VALVE COVERGASKET, EXHAUST VALVE COVER
-
113005-983 PIN, EXHAUST VALVEPIN, EXHAUST VALVE
-
123007-875 VALVE, EXHAUSTVALVE, EXHAUST
-
133005-860 STOPPER, EXHAUST VALVESTOPPER, EXHAUST VALVE
-
143006-495 PLATE, EXHAUST VALVEPLATE, EXHAUST VALVE
-
153006-425 COVER, EXHAUST VALVECOVER, EXHAUST VALVE
-
163006-321 PIN, DOWELPIN, DOWEL
-
173005-226 O RING, WATER DRAINO RING, WATER DRAIN
-
183007-731 SEAL,EXHAUST VALVE OILSEAL,EXHAUST VALVE OIL
-
193006-484 SPRINGSPRING
-
203007-433 BOLTBOLT
-
213007-456 CABLE, EXHAUST VALVE - MAGCABLE, EXHAUST VALVE - MAG
-
223007-455 CABLE, EXHAUST VALVE - PTOCABLE, EXHAUST VALVE - PTO
-
233005-747 HOLDER, EXHAUST VALVE CABLEHOLDER, EXHAUST VALVE CABLE
-
243007-525 BOLT (10X115)BOLT (10X115)
-
253005-847 BOLT, STUDBOLT, STUD
-
263005-808 CLAMP, EXHAUST VALVE CABLECLAMP, EXHAUST VALVE CABLE
-
273007-434 SCREW, CAPSCREW, CAP
-
283004-975 PIN, CYLINDER KNOCK (ALIGNMENT)PIN, CYLINDER KNOCK (ALIGNMENT)
-
293007-391 NUT,INTER COOLER BRACKETNUT,INTER COOLER BRACKET
-
303007-889 GASKET, EXHAUSTGASKET, EXHAUST
-
313007-415 STUD BOLTSTUD BOLT
-
323007-390 NUT,INTER COOLERNUT,INTER COOLER
-
-5639-520 GASKET SET (NOT ILLUSTRATED)GASKET SET (NOT ILLUSTRATED)
