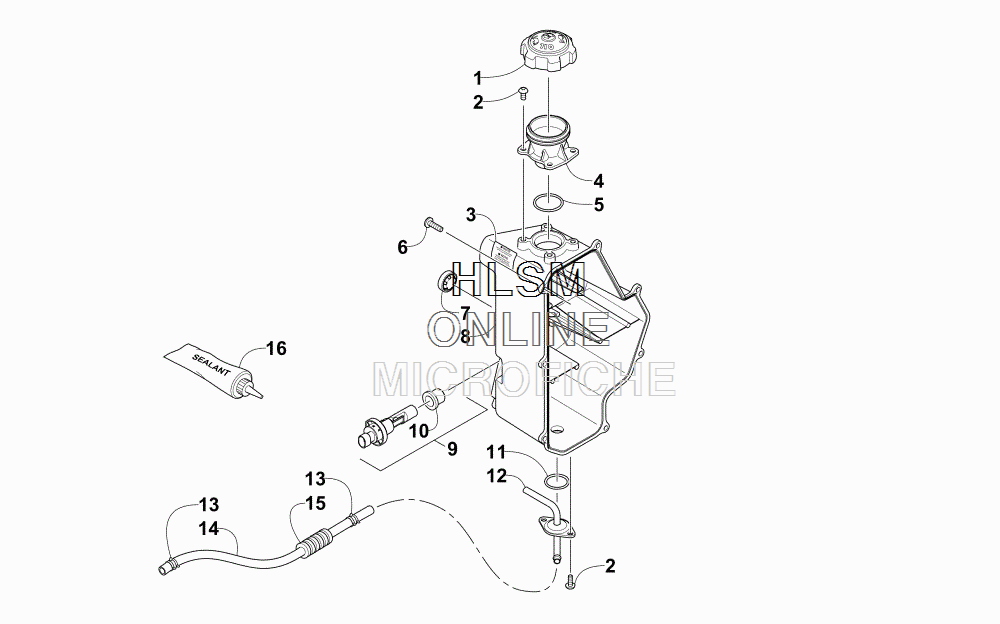

OIL TANK ASSEMBLY для Arctic Cat M 8000 SNO PRO 153 (RUSSIAN) (GREEN) [S2015M8HSPRUG] - 2015 года выпуска
-
№АртикулНазвание
-
12670-447 CAP, OIL TANKCAP, OIL TANK
-
21623-969 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
34611-532 DECAL, OIL TANKDECAL, OIL TANK
-
42670-329 NECK, OIL FILLNECK, OIL FILL
-
51623-972 O-RINGO-RING
-
61623-814 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
72670-257 GLASS, SIGHTGLASS, SIGHT
-
81770-019 TANK, OILTANK, OIL
-
90609-915 SWITCH, LEVEL-OIL (INC. 10)SWITCH, LEVEL-OIL (INC. 10)
-
100609-924 ...GROMMET...GROMMET
-
110648-441 O-RINGO-RING
-
122670-229 FITTING, OUTLETFITTING, OUTLET
-
131623-042 CLAMP, (10MM)CLAMP, (10MM)
-
140610-692 HOSE, OIL/WATER - (25 FT)HOSE, OIL/WATER - (25 FT)
-
140610-693 HOSE, OIL - (100 FT)HOSE, OIL - (100 FT)
-
151619-345 LOOM, HIGH TEMP - (3/8 IN. X 3 FT) - CTLLOOM, HIGH TEMP - (3/8 IN. X 3 FT) - CTL
-
161048-063 SEALANT - (70 ML)SEALANT - (70 ML)
