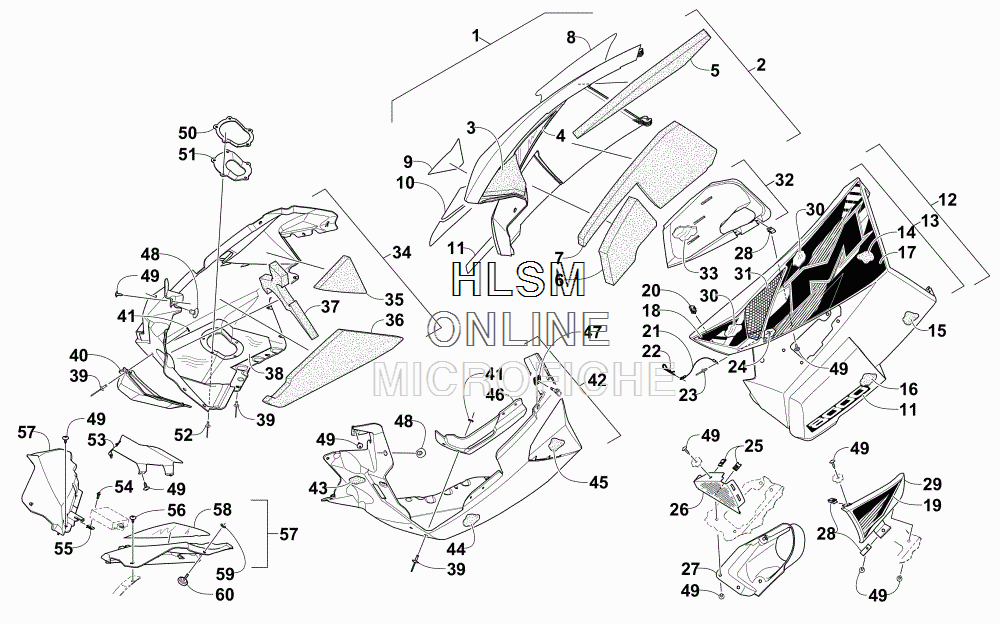

SKID PLATE AND SIDE PANEL ASSEMBLY для Arctic Cat M 8000 SNO PRO 162 (INTERNATIONAL) (ORANGE) [S2015M8HSEOSO] - 2015 года выпуска
-
№АртикулНазвание
-
14718-180 PANEL, SIDE W/DECALS - RIGHT - (BLACK/ORANGE) (INC. 2-11)PANEL, SIDE W/DECALS - RIGHT - (BLACK/ORANGE) (INC. 2-11)
-
23718-180 ...PANEL, SIDE W/FOAM DECALS - RIGHT - (BLACK) (INC. 3-7)...PANEL, SIDE W/FOAM DECALS - RIGHT - (BLACK) (INC. 3-7)
-
30617-626 ......FOAM, SIDE PANEL - UPPER FRONT - RIGHT......FOAM, SIDE PANEL - UPPER FRONT - RIGHT
-
46606-414 ......FOIL, PROTECTIVE PANEL - CENTER - RIGHT......FOIL, PROTECTIVE PANEL - CENTER - RIGHT
-
50617-628 ......FOAM, SIDE PANEL - UPPER REAR - RIGHT......FOAM, SIDE PANEL - UPPER REAR - RIGHT
-
60617-632 ......FOAM, SIDE PANEL - LOWER FRONT - RIGHT......FOAM, SIDE PANEL - LOWER FRONT - RIGHT
-
70617-634 ......FOAM, SIDE PANEL - LOWER REAR - RIGHT......FOAM, SIDE PANEL - LOWER REAR - RIGHT
-
81621-404 ...DECAL, SIDE PANEL - UPPER - RIGHT - (ORANGE)...DECAL, SIDE PANEL - UPPER - RIGHT - (ORANGE)
-
91621-448 ...DECAL, "8000"...DECAL, "8000"
-
101621-410 ...DECAL, SIDE PANEL - CENTER - RIGHT - (ORANGE)...DECAL, SIDE PANEL - CENTER - RIGHT - (ORANGE)
-
111621-408 ...DECAL, SIDE PANEL - LOWER FRONT - RIGHT - (ORANGE)...DECAL, SIDE PANEL - LOWER FRONT - RIGHT - (ORANGE)
-
124718-181 PANEL, SIDE W/DECALS - LEFT - (BLACK/ORANGE) (INC. 13-19)PANEL, SIDE W/DECALS - LEFT - (BLACK/ORANGE) (INC. 13-19)
-
134718-553 ...PANEL, SIDE W/FOAM DECALS - LEFT - (BLACK) (INC. 14-16)...PANEL, SIDE W/FOAM DECALS - LEFT - (BLACK) (INC. 14-16)
-
140617-629 ...FOAM, SIDE PANEL - UPPER REAR - LEFT...FOAM, SIDE PANEL - UPPER REAR - LEFT
-
150617-635 ...FOAM, SIDE PANEL - LOWER REAR - LEFT...FOAM, SIDE PANEL - LOWER REAR - LEFT
-
160617-681 ...FOAM, SIDE PANEL - LOWER FRONT - LEFT...FOAM, SIDE PANEL - LOWER FRONT - LEFT
-
171621-405 ...DECAL, SIDE PANEL - UPPER - LEFT - (ORANGE)...DECAL, SIDE PANEL - UPPER - LEFT - (ORANGE)
-
181621-409 ...DECAL, SIDE PANEL - LOWER FRONT - LEFT - (ORANGE)...DECAL, SIDE PANEL - LOWER FRONT - LEFT - (ORANGE)
-
192621-311 ...DECAL, SIDE PANEL - CENTER VENT - LEFT - (ORANGE)...DECAL, SIDE PANEL - CENTER VENT - LEFT - (ORANGE)
-
201623-637 CLIP, U-NUTCLIP, U-NUT
-
210607-447 CABLECABLE
-
220605-283 CLIP, HAIRPINCLIP, HAIRPIN
-
238060-486 RIVETRIVET
-
248050-127 WASHERWASHER
-
251623-052 CLIP, U-NUTCLIP, U-NUT
-
266606-925 SCREEN, INTAKESCREEN, INTAKE
-
272602-794 DUCT, INTAKE - INNERDUCT, INTAKE - INNER
-
281623-030 CLIP, U-NUTCLIP, U-NUT
-
292602-793 DUCT, INTAKE - OUTER - (BLACK)DUCT, INTAKE - OUTER - (BLACK)
-
300619-206 FOIL, PROTECTIVE - (6 IN. X 30 FT)FOIL, PROTECTIVE - (6 IN. X 30 FT)
-
315706-531 SCREEN, INTAKE - UPPER - (BLACK)SCREEN, INTAKE - UPPER - (BLACK)
-
321702-369 DUCT, AIR - CLUTCH (INC. 33)DUCT, AIR - CLUTCH (INC. 33)
-
336606-694 ...FOIL, PROTECTIVE - 2 STROKE...FOIL, PROTECTIVE - 2 STROKE
-
343718-422 PLATE, SKID W/FOAM DECALS - RIGHT - (BLACK) (INC. 35-41)PLATE, SKID W/FOAM DECALS - RIGHT - (BLACK) (INC. 35-41)
-
350617-640 ...FOAM, SKID PLATE - UPPER REAR - RIGHT...FOAM, SKID PLATE - UPPER REAR - RIGHT
-
360617-638 ...FOAM, SKID PLATE - CENTER FRONT - RIGHT...FOAM, SKID PLATE - CENTER FRONT - RIGHT
-
370617-636 ...FOAM, SKID PLATE - UPPER FRONT - RIGHT...FOAM, SKID PLATE - UPPER FRONT - RIGHT
-
382612-850 ...FOIL, PROTECTIVE...FOIL, PROTECTIVE
-
398061-708 ...RIVET...RIVET
-
402612-754 ...DEFLECTOR, HEAT...DEFLECTOR, HEAT
-
410123-802 ...WASHER...WASHER
-
423718-789 PLATE, SKID W/FOAM DECALS - LEFT - (BLACK) (INC. 43-46)PLATE, SKID W/FOAM DECALS - LEFT - (BLACK) (INC. 43-46)
-
430617-637 ...FOAM, SKID PLATE - UPPER FRONT - LEFT...FOAM, SKID PLATE - UPPER FRONT - LEFT
-
440617-639 ...FOAM, SKID PLATE - CENTER FRONT - LEFT...FOAM, SKID PLATE - CENTER FRONT - LEFT
-
450617-641 ...FOAM, SKID PLATE - UPPER REAR - LEFT...FOAM, SKID PLATE - UPPER REAR - LEFT
-
466606-613 ...PANEL, REINFORCEMENT...PANEL, REINFORCEMENT
-
472623-005 CLIP, RETAININGCLIP, RETAINING
-
486606-592 PIN, RETAININGPIN, RETAINING
-
491623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
502612-796 PLATE, EXHAUST OUTLETPLATE, EXHAUST OUTLET
-
512612-795 SEAL, EXHAUST OUTLETSEAL, EXHAUST OUTLET
-
528061-710 RIVET, BLIND - LARGE FLANGE - (BLACK)RIVET, BLIND - LARGE FLANGE - (BLACK)
-
536606-295 SHIELD, HEAT - ECMSHIELD, HEAT - ECM
-
548408-620 SCREW, CAPSCREW, CAP
-
550423-031 CLIP, U-NUTCLIP, U-NUT
-
560623-784 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
576606-342 FASCIA, FRONT - RIGHT - (BLACK)FASCIA, FRONT - RIGHT - (BLACK)
-
573718-303 FASCIA, FRONT - LEFT - (BLACK) (INC. 58)FASCIA, FRONT - LEFT - (BLACK) (INC. 58)
-
586606-405 ...FOIL, PROTECTIVE PANEL - LEFT...FOIL, PROTECTIVE PANEL - LEFT
-
592623-001 NUT, PUSHNUT, PUSH
-
601623-999 SCREW, THUMBSCREW, THUMB
