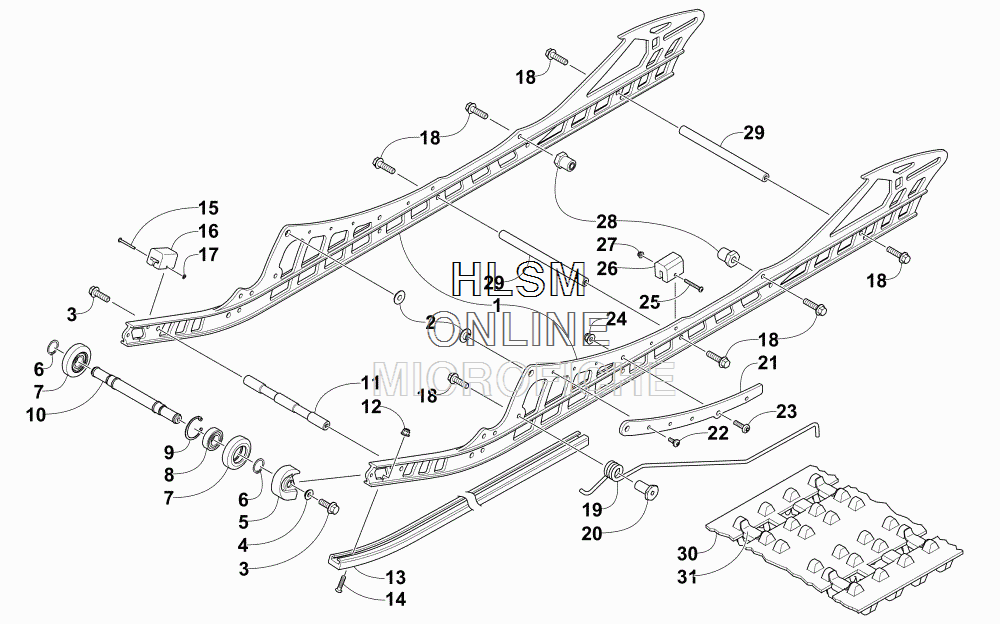

TRACK ASSEMBLY W/ SLIDE RAIL для Arctic Cat M 8000 SNO PRO LTD 153 (INTERNATIONAL) (GREEN) [S2015M8HPSOSG] - 2015 года выпуска
-
№АртикулНазвание
-
-2704-584 COMPLETE SKID FRAME ASSEMBLYCOMPLETE SKID FRAME ASSEMBLY
-
12704-564 RAIL, SUSP-153"-PTD TEAM ARC GREENRAIL, SUSP-153"-PTD TEAM ARC GREEN
-
23604-266 INSERT, RAILINSERT, RAIL
-
38408-831 SCREW, CAPSCREW, CAP
-
43604-928 SPACERSPACER
-
54604-117 END CAP, SLIDE RAILEND CAP, SLIDE RAIL
-
61423-001 RING, RETAININGRING, RETAINING
-
73604-844 WHEEL, IDLER - BLACK (INC. 8-9)WHEEL, IDLER - BLACK (INC. 8-9)
-
83604-033 ...BEARING...BEARING
-
90623-946 ...RING, RETAINING...RING, RETAINING
-
103604-921 AXLE, IDLER WHEELAXLE, IDLER WHEEL
-
113604-630 AXLE, XBRC/LMTR-19.94X222.25 (M8X1.25)AXLE, XBRC/LMTR-19.94X222.25 (M8X1.25)
-
128047-366 NUT, LOCKNUT, LOCK
-
133604-939 WEARSTRIP, SLIDE RAILWEARSTRIP, SLIDE RAIL
-
140123-859 SCREW, MACHINESCREW, MACHINE
-
150123-767 RIVET, SOLIDRIVET, SOLID
-
160104-631 PAD, SHOCKPAD, SHOCK
-
170123-766 NUT, PUSHNUT, PUSH
-
188408-826 SCREW, CAPSCREW, CAP
-
191704-734 SCRATCHER, ICE - RIGHTSCRATCHER, ICE - RIGHT
-
191704-735 SCRATCHER, ICE - LEFTSCRATCHER, ICE - LEFT
-
203604-678 BUSHINGBUSHING
-
212704-290 BRACE, SLIDE RAIL - GREENBRACE, SLIDE RAIL - GREEN
-
220423-538 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
238468-625 SCREW, MACHINESCREW, MACHINE
-
248427-602 NUT, LOCKNUT, LOCK
-
258470-540 SCREW, MACHINESCREW, MACHINE
-
261604-429 PAD, SHOCKPAD, SHOCK
-
278427-502 NUT, LOCKNUT, LOCK
-
283604-635 BUSHING, STOP - REAR ARMBUSHING, STOP - REAR ARM
-
293604-667 AXLEAXLE
-
302602-481 TRACK, P/C-15X153X2.60(3.0 PITCH) (80D) (INC. 31)TRACK, P/C-15X153X2.60(3.0 PITCH) (80D) (INC. 31)
-
312602-386 ...CLIP, GUIDE...CLIP, GUIDE
