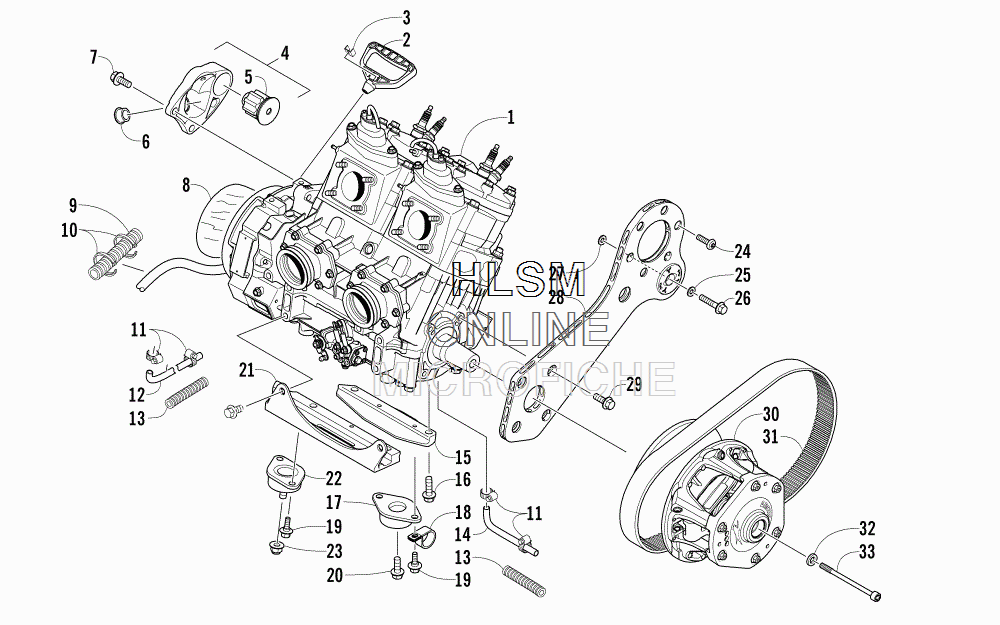

ENGINE AND RELATED PARTS для Arctic Cat M 8000 SNO PRO LTD ES 153 (INTERNATIONAL) (ORANGE) [S2015M8HLEOSO] - 2015 года выпуска
-
№АртикулНазвание
-
10662-609 ENGINE,L/C-800 HO (W/O EFI/VALVE CABLES)ENGINE,L/C-800 HO (W/O EFI/VALVE CABLES)
-
20636-363 HANDLE,RECOIL-LARGEHANDLE,RECOIL-LARGE
-
30606-885 CAP, RECOIL HANDLECAP, RECOIL HANDLE
-
40708-582 BRACKET, ENGINE MOUNTING - MAG (INC. 5-6)BRACKET, ENGINE MOUNTING - MAG (INC. 5-6)
-
50608-630 ...MOUNT, ENGINE...MOUNT, ENGINE
-
60608-633 ...BUSHING,RECOIL ROPE...BUSHING,RECOIL ROPE
-
78409-026 SCREW,CAP-HFH M10X1.25X25 CL10.9 W/2353SCREW,CAP-HFH M10X1.25X25 CL10.9 W/2353
-
84606-425 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
91619-131 CONDUIT, FLEXIBLE ((3/4 IN. ID) - 12 IN.)CONDUIT, FLEXIBLE ((3/4 IN. ID) - 12 IN.)
-
100123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
110623-373 CLAMP,HOSE #4 {6202}CLAMP,HOSE #4 {6202}
-
120610-923 HOSE, COOLANT - MAG/THROTTLE BODYHOSE, COOLANT - MAG/THROTTLE BODY
-
130619-776 CONDUIT - 5 FTCONDUIT - 5 FT
-
140610-878 HOSE, COOLANTHOSE, COOLANT
-
150708-602 PLATE, ENGINE MOUNTING - LOWER REARPLATE, ENGINE MOUNTING - LOWER REAR
-
168409-036 SCREW,CAP-HFH M10X1.25X35 CL10.9 W/2353SCREW,CAP-HFH M10X1.25X35 CL10.9 W/2353
-
170608-496 MOUNT, ENGINEMOUNT, ENGINE
-
181623-080 CLAMP, FLEX SHAFT (550/600)CLAMP, FLEX SHAFT (550/600)
-
191623-944 SCREW,SHLDER-HFH-M6-1.0X18 CLR.8 Z & YSCREW,SHLDER-HFH-M6-1.0X18 CLR.8 Z & Y
-
208409-017 SCREW,CAP-HFH M10X1.25X16 CL10.9W/2353SCREW,CAP-HFH M10X1.25X16 CL10.9W/2353
-
210708-600 PLATE, ENGINE MOUNTING - LOWER FRONTPLATE, ENGINE MOUNTING - LOWER FRONT
-
220708-587 MOUNT, ENGINE - LOWERMOUNT, ENGINE - LOWER
-
238427-002 NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z & YNUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z & Y
-
248468-617 SCREW,MACH-TSPNH M6X1.0X16 CL8.8 W/2353SCREW,MACH-TSPNH M6X1.0X16 CL8.8 W/2353
-
258050-242 WASHER,FLAT- 5/16 X .625 X .063 Z & YWASHER,FLAT- 5/16 X .625 X .063 Z & Y
-
261623-932 SCREW,CAP-HSH-M8X1.25X30/12.9 W/2353 BZSCREW,CAP-HSH-M8X1.25X30/12.9 W/2353 BZ
-
270623-987 WASHER, BELLVILE - 0.312 X 0.930WASHER, BELLVILE - 0.312 X 0.930
-
280708-622 BRACKET, ENGINE MOUNTING - PTO-SIDE - ASSEMBLYBRACKET, ENGINE MOUNTING - PTO-SIDE - ASSEMBLY
-
291623-937 SCREW,CAP-HSH-M8-1.25X20 CL 12.9 W/2510SCREW,CAP-HSH-M8-1.25X20 CL 12.9 W/2510
-
300746-435 CLUTCH,DRIVE-UNCAL-8.25 33MM/SCLUTCH,DRIVE-UNCAL-8.25 33MM/S
-
310627-084 BELT, DRIVEBELT, DRIVE
-
321623-649 WASHER, HIGH COLLARWASHER, HIGH COLLAR
-
331623-792 BOLT, CLUTCHBOLT, CLUTCH
