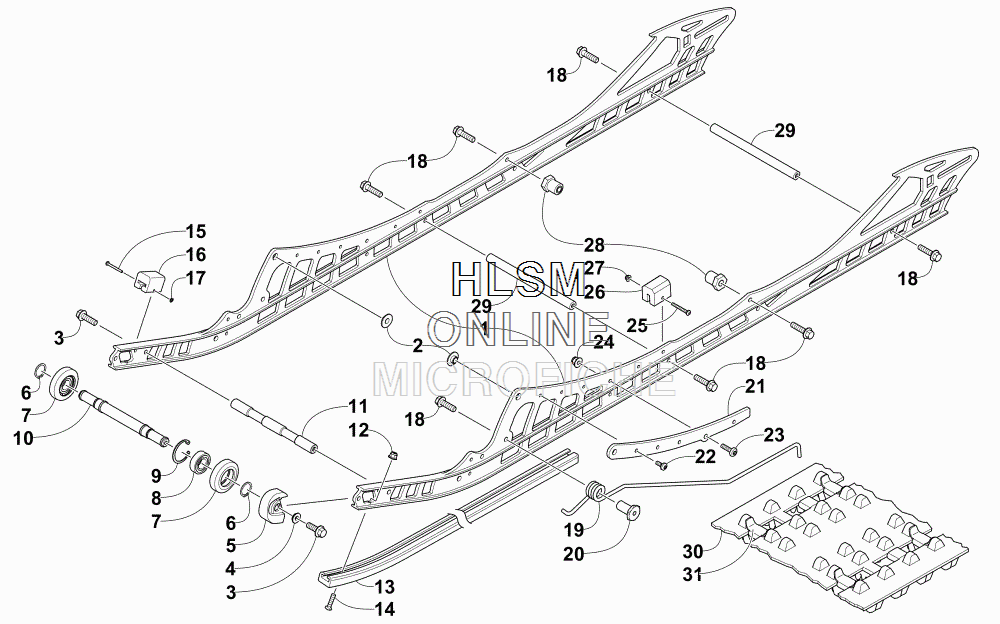

TRACK ASSEMBLY W/ SLIDE RAIL для Arctic Cat M 9000 SNO PRO LTD 162 (INTERNATIONAL) (ORANGE) [S2015M9NLEOSO] - 2015 года выпуска
-
№АртикулНазвание
-
-2704-648 COMPLETE SKID FRAME ASSEMBLYCOMPLETE SKID FRAME ASSEMBLY
-
12704-578 RAIL, FORMED - (ORANGE)RAIL, FORMED - (ORANGE)
-
23604-266 INSERT, RAILINSERT, RAIL
-
38408-831 SCREW,CAP-HFH M8X1.25X30 CL8.8 W/2353SCREW,CAP-HFH M8X1.25X30 CL8.8 W/2353
-
43604-928 SPACER,RAIL CAPSPACER,RAIL CAP
-
54604-117 END CAP, SLIDE RAILEND CAP, SLIDE RAIL
-
61423-001 SNAP RING (DSH-19)SNAP RING (DSH-19)
-
73604-844 WHEEL, IDLER - (BLACK) (INC. 8-9)WHEEL, IDLER - (BLACK) (INC. 8-9)
-
83604-033 ...BEARING,WHL-NSK CHINA 6004-W/ENS GREASE...BEARING,WHL-NSK CHINA 6004-W/ENS GREASE
-
90623-946 ...RING,INTERNAL RETAINING-#165...RING,INTERNAL RETAINING-#165
-
103604-921 AXLE, IDLER WHEELAXLE, IDLER WHEEL
-
113604-630 AXLEAXLE
-
128047-366 NUT,HEX FLG-NY LOCK 1/4-20 GR F Z & YNUT,HEX FLG-NY LOCK 1/4-20 GR F Z & Y
-
133604-940 WEARSTRIP, SLIDE RAILWEARSTRIP, SLIDE RAIL
-
140123-859 SCREW,MACH-PHFH 1/4-20 X 1 1/8 Z & YSCREW,MACH-PHFH 1/4-20 X 1 1/8 Z & Y
-
150123-767 RIVET,SOLID-1/8 X 1.50RIVET,SOLID-1/8 X 1.50
-
160104-631 PAD,SHOCK-RUBBERPAD,SHOCK-RUBBER
-
170123-766 NUT,PUSH-.125 STUDNUT,PUSH-.125 STUD
-
188408-826 SCREW,CAP-HFH M8X1.25X25 CL8.8 W/2353SCREW,CAP-HFH M8X1.25X25 CL8.8 W/2353
-
191704-734 SCRATCHER, ICE - RIGHTSCRATCHER, ICE - RIGHT
-
191704-735 SCRATCHER, ICE - LEFTSCRATCHER, ICE - LEFT
-
203604-678 BUSHING,ICE SCRATCHER-M8BUSHING,ICE SCRATCHER-M8
-
212704-435 BRACE, SLIDE RAIL - (ORANGE)BRACE, SLIDE RAIL - (ORANGE)
-
220423-538 SCREW,TAPTITE-TSPNH M6 X 1 X 16 Z & BSCREW,TAPTITE-TSPNH M6 X 1 X 16 Z & B
-
238468-625 SCREW,MACH-TSPNH M6X1.0X25 CL8.8 (BLACK)SCREW,MACH-TSPNH M6X1.0X25 CL8.8 (BLACK)
-
248427-602 NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & YNUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y
-
258470-540 SCREW,MACH-TSPNH M5X.8X40 CL8.8 Z & YSCREW,MACH-TSPNH M5X.8X40 CL8.8 Z & Y
-
261604-429 PAD,SHOCK-RUBBERPAD,SHOCK-RUBBER
-
278427-502 NUT,HEX FLG-NYL LOCK M5X.8 CL8 Z & YNUT,HEX FLG-NYL LOCK M5X.8 CL8 Z & Y
-
283604-635 BUSHING, STOP - REAR ARMBUSHING, STOP - REAR ARM
-
293604-667 AXLEAXLE
-
302602-483 TRACK ASSEMBLY (INC. 31)TRACK ASSEMBLY (INC. 31)
-
312602-386 ...CLIP, GUIDE...CLIP, GUIDE
