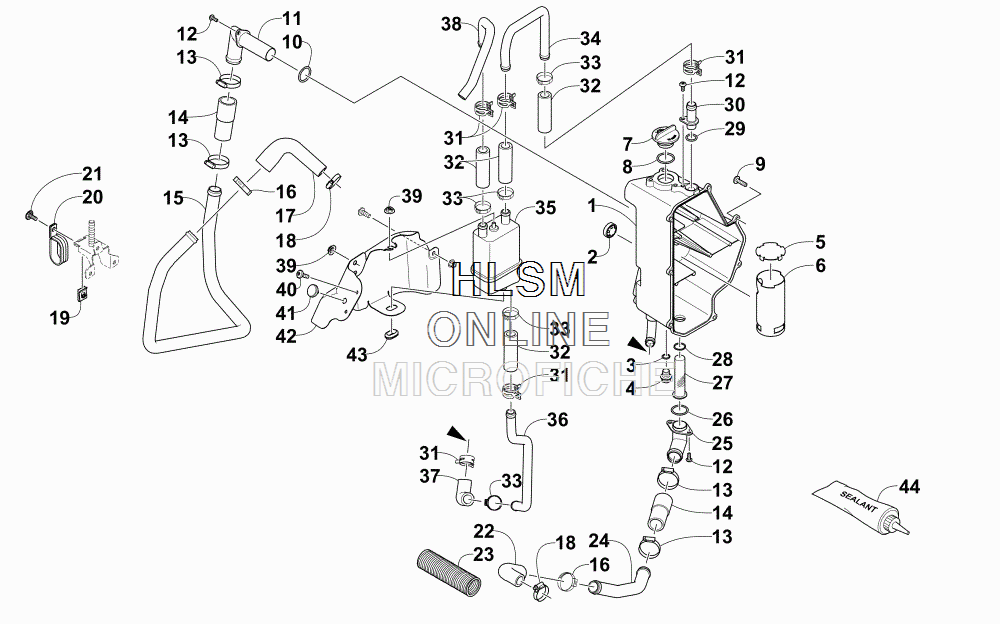

OIL TANK ASSEMBLY для Arctic Cat PANTERA 7000 LTD (INTERNATIONAL) (BLACK) [S2015PTULXOSB] - 2015 года выпуска
![](/wa-data/public/shop/sheme/arctic-cat/snow/dc94141e-2ce8-486a-81df-49138092bb3b.gif)
-
№АртикулНазвание
-
11770-080 TANK,OIL-W/FITTINGTANK,OIL-W/FITTING
-
22670-257 GLASS, SIGHTGLASS, SIGHT
-
31602-213 O-RINGO-RING
-
42602-099 PLUG,FILL-12 MMPLUG,FILL-12 MM
-
52670-287 CAP,TUBE-OIL TANKCAP,TUBE-OIL TANK
-
62670-219 TUBE, OIL TANKTUBE, OIL TANK
-
72670-224 CAP, OIL TANK (INC. 8)CAP, OIL TANK (INC. 8)
-
82670-135 ...SEAL, CAP - OIL TANK...SEAL, CAP - OIL TANK
-
91623-814 SCREW,MAG FORM-TXPH-M6X2.0X24SCREW,MAG FORM-TXPH-M6X2.0X24
-
102670-406 O-RING,OIL TANK-0.984 ID X 0.139 THKO-RING,OIL TANK-0.984 ID X 0.139 THK
-
112670-221 FITTING, OIL RETURN - ENGINEFITTING, OIL RETURN - ENGINE
-
121623-969 SCREW,MAG FORM-TXPH-M6X2.0X12 Z & CSCREW,MAG FORM-TXPH-M6X2.0X12 Z & C
-
132623-088 CLAMP, HOSECLAMP, HOSE
-
140610-940 HOSE,22.22/25.4MM ID X 75MM LG-SAE J30HOSE,22.22/25.4MM ID X 75MM LG-SAE J30
-
152670-286 TUBE, OIL - OIL TANK/ENGINETUBE, OIL - OIL TANK/ENGINE
-
161623-349 CLAMP,H0SE-CRIMP-31.6CLAMP,H0SE-CRIMP-31.6
-
170610-919 HOSE,OIL-16 ID TO 22.22 ID ELBOWHOSE,OIL-16 ID TO 22.22 ID ELBOW
-
181623-182 CLAMP, INERCOOLER-SMALLCLAMP, INERCOOLER-SMALL
-
191623-939 NUT,SPEED-#10 B "U" TYPENUT,SPEED-#10 B "U" TYPE
-
202623-015 CLAMP,DOUBLE TUBE-.875 DIACLAMP,DOUBLE TUBE-.875 DIA
-
210623-784 SCREW,SELF TAP-TSTRH #10-12X3/4 TP A (BLACK)SCREW,SELF TAP-TSTRH #10-12X3/4 TP A (BLACK)
-
220610-929 HOSE, OILHOSE, OIL
-
230610-790 LOOM, COOLANT HOSE - 5 FTLOOM, COOLANT HOSE - 5 FT
-
242670-285 TUBE, OIL - ENGINE/OIL TANKTUBE, OIL - ENGINE/OIL TANK
-
252670-220 FITTING, OIL SUPPLY - ENGINEFITTING, OIL SUPPLY - ENGINE
-
262670-290 O-RING,OIL TANK(2-120)O-RING,OIL TANK(2-120)
-
272670-222 SCREEN, OIL TANKSCREEN, OIL TANK
-
280673-459 O-RING,3/4ID X 1/16 (-018)O-RING,3/4ID X 1/16 (-018)
-
290670-183 O-RING, 5/8 X 13/16 ODO-RING, 5/8 X 13/16 OD
-
302670-288 FITTING,OIL TANK-VENTFITTING,OIL TANK-VENT
-
311623-287 CLAMP,HOSE-SPRING (12W X 24)CLAMP,HOSE-SPRING (12W X 24)
-
320610-965 HOSE,BREATHER-OIL TANK-60MMHOSE,BREATHER-OIL TANK-60MM
-
331623-350 CLAMP, HOSECLAMP, HOSE
-
342670-419 TUBE, OIL - OIL TANK/SEPARATOR TANKTUBE, OIL - OIL TANK/SEPARATOR TANK
-
351770-058 TANK, SEPARATORTANK, SEPARATOR
-
362670-375 TUBE, OIL - SEPARATOR TANK/OIL TANKTUBE, OIL - SEPARATOR TANK/OIL TANK
-
370610-954 HOSE, OILHOSE, OIL
-
382670-374 TUBE, OIL - SEPARATOR TANK/AIR INTAKETUBE, OIL - SEPARATOR TANK/AIR INTAKE
-
390423-357 NUT, STAMPED-1/4" (SD 25001 SOH)NUT, STAMPED-1/4" (SD 25001 SOH)
-
408470-510 SCREW,MACH-TSPNH M5X.8X10 CL8.8 Z & YSCREW,MACH-TSPNH M5X.8X10 CL8.8 Z & Y
-
410406-877 BUMPER,SEATBUMPER,SEAT
-
422670-381 SHIELD, HEATSHIELD, HEAT
-
432623-012 GROMMET, RUBBER-OVAL 5/8"W X 1 1/32"LGGROMMET, RUBBER-OVAL 5/8"W X 1 1/32"LG
-
441048-063 LOCTITE,5699-GASKET MAKER (70ML)LOCTITE,5699-GASKET MAKER (70ML)
