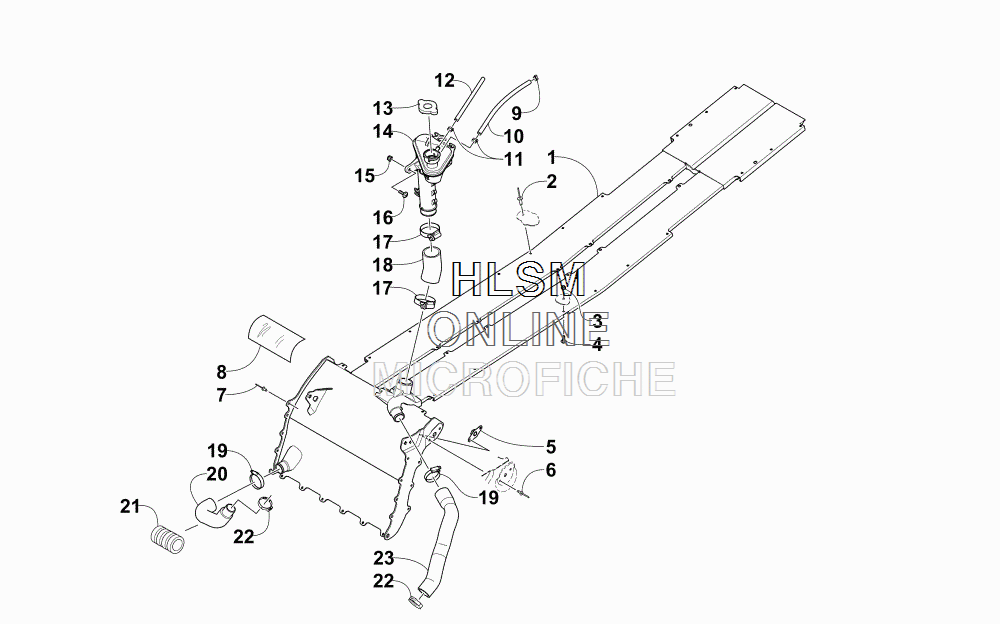

COOLING ASSEMBLY для Arctic Cat XF 6000 CROSS-COUNTRY 141 (ORANGE) [S2015X6DCCUSO] - 2015 года выпуска
-
№АртикулНазвание
-
10713-115 EXCHANGER, HEATEXCHANGER, HEAT
-
28060-702 RIVET, BLIND-DH SS62 BLKRIVET, BLIND-DH SS62 BLK
-
38422-502 NUT, LOCKNUT, LOCK
-
48476-516 SCREW, MACHINESCREW, MACHINE
-
50608-631 PLATE, RETAININGPLATE, RETAINING
-
68060-708 RIVET, BLIND-DH SS66 BLKRIVET, BLIND-DH SS66 BLK
-
78060-706 RIVET, BLIND-DH SS64 BLKRIVET, BLIND-DH SS64 BLK
-
80619-206 TAPE, ALUM FOIL - 6" X 30 FTTAPE, ALUM FOIL - 6" X 30 FT
-
91623-619 CLAMP, HOSECLAMP, HOSE
-
100610-538 HOSE, VENT - 25 (1054-152)HOSE, VENT - 25 (1054-152)
-
111623-655 CLAMP, HOSECLAMP, HOSE
-
120610-692 HOSE, OIL/WATER - 25 FTHOSE, OIL/WATER - 25 FT
-
120610-693 HOSE, OIL - 100 FTHOSE, OIL - 100 FT
-
132606-284 CAPCAP
-
140613-135 TANK, COOLANTTANK, COOLANT
-
158422-602 NUT, LOCKNUT, LOCK
-
168476-625 SCREW, MACHINESCREW, MACHINE
-
170423-317 CLAMP, HOSE - 32/50 (NORMA 962)CLAMP, HOSE - 32/50 (NORMA 962)
-
180610-936 HOSE, COOLANT - FILLER NECK/HEAT EXCHANGERHOSE, COOLANT - FILLER NECK/HEAT EXCHANGER
-
192623-088 CLAMP, HOSECLAMP, HOSE
-
200610-864 HOSE, COOLANT - ENGINE/HEAT EXCHANGERHOSE, COOLANT - ENGINE/HEAT EXCHANGER
-
210619-619 CONDUIT, FLEXIBLE - 4 IN.CONDUIT, FLEXIBLE - 4 IN.
-
221623-656 CLAMP, HOSECLAMP, HOSE
-
230613-136 HOSE, COOLANT - HEAT EXCHANGER/ENGINEHOSE, COOLANT - HEAT EXCHANGER/ENGINE
