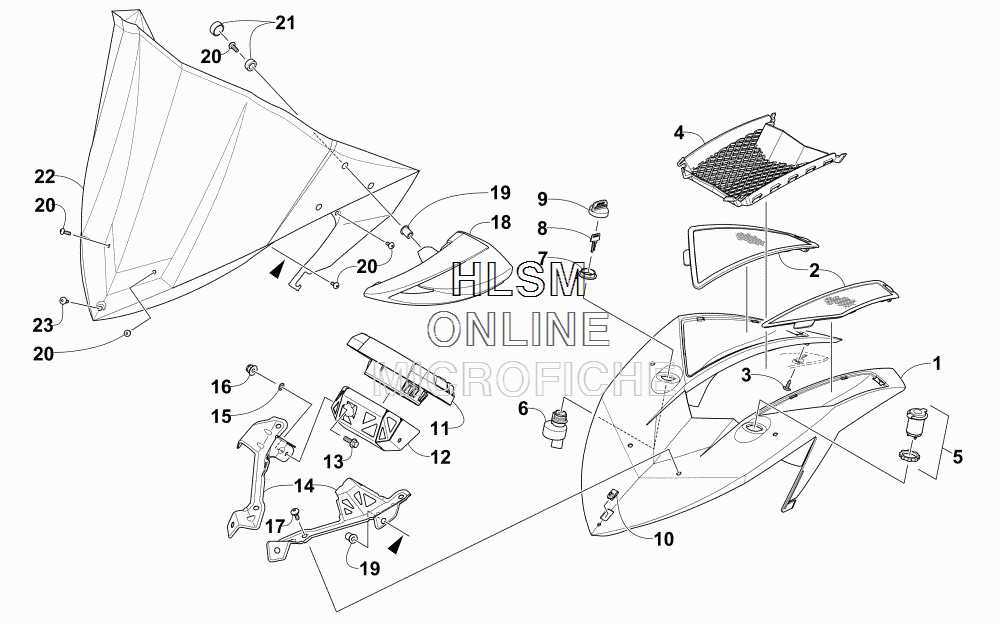

WINDSHIELD AND INSTRUMENTS ASSEMBLIES для Arctic Cat XF 6000 CROSS-TOUR 141 (ORANGE) [S2015X6DCTUSO] - 2015 года выпуска
-
№АртикулНазвание
-
15706-535 POD, INSTRUMENT - (ORANGE)POD, INSTRUMENT - (ORANGE)
-
20608-736 SCREEN, INTAKE - INJECTION MOLD - RIGHTSCREEN, INTAKE - INJECTION MOLD - RIGHT
-
20608-737 SCREEN, INTAKE - INJECTION MOLD - LEFTSCREEN, INTAKE - INJECTION MOLD - LEFT
-
31623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
46606-556 VENTVENT
-
50641-897 OUTLET, ACCESSORY - (12V DC)OUTLET, ACCESSORY - (12V DC)
-
60609-910 SWITCH, IGNITION (INC. 7-9)SWITCH, IGNITION (INC. 7-9)
-
70430-050 ...NUT, FLANGE - IGNITION SWITCH...NUT, FLANGE - IGNITION SWITCH
-
80430-042 ...KEY, IGNITION - (Y SERIES - LEFT-SIDE CUT)...KEY, IGNITION - (Y SERIES - LEFT-SIDE CUT)
-
80430-043 ...KEY, IGNITION - (Z SERIES - RIGHT-SIDE CUT)...KEY, IGNITION - (Z SERIES - RIGHT-SIDE CUT)
-
90430-054 ...COVER, KEY...COVER, KEY
-
101623-637 CLIP, U-NUTCLIP, U-NUT
-
110720-031 GAUGE, SPEEDOMETERGAUGE, SPEEDOMETER
-
125706-681 BRACKET, SPEEDOMETER GAUGE - CENTER - (BLACK)BRACKET, SPEEDOMETER GAUGE - CENTER - (BLACK)
-
138410-616 SCREW, CAPSCREW, CAP
-
145706-250 BRACKET, SPEEDOMETER GAUGE - RIGHT - (BLACK)BRACKET, SPEEDOMETER GAUGE - RIGHT - (BLACK)
-
145706-251 BRACKET, SPEEDOMETER GAUGE - LEFT - (BLACK)BRACKET, SPEEDOMETER GAUGE - LEFT - (BLACK)
-
158053-212 WASHER, LOCKWASHER, LOCK
-
168427-602 NUT, LOCKNUT, LOCK
-
170423-355 SCREW, SHOULDERSCREW, SHOULDER
-
186639-629 MIRROR KIT - SINGLE (INC. SIX NO. 19-21) - (BLACK)MIRROR KIT - SINGLE (INC. SIX NO. 19-21) - (BLACK)
-
186639-630 MIRROR KIT - PAIR (INC. SIX NO. 19-21) - (BLACK)MIRROR KIT - PAIR (INC. SIX NO. 19-21) - (BLACK)
-
191623-764 NUT, EXPANSIONNUT, EXPANSION
-
208477-516 SCREW, MACHINESCREW, MACHINE
-
210124-054 CAP, SNAP W/ WASHERCAP, SNAP W/ WASHER
-
226606-514 WINDSHIELD - MIDWINDSHIELD - MID
-
238477-510 SCREW, MACHINESCREW, MACHINE
