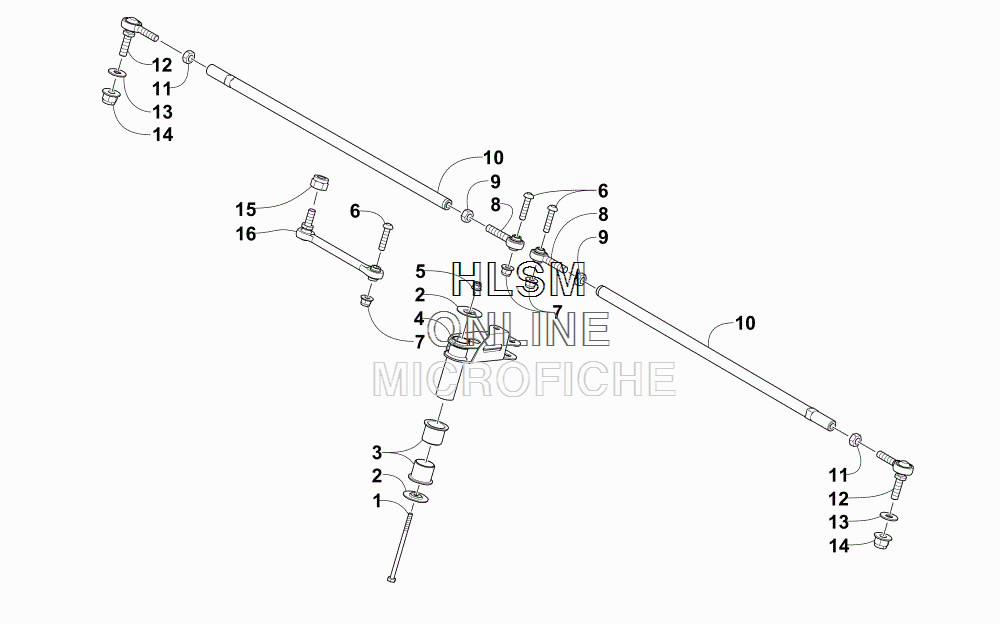

TIE ROD ASSEMBLY для Arctic Cat XF 6000 HIGH COUNTRY 141 SNO PRO (ORANGE) [S2015X6DHIUSO] - 2015 года выпуска
-
№АртикулНазвание
-
18402-600 SCREW, CAPSCREW, CAP
-
21623-807 WASHERWASHER
-
31605-161 BUSHING, PLASTICBUSHING, PLASTIC
-
41705-488 BELLCRANK - PAINTED (BLACK)BELLCRANK - PAINTED (BLACK)
-
58427-602 NUT, LOCKNUT, LOCK
-
62623-026 SCREW, MACHINESCREW, MACHINE
-
78427-802 NUT, LOCKNUT, LOCK
-
81605-032 BALL JOINT, TIE ROD - RIGHT-HAND THREADBALL JOINT, TIE ROD - RIGHT-HAND THREAD
-
98420-002 NUT - RIGHT-HAND THREADNUT - RIGHT-HAND THREAD
-
101605-033 TUBE, TIE ROD - SPINDLETUBE, TIE ROD - SPINDLE
-
110423-013 NUT - LEFTNUT - LEFT
-
121605-019 ROD END, LEFT HANDROD END, LEFT HAND
-
131623-803 WASHERWASHER
-
148427-002 NUT, LOCKNUT, LOCK
-
158422-002 NUT, LOCKNUT, LOCK
-
161605-109 DRAGLINK, STEERING - (106 MM)DRAGLINK, STEERING - (106 MM)
