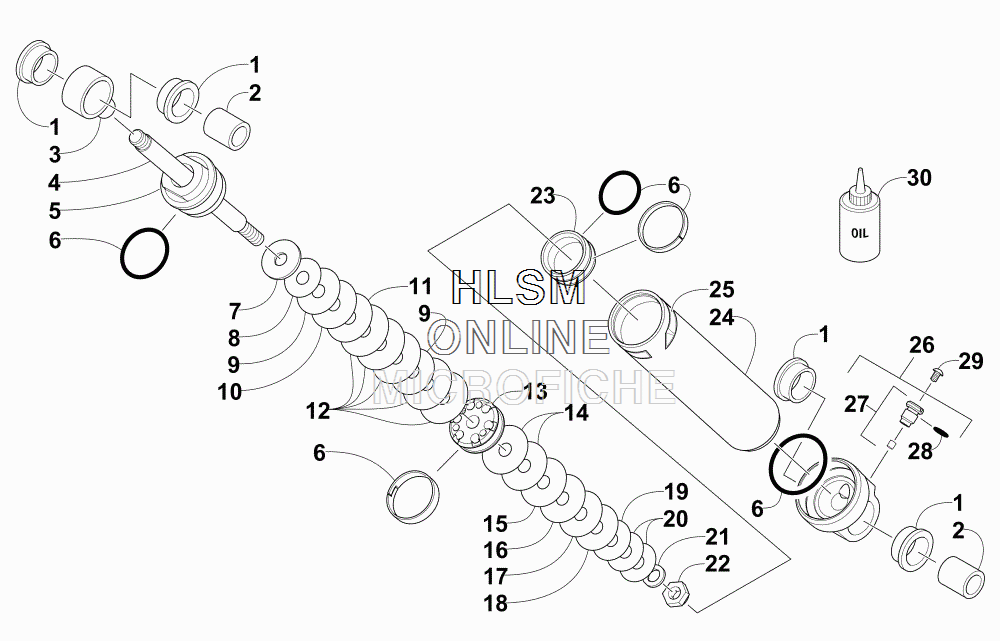

SUSPENSION REAR - REAR ARM SHOCK ABSORBER для Arctic Cat XF 7000 SNO PRO 137 (ORANGE) [S2015XFUSPUSO] - 2015 года выпуска
![](/wa-data/public/shop/sheme/arctic-cat/snow/ddd453be-71c6-4c96-806a-fd9710a86408.gif)
-
№АртикулНазвание
-
-2704-686 SHOCK, REAR ARMSHOCK, REAR ARM
-
13604-738 BUSHING,REAR SHOCKBUSHING,REAR SHOCK
-
23604-737 SLEEVE - 20.65 OD X 14.5 ID X 24.2SLEEVE - 20.65 OD X 14.5 ID X 24.2
-
33604-796 EYELET, SHOCKEYELET, SHOCK
-
43604-810 ROD, SHOCKROD, SHOCK
-
54604-127 BEARING, ENDCAP - LONG W/BLEED - ASSEMBLY - 2"BEARING, ENDCAP - LONG W/BLEED - ASSEMBLY - 2"
-
64604-194 KIT, SEAL/REBUILDKIT, SEAL/REBUILD
-
73604-874 WASHER, TOP OUTWASHER, TOP OUT
-
83603-112 VALVE, 0.900 X 0.006 IN.VALVE, 0.900 X 0.006 IN.
-
93603-122 VALVE, 1.000 X 0.006 IN.VALVE, 1.000 X 0.006 IN.
-
103603-185 VALVE, 1.300 X 0.010 IN.VALVE, 1.300 X 0.010 IN.
-
113604-873 VALVE, 1.425 X 0.010 IN.VALVE, 1.425 X 0.010 IN.
-
123604-871 VALVE, 1.600 X 0.010 IN.VALVE, 1.600 X 0.010 IN.
-
133604-870 PISTON, 0.055 IN. - ORIFICEPISTON, 0.055 IN. - ORIFICE
-
143604-872 VALVE, 1.425 X 0.016 IN.VALVE, 1.425 X 0.016 IN.
-
153604-886 VALVE, 1.425 X 0.012 IN.VALVE, 1.425 X 0.012 IN.
-
163603-186 VALVE, 1.300 X 0.012 IN.VALVE, 1.300 X 0.012 IN.
-
173603-146 VALVE, 1.100 X 0.012 IN.VALVE, 1.100 X 0.012 IN.
-
183603-126 VALVE, 1.000 X 0.012 IN.VALVE, 1.000 X 0.012 IN.
-
193603-117 VALVE, 0.900 X 0.016 IN.VALVE, 0.900 X 0.016 IN.
-
203603-107 VALVE, 0.800 X 0.016 IN.VALVE, 0.800 X 0.016 IN.
-
213604-775 WASHER, BACKUPWASHER, BACKUP
-
223604-739 NUT, HEX - 3/8"-24UNFNUT, HEX - 3/8"-24UNF
-
233604-876 PISTON, FLOATING ASSEMBLYPISTON, FLOATING ASSEMBLY
-
243604-914 BODY, SHOCKBODY, SHOCK
-
251621-728 DECAL, WARNING - HIGH PRESSUREDECAL, WARNING - HIGH PRESSURE
-
263604-894 END CAP, SHOCK - ASSEMBLY (INC. 27-28)END CAP, SHOCK - ASSEMBLY (INC. 27-28)
-
273604-751 ...VALVE, PRESSURE (INC. 28)...VALVE, PRESSURE (INC. 28)
-
283604-733 ......O-RING, VALVE......O-RING, VALVE
-
293604-750 SCREW.MACH-#8-32 X 5MM-SSSCREW.MACH-#8-32 X 5MM-SS
-
305639-530 SEMI-SYN SHOCK OIL-1 QUARTSEMI-SYN SHOCK OIL-1 QUART
