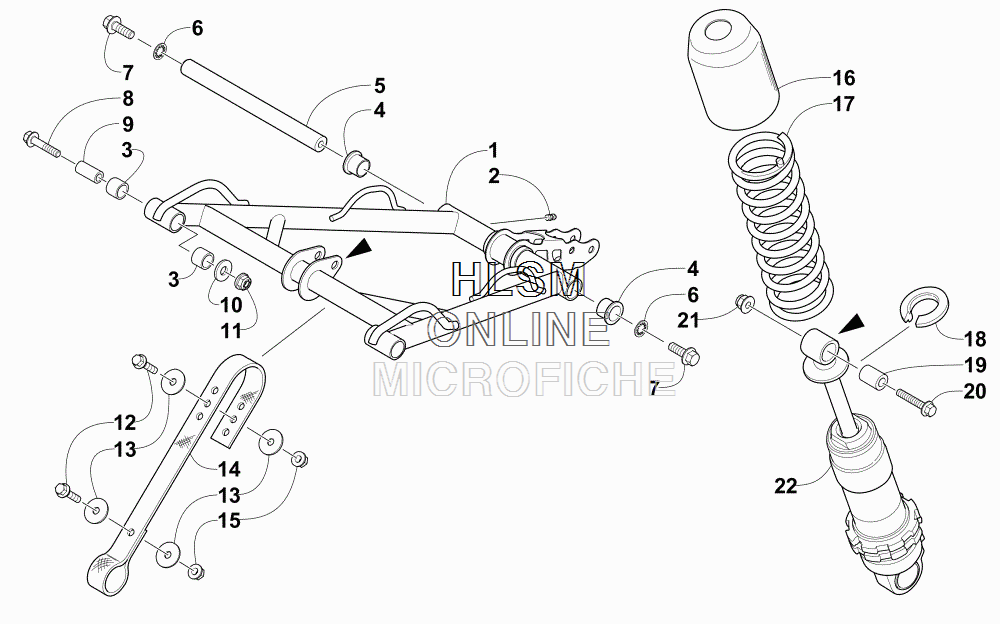

SUSPENSION REAR - FRONT ARM ASSEMBLY для Arctic Cat XF 7000 SNO PRO CROSS-COUNTRY 141 (ORANGE) [S2015X7UCCUSO] - 2015 года выпуска
-
№АртикулНазвание
-
12704-418 ARM, FRONT SUSPENSION - BLACK (INC. 2-4)ARM, FRONT SUSPENSION - BLACK (INC. 2-4)
-
21623-010 ...FITTING, GREASE...FITTING, GREASE
-
30604-889 ...BUSHING...BUSHING
-
43604-028 ...BUSHING, FLARED...BUSHING, FLARED
-
53604-853 AXLEAXLE
-
61623-992 WASHER, INTERNAL TOOTH LOCKWASHER, INTERNAL TOOTH LOCK
-
78413-031 SCREW, CAP-HFH M10X1.25X30 CL10.9 W/2353SCREW, CAP-HFH M10X1.25X30 CL10.9 W/2353
-
88408-065 SCREW, CAP-HFH M10X1.25X65 CL8.8 Z & YSCREW, CAP-HFH M10X1.25X65 CL8.8 Z & Y
-
93604-665 AXLEAXLE
-
108450-163 WASHER, FLATWASHER, FLAT
-
118427-002 NUT, HEX FLG-NYL LOCK M10X1.25 CL8 Z & YNUT, HEX FLG-NYL LOCK M10X1.25 CL8 Z & Y
-
128408-630 SCREW, CAP-HFH M6X1.0X30 CL8.8 Z & YSCREW, CAP-HFH M6X1.0X30 CL8.8 Z & Y
-
138450-109 WASHER, FLATWASHER, FLAT
-
144604-132 STRAP, LIMITER - 1.25" X 16.50"STRAP, LIMITER - 1.25" X 16.50"
-
158427-602 NUT, HEX FLG-NYL LOCK M6X1.0 CL8 Z & YNUT, HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y
-
160604-790 COVER, SHOCKCOVER, SHOCK
-
171704-236 SPRING, COMPRESSION - BLACKSPRING, COMPRESSION - BLACK
-
183604-200 RETAINER, SPRINGRETAINER, SPRING
-
193604-845 AXLEAXLE
-
208413-845 SCREW, CAP-HFH M8X1.25X45 CL10.9 SILVSCREW, CAP-HFH M8X1.25X45 CL10.9 SILV
-
218437-804 NUT, LOCKNUT, LOCK
-
222704-405 COMPLETE SHOCK ABSORBERCOMPLETE SHOCK ABSORBER
