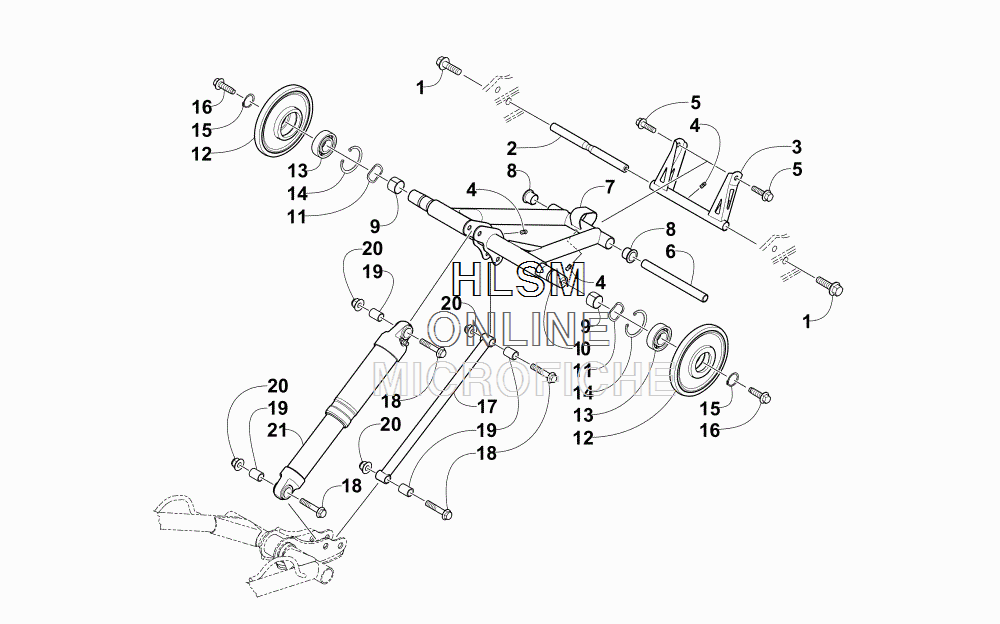

SUSPENSION REAR - REAR ARM ASSEMBLY для Arctic Cat XF 8000 CROSS-COUNTRY SNO PRO 141 (ORANGE) [S2015X8HCCUSO] - 2015 года выпуска
-
№АртикулНазвание
-
18408-826 SCREW, CAPSCREW, CAP
-
23604-857 AXLE, XBRC-HC-16.51X222.25 (M8X1.25)AXLE, XBRC-HC-16.51X222.25 (M8X1.25)
-
32704-422 ARM, REAR - BLACK (INC. ONE NO. 4)ARM, REAR - BLACK (INC. ONE NO. 4)
-
41623-010 ...FITTING, GREASE...FITTING, GREASE
-
58413-831 SCREW, CAPSCREW, CAP
-
63604-855 AXLE, ALUM-19.05 X 173.15-MACHAXLE, ALUM-19.05 X 173.15-MACH
-
72704-420 ARM, IDLER - BLACK (INC. TWO NO. 4 AND 8-9)ARM, IDLER - BLACK (INC. TWO NO. 4 AND 8-9)
-
83604-028 ...BUSHING, FLARED...BUSHING, FLARED
-
92604-852 ...BUSHING...BUSHING
-
103604-854 AXLE, INNER CARRIAGEAXLE, INNER CARRIAGE
-
111623-692 WASHER, WAVEWASHER, WAVE
-
122604-699 WHEEL, IDLER (INC. 13-14)WHEEL, IDLER (INC. 13-14)
-
130107-598 ...BEARING...BEARING
-
140123-798 ...RING INTERNAL RETAINING...RING INTERNAL RETAINING
-
151623-690 SNAP RING,EXTL-.925 IDSNAP RING,EXTL-.925 ID
-
161623-836 SCREW, CAPSCREW, CAP
-
171704-724 LINK, REAR SHOCK - BLACKLINK, REAR SHOCK - BLACK
-
188413-845 SCREW, CAPSCREW, CAP
-
193604-846 SLEEVESLEEVE
-
208437-804 NUT, LOCKNUT, LOCK
-
212704-567 SHOCK ABSORBERSHOCK ABSORBER
