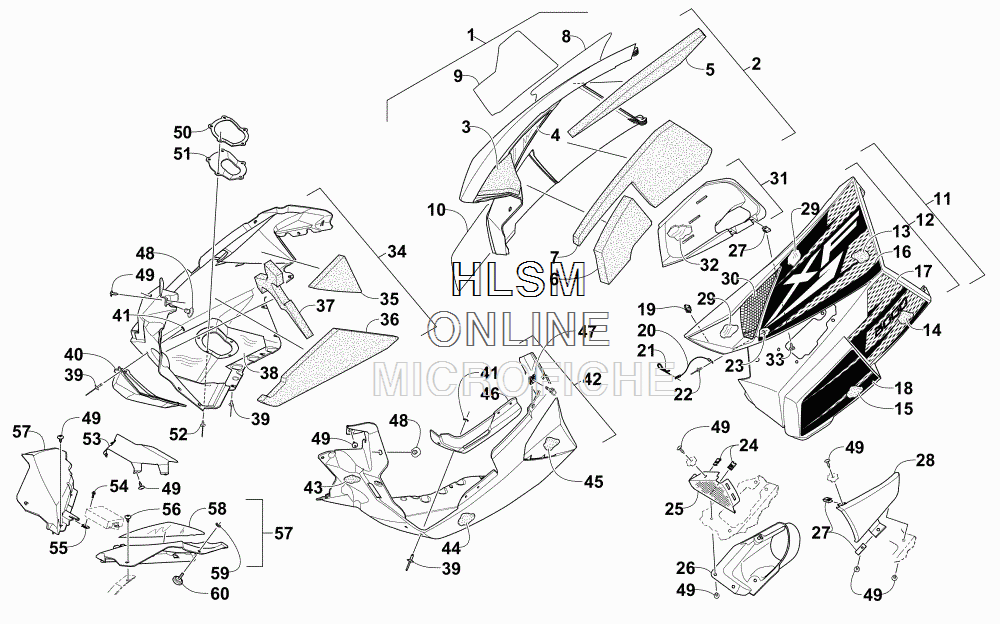

SKID PLATE AND SIDE PANEL ASSEMBLY для Arctic Cat XF 8000 CROSS-TOUR 141 (INTERNATIONAL) (ORANGE) [S2015X8HCTOSO] - 2015 года выпуска
-
№АртикулНазвание
-
14718-362 PANEL, SIDE W/DECALS - RIGHT - BLACK (INC. 2-10)PANEL, SIDE W/DECALS - RIGHT - BLACK (INC. 2-10)
-
23718-180 ...PANEL, SIDE W/O DECALS - RIGHT - BLACK (INC. 3-7)...PANEL, SIDE W/O DECALS - RIGHT - BLACK (INC. 3-7)
-
30617-626 ......FOAM, SIDE PANEL - UPPER FRONT - RIGHT......FOAM, SIDE PANEL - UPPER FRONT - RIGHT
-
46606-414 ......FOIL, PROTECTIVE......FOIL, PROTECTIVE
-
50617-628 ......FOAM, SIDE PANEL - UPPER REAR - RIGHT......FOAM, SIDE PANEL - UPPER REAR - RIGHT
-
60617-632 ......FOAM, SIDE PANEL - LOWER FRONT - RIGHT......FOAM, SIDE PANEL - LOWER FRONT - RIGHT
-
70617-634 ......FOAM, SIDE PANEL - LOWER REAR - RIGHT......FOAM, SIDE PANEL - LOWER REAR - RIGHT
-
81621-554 ...DECAL, SIDE PANEL - UPPER - RIGHT...DECAL, SIDE PANEL - UPPER - RIGHT
-
91621-562 ...DECAL, SIDE PANEL - LOWER REAR - RIGHT...DECAL, SIDE PANEL - LOWER REAR - RIGHT
-
101621-566 ...DECAL, SIDE PANEL - FORWARD - RIGHT...DECAL, SIDE PANEL - FORWARD - RIGHT
-
114718-363 PANEL, SIDE W/DECALS - LEFT - BLACK (INC. 12-18)PANEL, SIDE W/DECALS - LEFT - BLACK (INC. 12-18)
-
124718-553 ...PANEL, SIDE W/O DECALS - LEFT - BLACK (INC. 13-15)...PANEL, SIDE W/O DECALS - LEFT - BLACK (INC. 13-15)
-
130617-629 ......FOAM, SIDE PANEL - UPPER REAR - LEFT......FOAM, SIDE PANEL - UPPER REAR - LEFT
-
140617-635 ......FOAM, SIDE PANEL - LOWER REAR - LEFT......FOAM, SIDE PANEL - LOWER REAR - LEFT
-
150617-681 ......FOAM, SIDE PANEL - LOWER FRONT - LEFT......FOAM, SIDE PANEL - LOWER FRONT - LEFT
-
161621-555 ...DECAL, SIDE PANEL - UPPER - LEFT...DECAL, SIDE PANEL - UPPER - LEFT
-
171621-563 ...DECAL, SIDE PANEL - LOWER REAR - LEFT...DECAL, SIDE PANEL - LOWER REAR - LEFT
-
181621-567 ...DECAL, SIDE PANEL - FORWARD - LEFT...DECAL, SIDE PANEL - FORWARD - LEFT
-
191623-637 CLIP, U-NUTCLIP, U-NUT
-
200607-447 CABLECABLE
-
210605-283 CLIP, HAIRPINCLIP, HAIRPIN
-
228060-486 RIVET, BLIND-DH SS54 ZINCRIVET, BLIND-DH SS54 ZINC
-
238050-127 WASHER, FLATWASHER, FLAT
-
241623-052 CLIP, U-NUTCLIP, U-NUT
-
256606-925 SCREEN, INTAKESCREEN, INTAKE
-
262602-794 DUCT, INTAKE - INNERDUCT, INTAKE - INNER
-
271623-030 CLIP, U-NUTCLIP, U-NUT
-
282602-793 DUCT, INTAKE - OUTER - BLACKDUCT, INTAKE - OUTER - BLACK
-
290619-206 TAPE, ALUM FOIL - 6" X 30 FTTAPE, ALUM FOIL - 6" X 30 FT
-
305706-531 SCREEN, INTAKESCREEN, INTAKE
-
311702-369 DUCT, AIR - CLUTCH (INC. 32)DUCT, AIR - CLUTCH (INC. 32)
-
326606-694 F...OIL, PROTECTIVEF...OIL, PROTECTIVE
-
330623-797 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
343718-422 PLATE, SKID W/O DECALS - RIGHT - BLACK (INC. 35-41)PLATE, SKID W/O DECALS - RIGHT - BLACK (INC. 35-41)
-
350617-640 ...FOAM, SKID PLATE - UPPER REAR - RIGHT...FOAM, SKID PLATE - UPPER REAR - RIGHT
-
360617-638 ...FOAM, SKID PLATE - CENTER FRONT - RIGHT...FOAM, SKID PLATE - CENTER FRONT - RIGHT
-
370617-636 ...FOAM, SKID PLATE - UPPER FRONT - RIGHT...FOAM, SKID PLATE - UPPER FRONT - RIGHT
-
382612-850 ...FOIL, PROTECTIVE...FOIL, PROTECTIVE
-
398061-708 ...RIVET, BLIND-LF SS66 BLACK...RIVET, BLIND-LF SS66 BLACK
-
402612-754 ...DEFLECTOR, HEAT...DEFLECTOR, HEAT
-
410123-802 ...WASHER, FLAT...WASHER, FLAT
-
423718-789 PLATE, SKID W/O DECALS - LEFT - BLACK (INC. 43-46)PLATE, SKID W/O DECALS - LEFT - BLACK (INC. 43-46)
-
430617-637 ...FOAM, SKID PLATE - UPPER FRONT - LEFT...FOAM, SKID PLATE - UPPER FRONT - LEFT
-
440617-639 ...FOAM, SKID PLATE - CENTER FRONT - LEFT...FOAM, SKID PLATE - CENTER FRONT - LEFT
-
450617-641 ...FOAM, SKID PLATE - UPPER REAR - LEFT...FOAM, SKID PLATE - UPPER REAR - LEFT
-
466606-613 ...PANEL, REINFORCEMENT...PANEL, REINFORCEMENT
-
472623-005 CLIP, RETAININGCLIP, RETAINING
-
486606-592 PIN, RETAININGPIN, RETAINING
-
491623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
502612-796 PLATE, EXHAUST OUTLETPLATE, EXHAUST OUTLET
-
512612-795 SEAL, EXHAUST OUTLETSEAL, EXHAUST OUTLET
-
528061-710 RIVET, BLIND - LARGE FLANGE - SS68 - BLACKRIVET, BLIND - LARGE FLANGE - SS68 - BLACK
-
536606-295 SHIELD, HEAT - ECMSHIELD, HEAT - ECM
-
548408-620 SCREW, CAPSCREW, CAP
-
550423-031 CLIP, U-NUTCLIP, U-NUT
-
560623-784 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
576606-342 FASCIA, FRONT - RIGHT - BLACKFASCIA, FRONT - RIGHT - BLACK
-
573718-303 FASCIA, FRONT - LEFT - BLACK (INC. 58)FASCIA, FRONT - LEFT - BLACK (INC. 58)
-
586606-405 ...FOIL, PROTECTIVE...FOIL, PROTECTIVE
-
592623-001 NUT, PUSHNUT, PUSH
-
601623-999 SCREW, THUMBSCREW, THUMB
