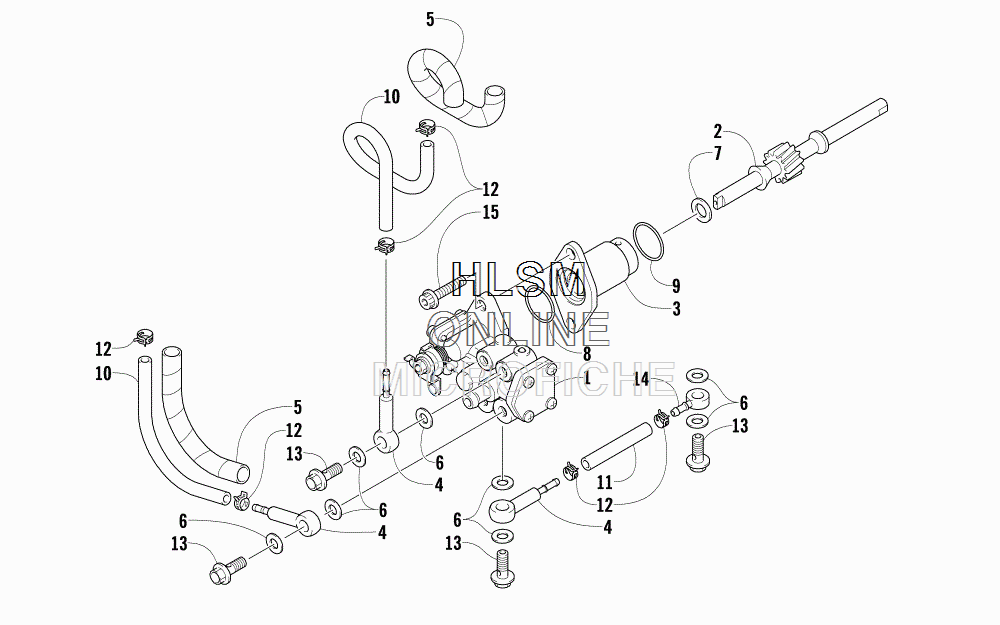

OIL PUMP для Arctic Cat XF 8000 CROSS-TOUR 141 (ORANGE) [S2015X8HCTUSO] - 2015 года выпуска
-
№АртикулНазвание
-
13007-894 PUMP, OILPUMP, OIL
-
23007-895 GEAR, DRIVENGEAR, DRIVEN
-
33007-916 RETAINER,OIL PUMP INPUT SHAFTRETAINER,OIL PUMP INPUT SHAFT
-
43003-217 CHECK VALVECHECK VALVE
-
53005-032 PROTECTORPROTECTOR
-
63402-009 WASHER, DRIVEN, M6.2X11X1.2WASHER, DRIVEN, M6.2X11X1.2
-
73423-300 SHIMSHIM
-
83008-030 O-RINGO-RING
-
93005-126 O-RINGO-RING
-
103008-035 HOSE, M3X7X600HOSE, M3X7X600
-
113005-357 HOSE, M2.5X7X600HOSE, M2.5X7X600
-
123008-037 CLAMP,HOSE,M6CLAMP,HOSE,M6
-
133004-346 BOLT, UNIONBOLT, UNION
-
143003-661 UNION, GEAR LUBEUNION, GEAR LUBE
-
153007-445 SCREW, CAPSCREW, CAP
