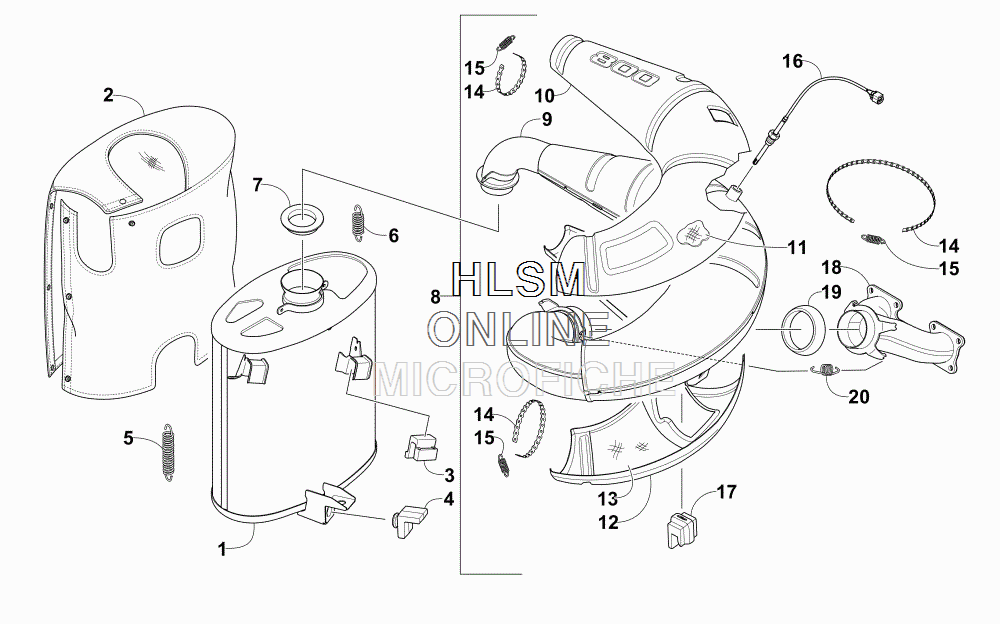

EXHAUST ASSEMBLY для Arctic Cat XF 8000 HIGH COUNTRY 141 SNO PRO (ORANGE) [S2015X8HHIUSO] - 2015 года выпуска
-
№АртикулНазвание
-
11712-772 RESONATOR,EXHAUST-WELD TRESONATOR,EXHAUST-WELD T
-
22612-573 COVER, RESONATORCOVER, RESONATOR
-
32612-893 GROMMET, RUBBER - UPPERGROMMET, RUBBER - UPPER
-
42612-706 GROMMET, RESONATOR MOUNT LOWERGROMMET, RESONATOR MOUNT LOWER
-
52612-949 SPRING, EXHAUSTSPRING, EXHAUST
-
60612-471 SPRING, EXTENSIONSPRING, EXTENSION
-
71612-619 GASKET, EXHAUST - TAILPIPEGASKET, EXHAUST - TAILPIPE
-
81712-771 CHAMBER, EXPANSION - ASSEMBLY (INC. 9-15)CHAMBER, EXPANSION - ASSEMBLY (INC. 9-15)
-
91712-792 ...CHAMBER, EXPANSION...CHAMBER, EXPANSION
-
102612-797 ...COVER,EXP CHAMBER-UPR...COVER,EXP CHAMBER-UPR
-
112612-660 ...PACKING, EXPANSION CHAMBER - UPPER...PACKING, EXPANSION CHAMBER - UPPER
-
122612-659 ...COVER, EXPANSION CHAMBER - LOWER...COVER, EXPANSION CHAMBER - LOWER
-
132612-661 ...PACKING, EXPANSION CHAMBER - LOWER...PACKING, EXPANSION CHAMBER - LOWER
-
140624-552 ...TIE, PERFORATED BAND - 5 FT...TIE, PERFORATED BAND - 5 FT
-
140624-541 ...TIE, PERFORATED BAND - 25 FT...TIE, PERFORATED BAND - 25 FT
-
151612-178 ...SPRING, EXHAUST...SPRING, EXHAUST
-
160630-330 SENSOR, EXHAUST TEMPSENSOR, EXHAUST TEMP
-
172612-667 GROMMET, EXPANSION CHAMBER MOUNTGROMMET, EXPANSION CHAMBER MOUNT
-
181712-559 MANIFOLD, EXHAUSTMANIFOLD, EXHAUST
-
192612-059 GASKET, EXHAUST - MANIFOLDGASKET, EXHAUST - MANIFOLD
-
202612-399 SPRING,EXTENSIONSPRING,EXTENSION
