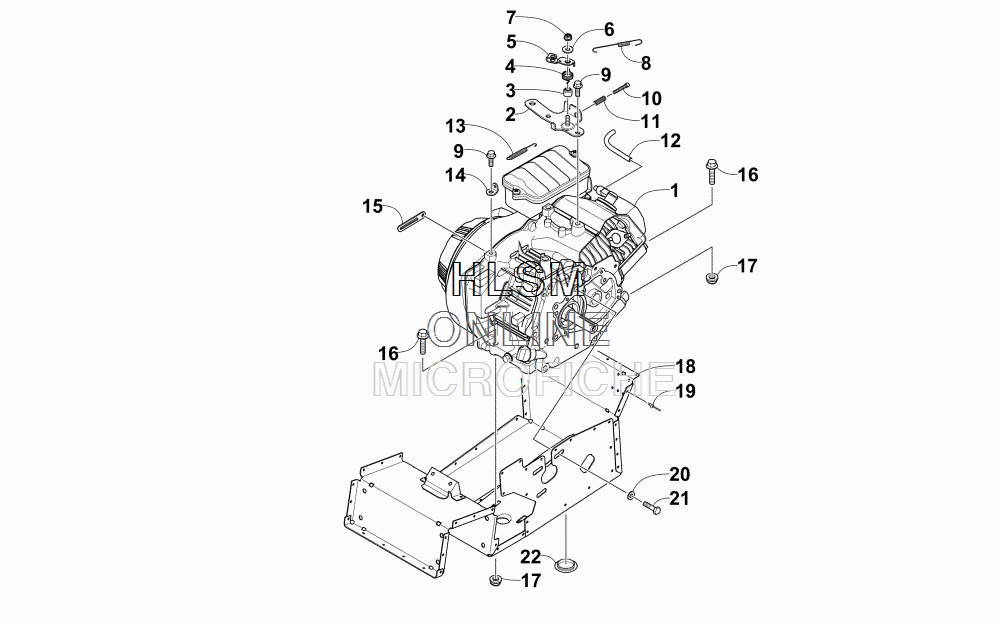

ENGINE AND RELATED PARTS для Arctic Cat ZR 120 (BLACK) [S2015ZRAAAUSB] - 2015 года выпуска

№

Артикул

Название
1

0662-560 ENGINE, 70CL1-030

ENGINE, 70CL1-030

130 ₽
2

2670-195 BRACKET, MOUNTING - THROTTLE CABLE

BRACKET, MOUNTING - THROTTLE CABLE

3 530 ₽
3

2670-119 SPACER

SPACER

1 870 ₽
4

2670-134 SPRING,RETURN-THROTTLE LEVER

SPRING,RETURN-THROTTLE LEVER

960 ₽
5

2670-194 LEVER, THROTTLE CABLE

LEVER, THROTTLE CABLE

2 700 ₽
6

8050-222 WASHER,FLAT- 1/4 X .734 X .063 Z & Y

WASHER,FLAT- 1/4 X .734 X .063 Z & Y

110 ₽
7

8047-366 NUT,HEX FLG-NY LOCK 1/4-20 GR F Z & Y

NUT,HEX FLG-NY LOCK 1/4-20 GR F Z & Y

60 ₽
8

2670-193 SPRING, GOVERNOR ARM

SPRING, GOVERNOR ARM

2 280 ₽
9

8408-816 SCREW,CAP-HFH M8X1.25X16 CL8.8 Z & Y

SCREW,CAP-HFH M8X1.25X16 CL8.8 Z & Y

110 ₽
10

1623-901 SCREW,CAP-HSH #10-32X1.50 Z & Y-KNURLED

SCREW,CAP-HSH #10-32X1.50 Z & Y-KNURLED

150 ₽
11

2670-133 SPRING,ADJUSTER-THROTTLE STOP

SPRING,ADJUSTER-THROTTLE STOP

1 450 ₽
12

0610-821 HOSE, BREATHER - 7.5 IN

HOSE, BREATHER - 7.5 IN

2 700 ₽
13

2670-127 SPRING, RETURN-GOVERNOR ARM

SPRING, RETURN-GOVERNOR ARM

2 280 ₽
14

4606-770 BRACKET, RETAINING

BRACKET, RETAINING

1 450 ₽
15

1623-984 CLAMP, WIRE - 76.14MM LG W/6.25 HOLE

CLAMP, WIRE - 76.14MM LG W/6.25 HOLE

940 ₽
16

8020-134 SCREW,CAP-HFH 5/16-18 X 1.25 G5 Z & Y

SCREW,CAP-HFH 5/16-18 X 1.25 G5 Z & Y

230 ₽
17

8047-426 NUT, HEX - FLANGE - NY LOCK

NUT, HEX - FLANGE - NY LOCK

110 ₽
18

3706-775 FRONT END - PAINTED (BLACK)

FRONT END - PAINTED (BLACK)

56 990 ₽
19

8060-484 RIVET, BLIND-DH SS53 ZINC

RIVET, BLIND-DH SS53 ZINC

60 ₽
20

8050-247 WASHER,FLAT- 5/16 X .688 X .065 Z & Y

WASHER,FLAT- 5/16 X .688 X .065 Z & Y

20 ₽
21

1623-550 SCREW, CAP-HH 5/16-24 X .75 W/2353

SCREW, CAP-HH 5/16-24 X .75 W/2353

520 ₽
22

0623-822 PLUG, 1-1/4"

PLUG, 1-1/4"

210 ₽
