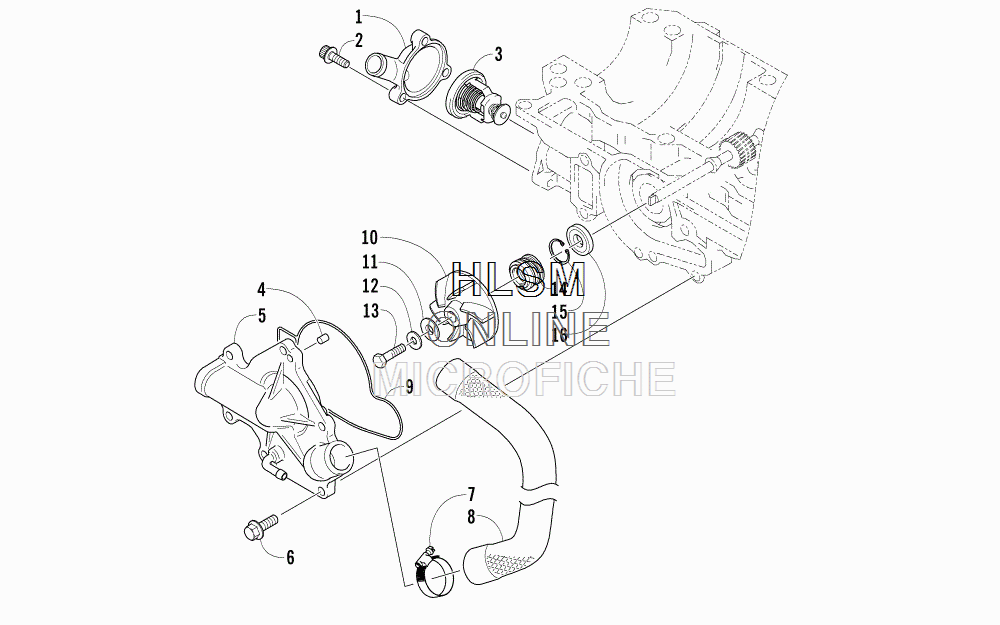

WATER PUMP AND THERMOSTAT для Arctic Cat ZR 4000 RR (INTERNATIONAL) (GREEN) [S2015ZRCRROSG] - 2015 года выпуска
-
№АртикулНазвание
-
13006-914 CAP, THERMOSTATCAP, THERMOSTAT
-
23007-446 BOLT,THERMOSTAT CAPBOLT,THERMOSTAT CAP
-
33007-041 THERMOSTAT,WATERTHERMOSTAT,WATER
-
43005-899 PIN, DOWELPIN, DOWEL
-
53006-942 COVER, WATER PUMPCOVER, WATER PUMP
-
63007-409 BOLTBOLT
-
73006-324 CLAMP, HOSE - '02 440 SNO PROCLAMP, HOSE - '02 440 SNO PRO
-
83006-360 HOSE, WATER INLET - '02 440 SNO PROHOSE, WATER INLET - '02 440 SNO PRO
-
93006-356 O-RING - '02 440 SNO PROO-RING - '02 440 SNO PRO
-
103005-697 IMPELLER,WATER PUMPIMPELLER,WATER PUMP
-
113003-431 WASHER, SHAFT - 6MMWASHER, SHAFT - 6MM
-
123003-432 WASHER - 6MMWASHER - 6MM
-
133003-426 BOLT, SHAFTBOLT, SHAFT
-
143007-180 SEALSEAL
-
153007-714 CIRCLIP,BEARING FASTENERCIRCLIP,BEARING FASTENER
-
163007-431 OIL SEAL-10X22X6OIL SEAL-10X22X6
