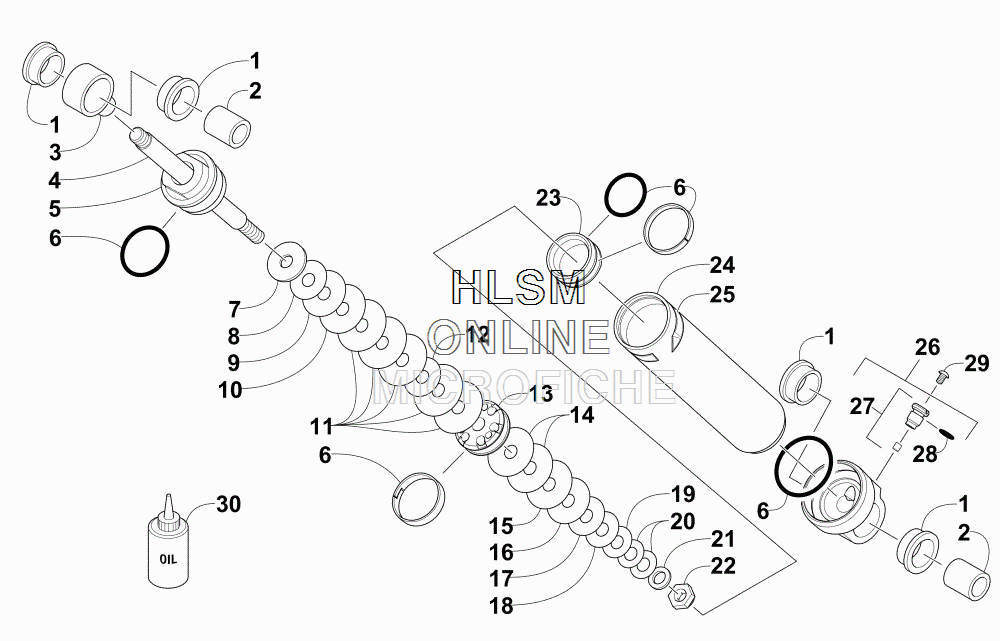

SUSPENSION REAR - REAR ARM SHOCK ABSORBER для Arctic Cat ZR 6000 SNO PRO ES (ORANGE) [S2015ZRDSPUSO] - 2015 года выпуска
-
№АртикулНазвание
-
-2704-685 SHOCK, REAR ARMSHOCK, REAR ARM
-
13604-738 BUSHINGBUSHING
-
23604-737 SLEEVESLEEVE
-
33604-796 EYELET, SHOCKEYELET, SHOCK
-
43604-776 ROD, SHOCKROD, SHOCK
-
54604-127 BEARING, ENDCAP - LONG W/BLEED - ASSEMBLY - 2"BEARING, ENDCAP - LONG W/BLEED - ASSEMBLY - 2"
-
64604-194 KIT, SEAL/REBUILDKIT, SEAL/REBUILD
-
73604-874 WASHER, TOP OUTWASHER, TOP OUT
-
83603-144 VALVE, 1.100 X 0.008 IN.VALVE, 1.100 X 0.008 IN.
-
93603-185 VALVE, 1.300 X 0.010 IN.VALVE, 1.300 X 0.010 IN.
-
103604-873 VALVE, 1.425 X 0.010 IN.VALVE, 1.425 X 0.010 IN.
-
113604-871 VALVE, 1.600 X 0.010 IN.VALVE, 1.600 X 0.010 IN.
-
123603-142 VALVE, 1.100 X 0.006 IN.VALVE, 1.100 X 0.006 IN.
-
133604-870 PISTON, 0.055 IN. - ORIFICEPISTON, 0.055 IN. - ORIFICE
-
143604-872 VALVE, 1.425 X 0.016 IN.VALVE, 1.425 X 0.016 IN.
-
153604-886 VALVE, 1.425 X 0.012 IN.VALVE, 1.425 X 0.012 IN.
-
163603-186 VALVE, 1.300 X 0.012 IN.VALVE, 1.300 X 0.012 IN.
-
173603-146 VALVE, 1.100 X 0.012 IN.VALVE, 1.100 X 0.012 IN.
-
183603-126 VALVE, 1.000 X 0.012 IN.VALVE, 1.000 X 0.012 IN.
-
193603-117 VALVE, 0.900 X 0.016 IN.VALVE, 0.900 X 0.016 IN.
-
203603-107 VALVE, 0.800 X 0.016 IN.VALVE, 0.800 X 0.016 IN.
-
213604-775 WASHER, BACKUPWASHER, BACKUP
-
223604-739 NUTNUT
-
233604-876 PISTON, FLOATINGPISTON, FLOATING
-
243604-880 BODY, SHOCKBODY, SHOCK
-
251621-728 DECAL, WARNING - HIGH PRESSUREDECAL, WARNING - HIGH PRESSURE
-
263604-894 END CAP, SHOCK - ASSEMBLY (INC. 27-28)END CAP, SHOCK - ASSEMBLY (INC. 27-28)
-
273604-751 ...VALVE, PRESSURE (INC. 28)...VALVE, PRESSURE (INC. 28)
-
283604-733 ......O-RING, VALVE......O-RING, VALVE
-
293604-750 SCREW, MACHINESCREW, MACHINE
-
305639-530 OIL, SHOCK - 1 QTOIL, SHOCK - 1 QT
