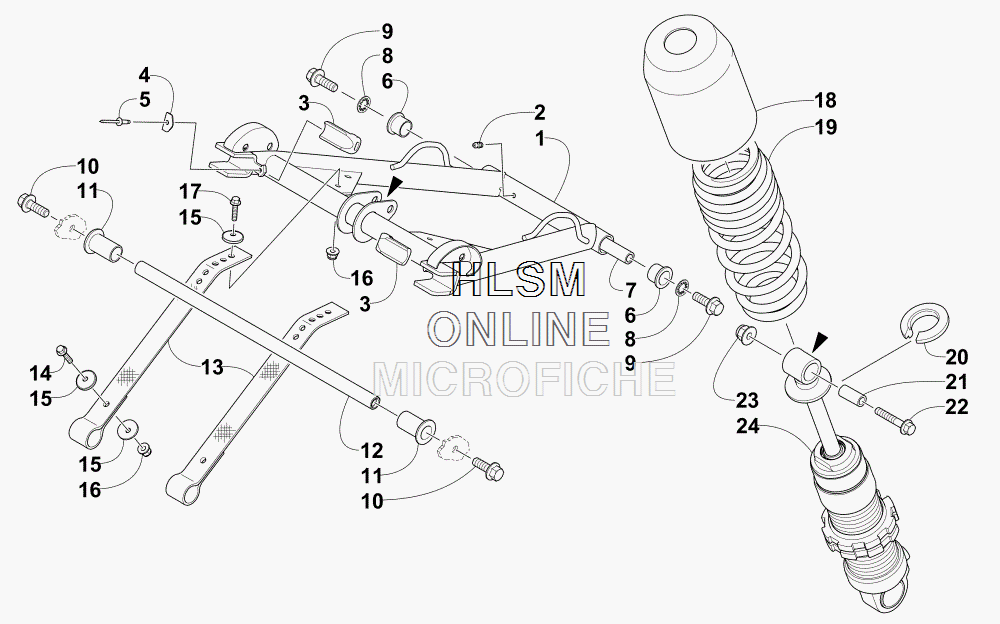

SUSPENSION REAR - FRONT ARM ASSEMBLY для Arctic Cat ZR 7000 LXR (GREEN) [S2015ZRULXUSG] - 2015 года выпуска
-
№АртикулНазвание
-
12704-402 ARM,FRT-W/PIVOT-BLK FABR (INC. 2-6)ARM,FRT-W/PIVOT-BLK FABR (INC. 2-6)
-
21623-010 ...FITTING, GREASE...FITTING, GREASE
-
33604-141 ...BUMPER, FRONT SLIDER...BUMPER, FRONT SLIDER
-
43604-968 ...PLATE, RETAINING...PLATE, RETAINING
-
58060-708 ...RIVET...RIVET
-
63604-028 ...BUSHING, FLARED...BUSHING, FLARED
-
73604-634 AXLEAXLE
-
81623-992 WASHER, INTERNAL TOOTH LOCKWASHER, INTERNAL TOOTH LOCK
-
98413-031 SCREW, CAPSCREW, CAP
-
108408-041 SCREW, CAPSCREW, CAP
-
113604-233 BUSHING, FLAREDBUSHING, FLARED
-
123604-663 AXLE, FRONT SLIDERAXLE, FRONT SLIDER
-
133604-823 STRAP, LIMITERSTRAP, LIMITER
-
148408-630 SCREW, CAPSCREW, CAP
-
158450-109 WASHERWASHER
-
168427-602 NUT, LOCKNUT, LOCK
-
178408-620 SCREW, CAPSCREW, CAP
-
180604-790 COVER, SHOCKCOVER, SHOCK
-
191704-461 SPRING, COMPRESSION - BLACKSPRING, COMPRESSION - BLACK
-
203604-200 RETAINER, SPRINGRETAINER, SPRING
-
213604-273 AXLEAXLE
-
228408-045 SCREW, CAPSCREW, CAP
-
238427-002 NUT, LOCKNUT, LOCK
-
242704-375 SHOCK ABSORBERSHOCK ABSORBER
