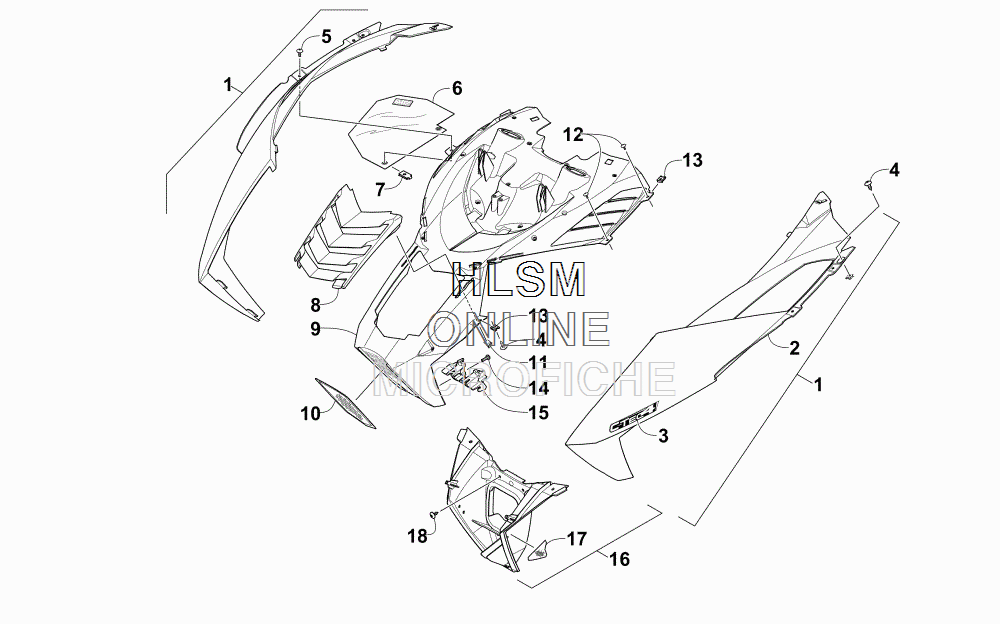

HOOD ASSEMBLY для Arctic Cat ZR 7000 SNO PRO LTD EL TIGRE (GREEN) [S2015ZRUEEUSG] - 2015 года выпуска
-
№АртикулНазвание
-
14718-242 HOOD W/DECALS - RIGHT - "7000 ET" (BLACK) (INC. 2-3)HOOD W/DECALS - RIGHT - "7000 ET" (BLACK) (INC. 2-3)
-
26606-318 ...HOOD W/O DECALS - RIGHT - (BLACK)...HOOD W/O DECALS - RIGHT - (BLACK)
-
30621-993 ......DECAL, HOOD - "C-TEC4"......DECAL, HOOD - "C-TEC4"
-
14718-243 HOOD W/DECALS - LEFT - "7000 ET" (BLACK) (INC. 2-3)HOOD W/DECALS - LEFT - "7000 ET" (BLACK) (INC. 2-3)
-
23718-313 ...HOOD,W/FOIL-LH-(BLACK)...HOOD,W/FOIL-LH-(BLACK)
-
40623-784 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
51623-031 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
61712-899 SHIELD, HEAT - RIGHTSHIELD, HEAT - RIGHT
-
71623-030 CLIP, U-NUTCLIP, U-NUT
-
86606-388 GRILLE, INTERCOOLERGRILLE, INTERCOOLER
-
96606-510 PLENUM, INTAKE - UPPERPLENUM, INTAKE - UPPER
-
100608-696 SCREEN, VENTSCREEN, VENT
-
111623-694 CLIP, RETAININGCLIP, RETAINING
-
120623-797 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
131623-939 CLIP, U-NUTCLIP, U-NUT
-
141623-933 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
156606-822 RETAINER, PLENUMRETAINER, PLENUM
-
165706-992 PLENUM, INTAKE - LOWER FRONT (INC. 17)PLENUM, INTAKE - LOWER FRONT (INC. 17)
-
170621-989 ...DECAL, REFLECTOR - (AMBER)...DECAL, REFLECTOR - (AMBER)
-
181623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
