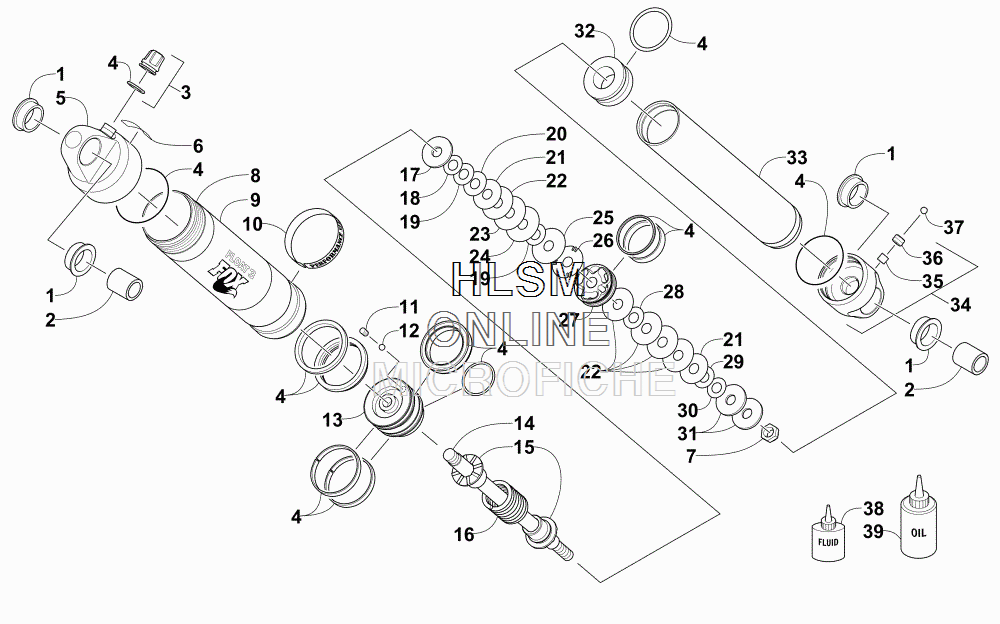

SUSPENSION FRONT - SHOCK ABSORBER для Arctic Cat ZR 7000 SNO PRO LTD (ORANGE) [S2015ZRULEUSO] - 2015 года выпуска
-
№АртикулНазвание
-
-3703-343 SHOCK ABSORBERSHOCK ABSORBER
-
11604-222 BUSHING - (0.125 IN.)BUSHING - (0.125 IN.)
-
22604-223 SLEEVESLEEVE
-
33603-366 CAP, AIR VALVECAP, AIR VALVE
-
43603-293 KIT, SEAL/CAP REBUILD (INC. 7)KIT, SEAL/CAP REBUILD (INC. 7)
-
53603-333 ...END CAP, SHOCK...END CAP, SHOCK
-
63603-359 DECAL, PSIDECAL, PSI
-
73603-018 NUT, LOCKNUT, LOCK
-
83603-290 BODY, SHOCK - UPPER - (8.80 IN.TLG)BODY, SHOCK - UPPER - (8.80 IN.TLG)
-
93603-369 DECAL, "FOX"DECAL, "FOX"
-
103603-365 DECAL, "PERFORMANCE SERIES"DECAL, "PERFORMANCE SERIES"
-
111603-940 SCREW, SETSCREW, SET
-
121604-315 BALL, BLEEDBALL, BLEED
-
133603-291 BEARING - ASSEMBLYBEARING - ASSEMBLY
-
143603-287 ROD, SHOCKROD, SHOCK
-
152603-522 GUIDE, SPRINGGUIDE, SPRING
-
162603-656 SPRINGSPRING
-
170603-540 WASHER, TOP OUTWASHER, TOP OUT
-
182603-045 VALVE,SHOCK- (0.700 DIA X 0.010)VALVE,SHOCK- (0.700 DIA X 0.010)
-
190603-334 VALVE, (0.800 X 0.008 IN.)VALVE, (0.800 X 0.008 IN.)
-
200603-337 VALVE, (0.900 X 0.008 IN.)VALVE, (0.900 X 0.008 IN.)
-
210603-341 VALVE, (1.000 X 0.010 IN.)VALVE, (1.000 X 0.010 IN.)
-
220603-343 VALVE, (1.100 X 0.008 IN.)VALVE, (1.100 X 0.008 IN.)
-
230603-347 VALVE, (1.250 X 0.010 IN.)VALVE, (1.250 X 0.010 IN.)
-
240603-350 VALVE, (1.300 X 0.010 IN.)VALVE, (1.300 X 0.010 IN.)
-
250603-348 VALVE, (1.300 X 0.006 IN.)VALVE, (1.300 X 0.006 IN.)
-
263603-345 VALVE, (1.300 X 0.010 IN.)VALVE, (1.300 X 0.010 IN.)
-
273603-397 PISTON, 3-PORTPISTON, 3-PORT
-
280603-895 VALVE, (0.800 X 0.004 IN.)VALVE, (0.800 X 0.004 IN.)
-
290603-338 VALVE, (0.900 X 0.010 IN.)VALVE, (0.900 X 0.010 IN.)
-
300603-335 VALVE, (0.800 X 0.010 IN.)VALVE, (0.800 X 0.010 IN.)
-
312604-966 WASHER, TOP OUTWASHER, TOP OUT
-
323603-023 PISTON, FLOATING W/O-RINGPISTON, FLOATING W/O-RING
-
333603-286 BODY, SHOCK - LOWERBODY, SHOCK - LOWER
-
343603-332 END CAP, SHOCK (INC. 35-36)END CAP, SHOCK (INC. 35-36)
-
351604-428 ...PLUG, RUBBER - VALVE...PLUG, RUBBER - VALVE
-
362603-338 ...SCREW, SET...SCREW, SET
-
372603-337 BALL, AIR VALVEBALL, AIR VALVE
-
384639-012 FLUID, FLOAT SHOCK - (8 OZ)FLUID, FLOAT SHOCK - (8 OZ)
-
395639-530 OIL, SHOCK - (1 QT)OIL, SHOCK - (1 QT)
