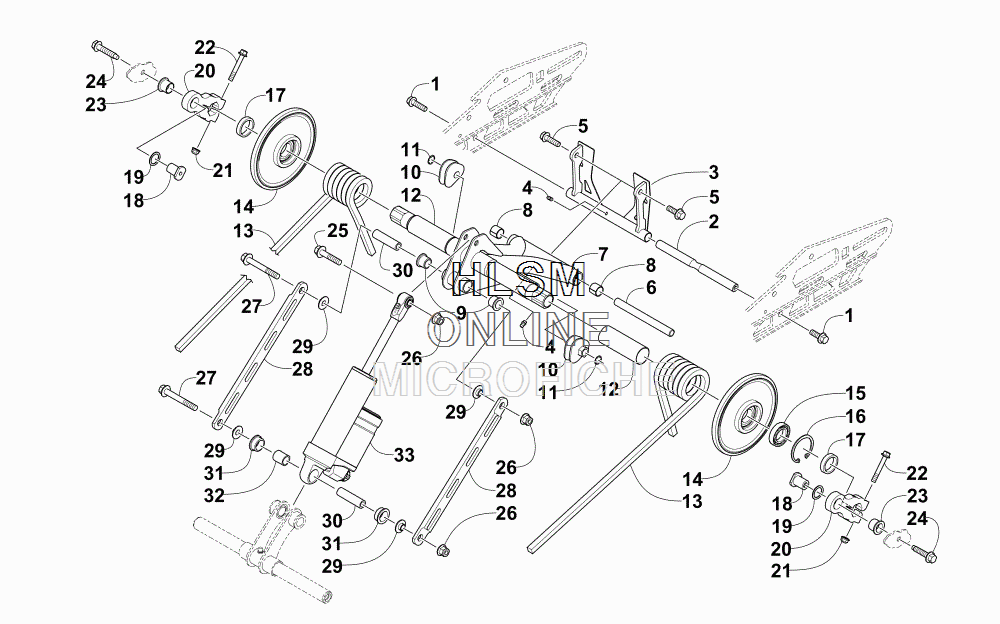

SUSPENSION REAR - REAR ARM ASSEMBLY для Arctic Cat ZR 7000 SNO PRO RR (INTERNATIONAL) (GREEN) [S2015ZRURROSG] - 2015 года выпуска
-
№АртикулНазвание
-
18413-031 SCREW, CAPSCREW, CAP
-
23604-965 AXLEAXLE
-
32704-389 ARM, REAR - (BLACK) (INC. ONE NO. 4)ARM, REAR - (BLACK) (INC. ONE NO. 4)
-
41623-010 ......FITTING, GREASE......FITTING, GREASE
-
58408-041 SCREW, CAPSCREW, CAP
-
63604-638 AXLEAXLE
-
72704-533 ARM, IDLER - (BLACK) (INC. ONE NO. 4 AND 8-9)ARM, IDLER - (BLACK) (INC. ONE NO. 4 AND 8-9)
-
82603-481 ...BEARING...BEARING
-
90104-386 ...BUSHING...BUSHING
-
101604-204 BLOCK, SPRING ADJUSTER - RIGHT - (BLACK)BLOCK, SPRING ADJUSTER - RIGHT - (BLACK)
-
101604-205 BLOCK, SPRING ADJUSTER - LEFT - (BLACK)BLOCK, SPRING ADJUSTER - LEFT - (BLACK)
-
110623-138 RING, RETAININGRING, RETAINING
-
123604-819 SLEEVE, SPRING - (98 MM)SLEEVE, SPRING - (98 MM)
-
131704-576 SPRING, SUSPENSION - RIGHT - (BLACK)SPRING, SUSPENSION - RIGHT - (BLACK)
-
131704-577 SPRING, SUSPENSION - LEFT - (BLACK)SPRING, SUSPENSION - LEFT - (BLACK)
-
143604-264 WHEEL, IDLER (INC. 15-16)WHEEL, IDLER (INC. 15-16)
-
153604-257 ...BEARING - (30 MM)...BEARING - (30 MM)
-
163604-256 ...RING, RETAINING...RING, RETAINING
-
173604-289 SPACER, PIVOT - IDLER ARMSPACER, PIVOT - IDLER ARM
-
183604-979 AXLE, OFFSET ARM - M10AXLE, OFFSET ARM - M10
-
193604-930 WASHER - (0.035 IN.)WASHER - (0.035 IN.)
-
202704-218 PIVOT - IDLER ARM (INC. 21-23)PIVOT - IDLER ARM (INC. 21-23)
-
218427-802 ...NUT, LOCK...NUT, LOCK
-
228408-860 ...SCREW, CAP...SCREW, CAP
-
233604-713 ...BUSHING, FLARED...BUSHING, FLARED
-
242623-002 SCREW, CAPSCREW, CAP
-
258408-045 SCREW, CAPSCREW, CAP
-
268427-002 NUT, LOCKNUT, LOCK
-
278408-090 SCREW, CAPSCREW, CAP
-
282704-230 LINK, SHOCK (INC. 29)LINK, SHOCK (INC. 29)
-
293604-266 ...INSERT, RAIL...INSERT, RAIL
-
303604-694 AXLEAXLE
-
313604-804 BUSHING - (0.085 IN.)BUSHING - (0.085 IN.)
-
323604-802 SLEEVESLEEVE
-
332704-634 SHOCK ABSORBER - (14.51 IN.)SHOCK ABSORBER - (14.51 IN.)
