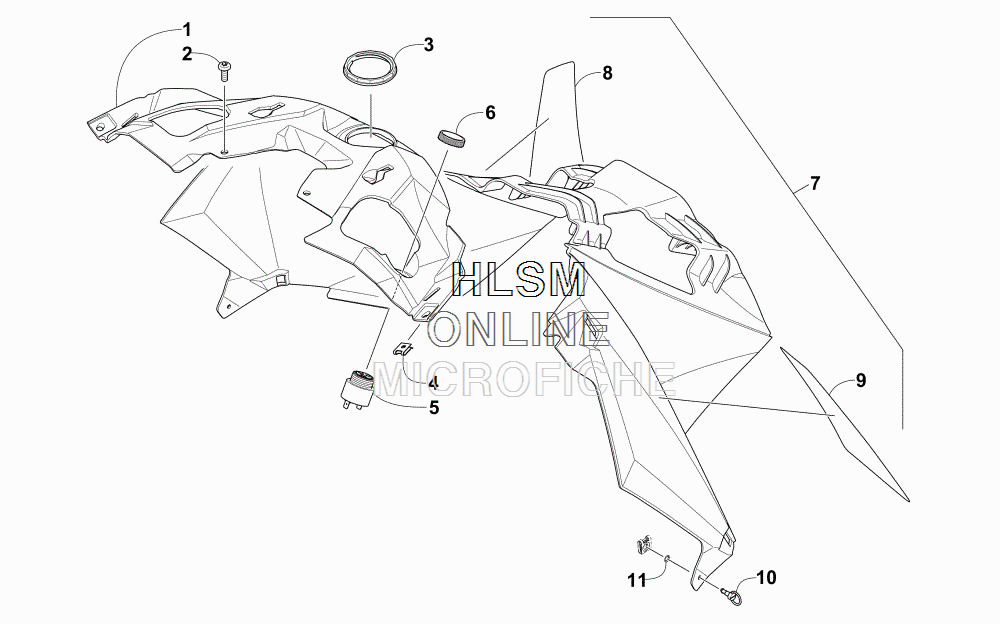

CONSOLE ASSEMBLY для Arctic Cat ZR 8000 SNO PRO (ORANGE) [S2015ZRHSPUSO] - 2015 года выпуска
-
№АртикулНазвание
-
16606-305 CONSOLE, UPPER - (BLACK)CONSOLE, UPPER - (BLACK)
-
20423-396 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
36606-390 NUT, RETAININGNUT, RETAINING
-
41623-939 CLIP, U-NUTCLIP, U-NUT
-
50630-243 ALARM, REVERSE (INC. 6)ALARM, REVERSE (INC. 6)
-
60630-017 ...RING, RETAINING...RING, RETAINING
-
73718-998 CONSOLE, W/DECAL - LOWER - (BLACK) (INC. 8-9)CONSOLE, W/DECAL - LOWER - (BLACK) (INC. 8-9)
-
89611-499 ...DECAL, WARNING (ENGLISH)...DECAL, WARNING (ENGLISH)
-
99611-498 ...DECAL, WARNING (FRENCH)...DECAL, WARNING (FRENCH)
-
102623-003 PIN, RETAINING - (16MM)PIN, RETAINING - (16MM)
-
112623-004 NUT, PUSHNUT, PUSH
