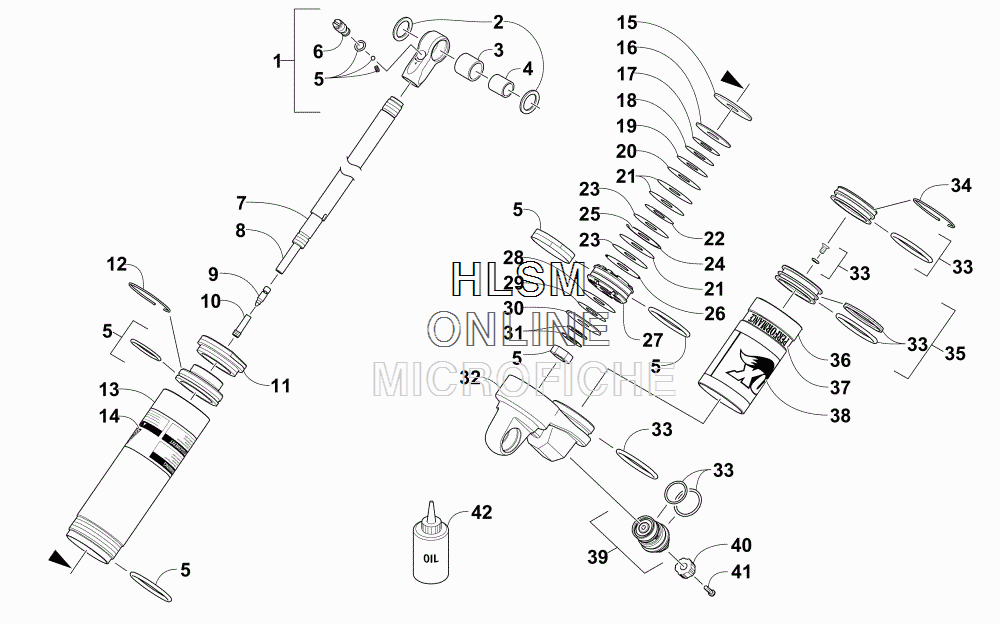

SUSPENSION REAR - REAR ARM SHOCK ABSORBER для Arctic Cat ZR 8000 SNO PRO RR (GREEN) [S2015ZRHRRUSG] - 2015 года выпуска

№

Артикул

Название
-

2704-634 SHOCK ABSORBER - (RR) - (14.51 IN.)

SHOCK ABSORBER - (RR) - (14.51 IN.)

130 ₽
1

4604-024 EYELET, SHOCK - ASSEMBLY (INC. 2-6)

EYELET, SHOCK - ASSEMBLY (INC. 2-6)

20 380 ₽
2

4604-077 ...SPACER

...SPACER

8 940 ₽
3

3603-399 ...BEARING

...BEARING

3 740 ₽
4

4604-076 ...SLEEVE

...SLEEVE

2 910 ₽
5

4604-027 ...KIT, REBUILD - SHOCK

...KIT, REBUILD - SHOCK

21 000 ₽
6

4604-022 ...KNOB, DAMPING - EYELET

...KNOB, DAMPING - EYELET

4 150 ₽
7

4604-025 SHAFT, SHOCK - (0.620 OD X 7.90 IN. TLG)

SHAFT, SHOCK - (0.620 OD X 7.90 IN. TLG)

24 540 ₽
8

4604-023 ROD, DAMPING ADJUSTER - ASSEMBLY - (0.175 OD X 5.80 IN.)

ROD, DAMPING ADJUSTER - ASSEMBLY - (0.175 OD X 5.80 IN.)

2 700 ₽
9

2604-953 NEEDLE, DAMPING W/O-RING

NEEDLE, DAMPING W/O-RING

6 650 ₽
10

4604-029 VALVE, CHECK - ASSEMBLY

VALVE, CHECK - ASSEMBLY

13 310 ₽
11

4604-020 CAP, BEARING

CAP, BEARING

5 610 ₽
12

0604-992 RING, RETAINING

RING, RETAINING

920 ₽
13

4604-021 BODY, SHOCK

BODY, SHOCK

16 010 ₽
14

3603-418 DECAL, WARNING

DECAL, WARNING

1 870 ₽
15

4604-026 SPACER

SPACER

1 870 ₽
16

2604-449 WASHER, TOP OUT

WASHER, TOP OUT

2 070 ₽
17

2604-480 VALVE, (0.950 X 0.010 IN.)

VALVE, (0.950 X 0.010 IN.)

2 070 ₽
18

2604-485 VALVE, (1.100 X 0.008 IN.)

VALVE, (1.100 X 0.008 IN.)

1 020 ₽
19

2604-491 VALVE, (1.350 X 0.008 IN.)

VALVE, (1.350 X 0.008 IN.)

1 870 ₽
20

2604-496 VALVE, (1.425 X 0.008 IN.)

VALVE, (1.425 X 0.008 IN.)

1 870 ₽
21

2604-501 VALVE, (1.600 X 0.008 IN.)

VALVE, (1.600 X 0.008 IN.)

1 870 ₽
22

2604-486 VALVE, (1.100 X 0.010 IN.)

VALVE, (1.100 X 0.010 IN.)

2 070 ₽
23

2604-502 VALVE, (1.600 X 0.010 IN.)

VALVE, (1.600 X 0.010 IN.)

1 870 ₽
24

2604-693 VALVE, RING - (1.600 X 0.015 IN.)

VALVE, RING - (1.600 X 0.015 IN.)

2 070 ₽
25

2604-498 VALVE, (1.425 X 0.012 IN.)

VALVE, (1.425 X 0.012 IN.)

1 870 ₽
26

3603-410 VALVE, BLEED - (1.600 X 0.006 IN.)

VALVE, BLEED - (1.600 X 0.006 IN.)

3 110 ₽
27

0403-394 PISTON, HIGH-FLOW

PISTON, HIGH-FLOW

10 190 ₽
28

2604-497 VALVE, (1.425 X 0.010 IN.)

VALVE, (1.425 X 0.010 IN.)

1 870 ₽
29

4604-036 VALVE, (1.150 X 0.004 IN.)

VALVE, (1.150 X 0.004 IN.)

1 870 ₽
30

3604-610 WASHER, TOP OUT

WASHER, TOP OUT

1 040 ₽
31

3604-184 WASHER, BACKUP

WASHER, BACKUP

2 070 ₽
32

3603-407 END CAP, BODY/RESERVOIR

END CAP, BODY/RESERVOIR

24 950 ₽
33

4604-017 KIT, REBUILD - RESERVOIR

KIT, REBUILD - RESERVOIR

13 930 ₽
34

3603-379 RING, RETAINING

RING, RETAINING

400 ₽
35

3604-422 BODY, SHOCK

BODY, SHOCK

25 370 ₽
36

3603-388 RESERVOIR

RESERVOIR

16 430 ₽
37

3603-365 DECAL, "PERFORMANCE SERIES"

DECAL, "PERFORMANCE SERIES"

2 700 ₽
38

3603-378 DECAL, RESERVOIR

DECAL, RESERVOIR

2 700 ₽
39

4604-019 PISTON, CONCENTRIC - DAMPING ADJUSTER

PISTON, CONCENTRIC - DAMPING ADJUSTER

13 720 ₽
40

3603-385 KNOB, DAMPING ADJUSTER - LOW SPEED

KNOB, DAMPING ADJUSTER - LOW SPEED

610 ₽
41

3603-377 SCREW, MACHINE

SCREW, MACHINE

1 870 ₽
42

5639-530 OIL, SHOCK - (1 QT)

OIL, SHOCK - (1 QT)

3 950 ₽
