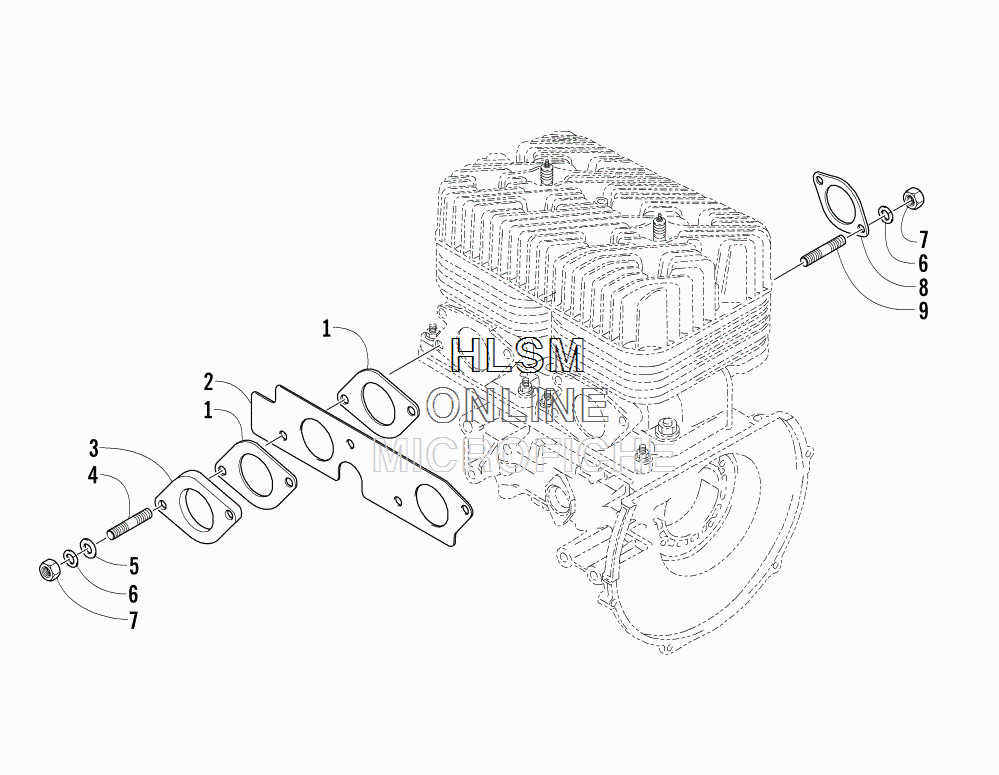

INTAKE ASSEMBLY для Arctic Cat BEARCAT 2000 LT BLUE [ACS2016BCDFCUSL] - 2016 года выпуска
-
№АртикулНазвание
-
13006-615 GASKET, INTAKE MANIFOLDGASKET, INTAKE MANIFOLD
-
23006-466 SHIELD, HEATSHIELD, HEAT
-
33006-075 INSULATOR, INTAKEINSULATOR, INTAKE
-
43007-481 BOLT, STUDBOLT, STUD
-
53007-418 WASHERWASHER
-
63007-417 WASHER, LOCKWASHER, LOCK
-
73007-416 NUTNUT
-
83003-503 GASKET, EXHAUST - NON-ASBESTOSGASKET, EXHAUST - NON-ASBESTOS
-
93007-419 BOLT, STUDBOLT, STUD
