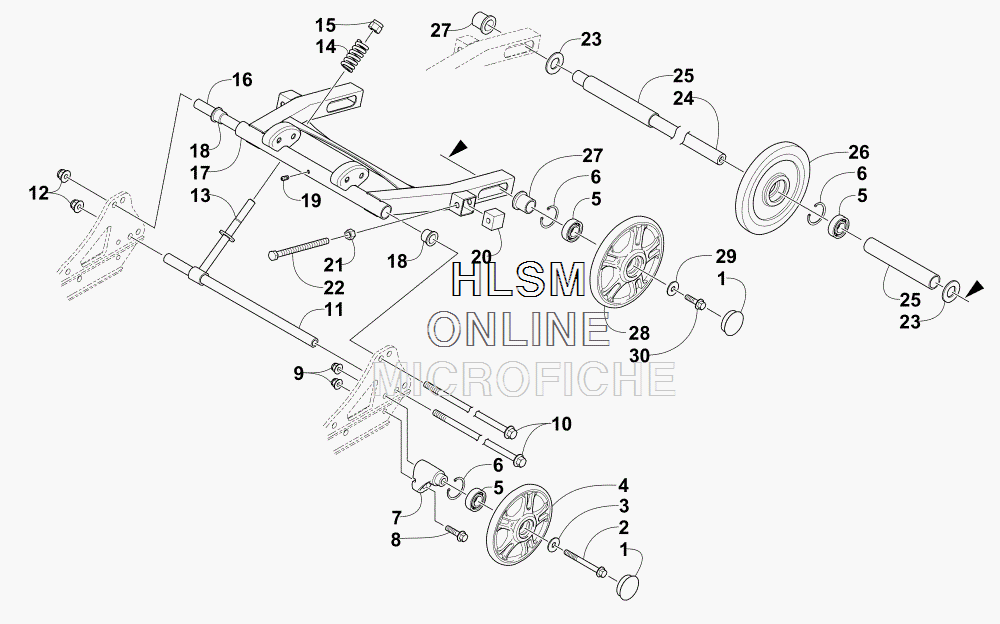

ARTICULATING SKID FRAME ASSEMBLY для Arctic Cat BEARCAT 2000 XTE BLACK INTERNATIONAL [S2016BCDWEOSB] - 2016 года выпуска
-
№АртикулНазвание
-
11604-952 CAP, IDLER WHEELCAP, IDLER WHEEL
-
28408-880 SCREW, CAPSCREW, CAP
-
38450-133 WASHERWASHER
-
43604-299 WHEEL, IDLER - WHITE (INC. 5-6)WHEEL, IDLER - WHITE (INC. 5-6)
-
53604-033 ...BEARING...BEARING
-
60623-946 ...RING, RETAINING...RING, RETAINING
-
73604-004 BLOCK, MOUNTING - IDLER WHEELBLOCK, MOUNTING - IDLER WHEEL
-
88408-830 SCREW, CAPSCREW, CAP
-
98427-802 NUT, LOCKNUT, LOCK
-
102623-078 SCREW, CAPSCREW, CAP
-
113604-463 AXLEAXLE
-
128427-002 NUT, LOCKNUT, LOCK
-
131704-958 ROD, ADJUSTERROD, ADJUSTER
-
141704-785 SPRINGSPRING
-
151623-965 NUT, LOCKNUT, LOCK
-
163604-429 AXLEAXLE
-
171704-956 ARM, SWING (INC. 18-19)ARM, SWING (INC. 18-19)
-
180104-386 ...BUSHING...BUSHING
-
191623-010 ...FITTING, GREASE...FITTING, GREASE
-
203604-427 ADJUSTER, TRACKADJUSTER, TRACK
-
218042-486 NUTNUT
-
220623-123 SCREW, CAPSCREW, CAP
-
230623-921 WASHERWASHER
-
243604-450 AXLE, REAR WHEELAXLE, REAR WHEEL
-
253604-451 SPACERSPACER
-
263604-049 WHEEL, IDLER - BLACK (NO SPOKE) (INC. 5-6)WHEEL, IDLER - BLACK (NO SPOKE) (INC. 5-6)
-
273604-503 BUSHING, ADJUSTERBUSHING, ADJUSTER
-
283604-587 WHEEL, IDLER WHITE (INC. 5-6)WHEEL, IDLER WHITE (INC. 5-6)
-
290623-664 WASHERWASHER
-
308408-831 SCREW, CAPSCREW, CAP
