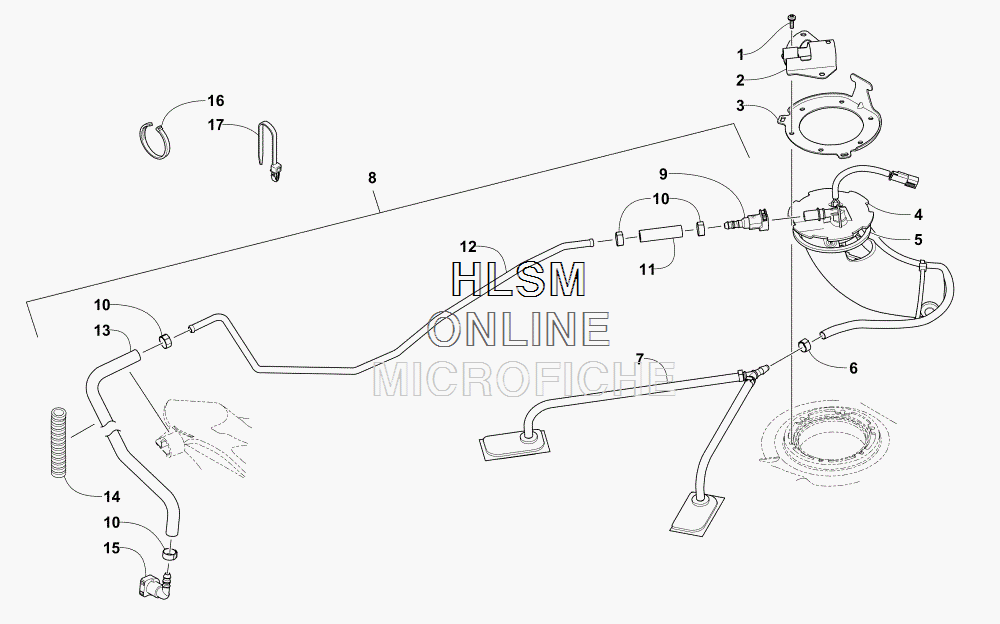

FUEL PUMP ASSEMBLY для Arctic Cat BEARCAT 3000 LT BLUE [S2016BCTLTUSL] - 2016 года выпуска
-
№АртикулНазвание
-
10423-898 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
22670-467 PROTECTOR, FUEL PUMPPROTECTOR, FUEL PUMP
-
32670-395 PLATE, RETAINING - FUEL PUMPPLATE, RETAINING - FUEL PUMP
-
42670-361 PUMP, FUEL - ASSEMBLYPUMP, FUEL - ASSEMBLY
-
50470-838 SEALSEAL
-
61623-655 CLAMP, HOSECLAMP, HOSE
-
72670-278 PICKUP, FUEL - ASSEMBLYPICKUP, FUEL - ASSEMBLY
-
81770-153 LINE, FUEL - TANK - ASSEMBLYLINE, FUEL - TANK - ASSEMBLY
-
92670-141 FITTING, QUICK-CONNECTFITTING, QUICK-CONNECT
-
100610-563 CLAMP, HOSECLAMP, HOSE
-
110610-971 HOSE, FUEL - IN TANK - 10 FTHOSE, FUEL - IN TANK - 10 FT
-
122670-544 LINE, FUELLINE, FUEL
-
130610-997 HOSE, FUEL - LINEHOSE, FUEL - LINE
-
141619-349 LOOM, 5/8" NON-SLIT - 5 FTLOOM, 5/8" NON-SLIT - 5 FT
-
151670-878 FITTING, QUICK-CONNECTFITTING, QUICK-CONNECT
-
160123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
170623-677 TIE, CABLE - PUSH-MOUNTTIE, CABLE - PUSH-MOUNT
