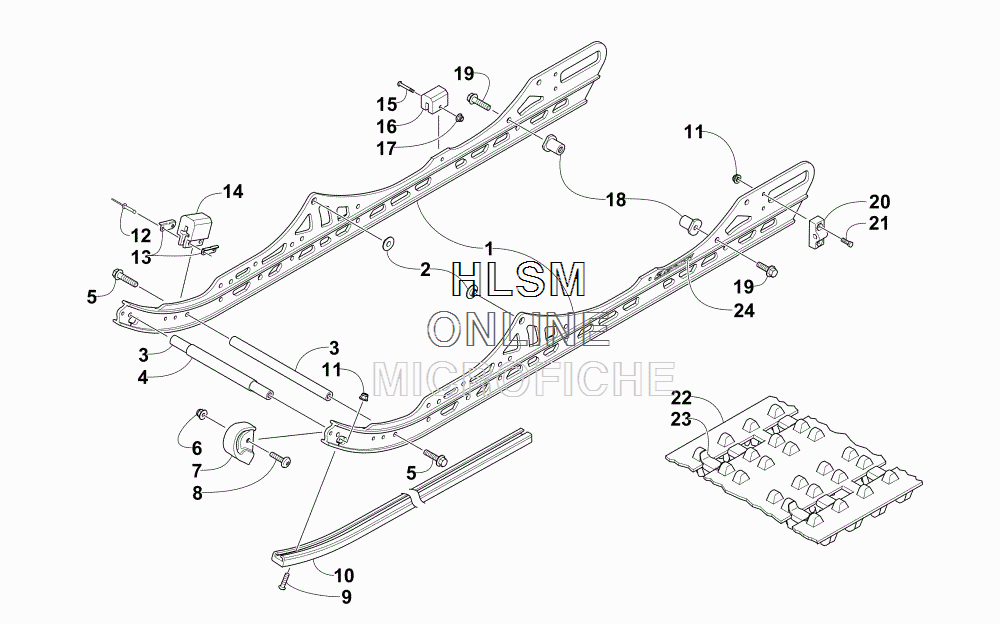

TRACK ASSEMBLY W/ SLIDE RAIL для Arctic Cat LYNX 2000 BLACK [S2016LXDFCUSB] - 2016 года выпуска
-
№АртикулНазвание
-
-2704-085 COMPLETE SKID FRAME ASSEMBLYCOMPLETE SKID FRAME ASSEMBLY
-
13604-572 RAIL, FORMEDRAIL, FORMED
-
23604-266 INSERT, RAILINSERT, RAIL
-
33604-268 AXLEAXLE
-
42604-281 SPACERSPACER
-
58408-826 SCREW, CAPSCREW, CAP
-
68427-602 NUT, LOCKNUT, LOCK
-
73604-003 END CAP, SLIDE RAILEND CAP, SLIDE RAIL
-
88476-625 SCREW, MACHINESCREW, MACHINE
-
90123-859 SCREW, MACHINESCREW, MACHINE
-
103604-186 WEARSTRIP, SLIDE RAIL - BLACKWEARSTRIP, SLIDE RAIL - BLACK
-
118047-366 NUT, LOCKNUT, LOCK
-
128060-633 RIVET, BLIND - DHRIVET, BLIND - DH
-
130604-967 BRACKET, RETAININGBRACKET, RETAINING
-
140604-918 PAD, SHOCKPAD, SHOCK
-
158470-540 SCREW, MACHINESCREW, MACHINE
-
161604-429 PAD, SHOCKPAD, SHOCK
-
178427-502 NUT, LOCKNUT, LOCK
-
183604-979 AXLE, OFFSET ARMAXLE, OFFSET ARM
-
198408-031 SCREW, CAPSCREW, CAP
-
200704-352 BLOCKBLOCK
-
218002-042 SCREW, CAPSCREW, CAP
-
222602-096 TRACK ASSEMBLY (INC. 23)TRACK ASSEMBLY (INC. 23)
-
232602-384 ...CLIP, WEAR...CLIP, WEAR
-
240621-907 DECAL, "SLIDE ACTION"DECAL, "SLIDE ACTION"
