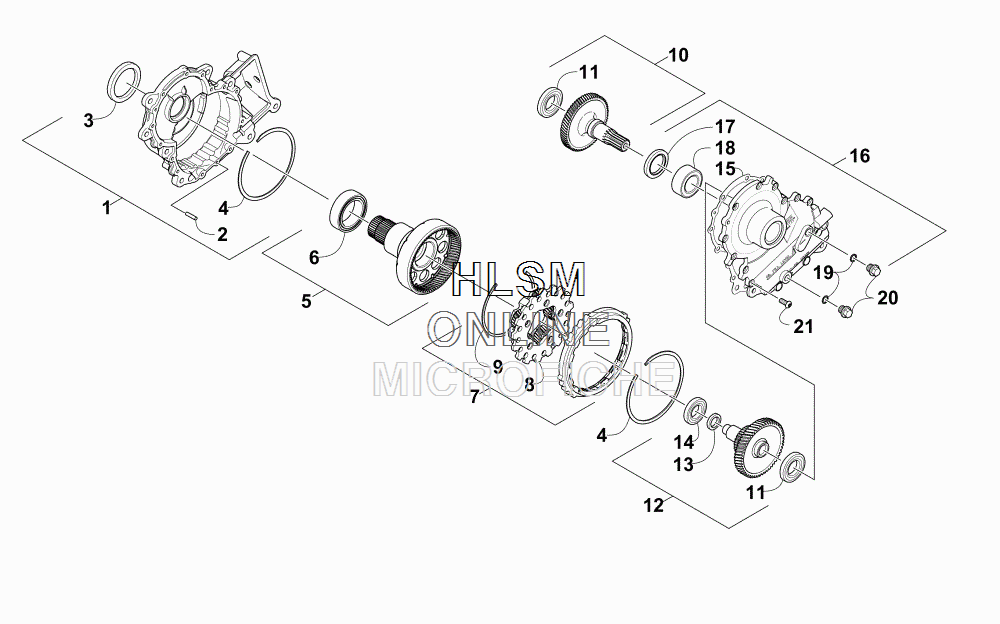

GEARCASE ASSEMBLY для Arctic Cat LYNX 2000 LT BLACK [S2016LXDLTUSB] - 2016 года выпуска
-
№АртикулНазвание
-
-1702-135 GEARCASE ASSEMBLYGEARCASE ASSEMBLY
-
10702-994 HOUSING, GEARCASE (INC. 2-3 AND ONE NO. 4)HOUSING, GEARCASE (INC. 2-3 AND ONE NO. 4)
-
21602-915 ...PIN, DOWEL...PIN, DOWEL
-
32602-159 ...SEAL, OIL - PRE-LUBE...SEAL, OIL - PRE-LUBE
-
42602-151 ...RING, RETAINING...RING, RETAINING
-
51702-012 GEAR, RING (INC. 6)GEAR, RING (INC. 6)
-
61602-980 ...BEARING - PEER...BEARING - PEER
-
71702-013 GEAR, PLANETARY - ASSEMBLY (INC. 8-9)GEAR, PLANETARY - ASSEMBLY (INC. 8-9)
-
81602-349 ...GEAR, PLANETARY...GEAR, PLANETARY
-
92602-257 ...RING, RETAINING...RING, RETAINING
-
100702-686 SHAFT, INPUT - 54T (INC. ONE NO. 11)SHAFT, INPUT - 54T (INC. ONE NO. 11)
-
111602-981 ...BEARING...BEARING
-
121702-116 GEAR, TRANSFER - 66T/34T - ASSEMBLY (INC. ONE NO. 11 AND 13-14)GEAR, TRANSFER - 66T/34T - ASSEMBLY (INC. ONE NO. 11 AND 13-14)
-
132602-259 ...SPACER...SPACER
-
142602-108 ...BEARING, TRANSFER GEAR...BEARING, TRANSFER GEAR
-
152602-184 GASKET, GEARCASEGASKET, GEARCASE
-
160702-996 COVER, GEARCASE (INC. 17-20)COVER, GEARCASE (INC. 17-20)
-
172602-160 ...SEAL, OIL - PRE-LUBE...SEAL, OIL - PRE-LUBE
-
181602-982 ...BEARING...BEARING
-
191602-213 ...O-RING...O-RING
-
202602-099 ...PLUG, DRAIN...PLUG, DRAIN
-
210423-538 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
-5639-219 FLUID, GEARCASE - 15 OZ (NOT ILLUSTRATED)FLUID, GEARCASE - 15 OZ (NOT ILLUSTRATED)
