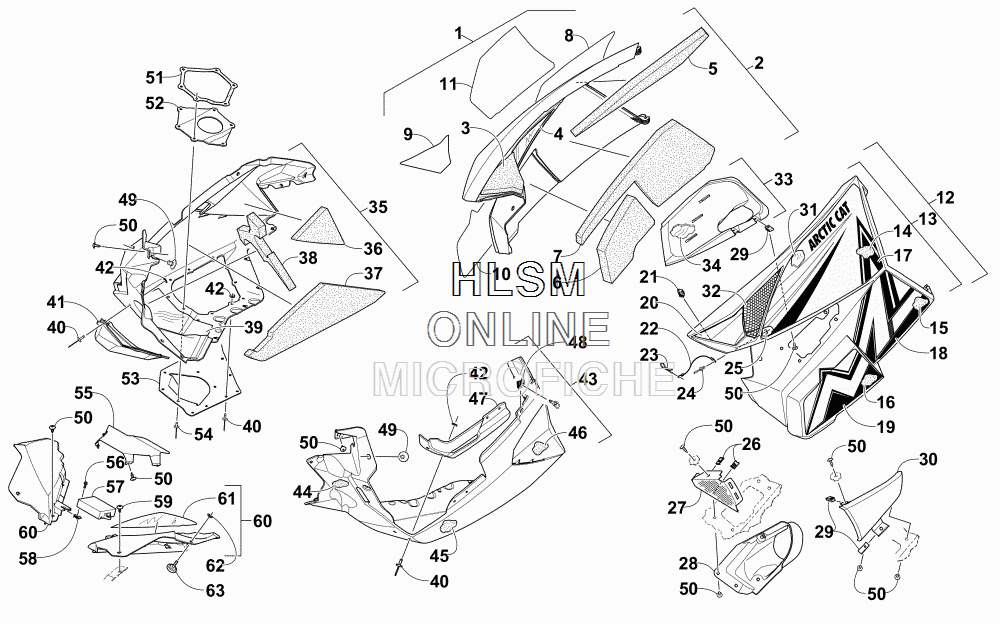

SKID PLATE AND SIDE PANEL ASSEMBLY для Arctic Cat M 6000 141 GREEN [S2016M6DE2USG] - 2016 года выпуска
-
№АртикулНазвание
-
14718-594 PANEL, SIDE - W/DECALS - RIGHT - GREEN (INC. 2-11)PANEL, SIDE - W/DECALS - RIGHT - GREEN (INC. 2-11)
-
23718-858 ...PANEL, SIDE - W/O DECALS - RIGHT - GREEN (INC. 3-7)...PANEL, SIDE - W/O DECALS - RIGHT - GREEN (INC. 3-7)
-
30617-626 ......FOAM, SIDE PANEL - UPPER FRONT - RIGHT......FOAM, SIDE PANEL - UPPER FRONT - RIGHT
-
46606-414 ......FOIL, PROTECTIVE......FOIL, PROTECTIVE
-
50617-628 ......FOAM, SIDE PANEL - UPPER REAR - RIGHT......FOAM, SIDE PANEL - UPPER REAR - RIGHT
-
60617-632 ......FOAM, SIDE PANEL - LOWER FRONT - RIGHT......FOAM, SIDE PANEL - LOWER FRONT - RIGHT
-
70617-634 ......FOAM, SIDE PANEL - LOWER REAR - RIGHT......FOAM, SIDE PANEL - LOWER REAR - RIGHT
-
82621-490 ...DECAL, SIDE PANEL - UPPER REAR - RIGHT - GREEN...DECAL, SIDE PANEL - UPPER REAR - RIGHT - GREEN
-
92621-494 ...DECAL, SIDE PANEL - UPPER FRONT - RIGHT - GREEN...DECAL, SIDE PANEL - UPPER FRONT - RIGHT - GREEN
-
102621-496 ...DECAL, SIDE PANEL - LOWER FORWARD - RIGHT - GREEN...DECAL, SIDE PANEL - LOWER FORWARD - RIGHT - GREEN
-
112621-498 ...DECAL, SIDE PANEL - LOWER REAR - RIGHT - GREEN...DECAL, SIDE PANEL - LOWER REAR - RIGHT - GREEN
-
124718-595 PANEL, SIDE - W/DECALS- LEFT - GREEN (INC. 13-20)PANEL, SIDE - W/DECALS- LEFT - GREEN (INC. 13-20)
-
134718-577 ...PANEL, SIDE - W/O DECALS - LEFT - GREEN (INC. 14-16)...PANEL, SIDE - W/O DECALS - LEFT - GREEN (INC. 14-16)
-
140617-629 ......FOAM, SIDE PANEL - UPPER REAR - LEFT......FOAM, SIDE PANEL - UPPER REAR - LEFT
-
150617-635 ......FOAM, SIDE PANEL - LOWER REAR - LEFT......FOAM, SIDE PANEL - LOWER REAR - LEFT
-
160617-681 ......FOAM, SIDE PANEL - LOWER FRONT - LEFT......FOAM, SIDE PANEL - LOWER FRONT - LEFT
-
172621-491 ...DECAL, SIDE PANEL - UPPER REAR - LEFT - GREEN...DECAL, SIDE PANEL - UPPER REAR - LEFT - GREEN
-
182621-499 ...DECAL, SIDE PANEL - LOWER REAR - LEFT - GREEN...DECAL, SIDE PANEL - LOWER REAR - LEFT - GREEN
-
192621-497 ...DECAL, SIDE PANEL - LOWER FORWARD - LEFT - GREEN...DECAL, SIDE PANEL - LOWER FORWARD - LEFT - GREEN
-
202621-495 ...DECAL, SIDE PANEL - UPPER FRONT - LEFT - GREEN...DECAL, SIDE PANEL - UPPER FRONT - LEFT - GREEN
-
211623-637 ...CLIP, U-NUT...CLIP, U-NUT
-
220607-447 CABLECABLE
-
230605-283 CLIP, HAIRPINCLIP, HAIRPIN
-
248060-486 RIVETRIVET
-
258050-127 WASHERWASHER
-
261623-052 CLIP, U-NUTCLIP, U-NUT
-
276606-925 SCREEN, INTAKESCREEN, INTAKE
-
282602-794 DUCT, INTAKE - INNERDUCT, INTAKE - INNER
-
291623-030 CLIP, U-NUTCLIP, U-NUT
-
302602-801 DUCT, INTAKE - OUTER - GREENDUCT, INTAKE - OUTER - GREEN
-
310619-206 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
325706-531 SCREEN, INTAKESCREEN, INTAKE
-
331702-369 DUCT, AIR - CLUTCH (INC. 34)DUCT, AIR - CLUTCH (INC. 34)
-
346606-694 ...FOIL, PROTECTIVE...FOIL, PROTECTIVE
-
354718-158 PLATE, SKID - W/O DECALS - RIGHT - BLACK (INC. 36-42)PLATE, SKID - W/O DECALS - RIGHT - BLACK (INC. 36-42)
-
360617-640 ...FOAM, SKID PLATE - UPPER REAR - RIGHT...FOAM, SKID PLATE - UPPER REAR - RIGHT
-
370617-638 ...FOAM, SKID PLATE - CENTER FRONT - RIGHT...FOAM, SKID PLATE - CENTER FRONT - RIGHT
-
380617-636 ...FOAM, SKID PLATE - UPPER FRONT - RIGHT...FOAM, SKID PLATE - UPPER FRONT - RIGHT
-
392612-970 ...FOIL, PROTECTIVE...FOIL, PROTECTIVE
-
408061-708 ...RIVET...RIVET
-
412612-754 ...DEFLECTOR, HEAT...DEFLECTOR, HEAT
-
420123-802 ...WASHER...WASHER
-
433718-789 PLATE, SKID - W/O DECALS - LEFT - BLACK (INC. 44-47)PLATE, SKID - W/O DECALS - LEFT - BLACK (INC. 44-47)
-
440617-637 ...FOAM, SKID PLATE - UPPER FRONT - LEFT...FOAM, SKID PLATE - UPPER FRONT - LEFT
-
450617-639 ...FOAM, SKID PLATE - CENTER FRONT - LEFT...FOAM, SKID PLATE - CENTER FRONT - LEFT
-
460617-641 ...FOAM, SKID PLATE - UPPER REAR - LEFT...FOAM, SKID PLATE - UPPER REAR - LEFT
-
476606-613 ...PANEL, REINFORCEMENT...PANEL, REINFORCEMENT
-
482623-005 CLIP, RETAININGCLIP, RETAINING
-
496606-592 PIN, RETAININGPIN, RETAINING
-
501623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
512612-972 PLATE, EXHAUST OUTLETPLATE, EXHAUST OUTLET
-
522612-971 SEAL, EXHAUST OUTLETSEAL, EXHAUST OUTLET
-
531712-963 DEFLECTOR, EXHAUST OUTLET - BLACKDEFLECTOR, EXHAUST OUTLET - BLACK
-
548061-710 RIVET, BLIND - LARGE FLANGE - SS68 - BLACKRIVET, BLIND - LARGE FLANGE - SS68 - BLACK
-
556606-940 SHIELD, HEAT - ECMSHIELD, HEAT - ECM
-
568408-620 SCREW, CAPSCREW, CAP
-
570730-267 ECMECM
-
580423-031 CLIP, U-NUTCLIP, U-NUT
-
590623-784 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
606606-342 FASCIA, FRONT - RIGHT - BLACKFASCIA, FRONT - RIGHT - BLACK
-
603718-303 FASCIA, FRONT - LEFT - BLACK (INC. 61)FASCIA, FRONT - LEFT - BLACK (INC. 61)
-
616606-405 ...FOIL, PROTECTIVE...FOIL, PROTECTIVE
-
622623-001 NUT, PUSHNUT, PUSH
-
631623-999 SCREW, THUMBSCREW, THUMB
