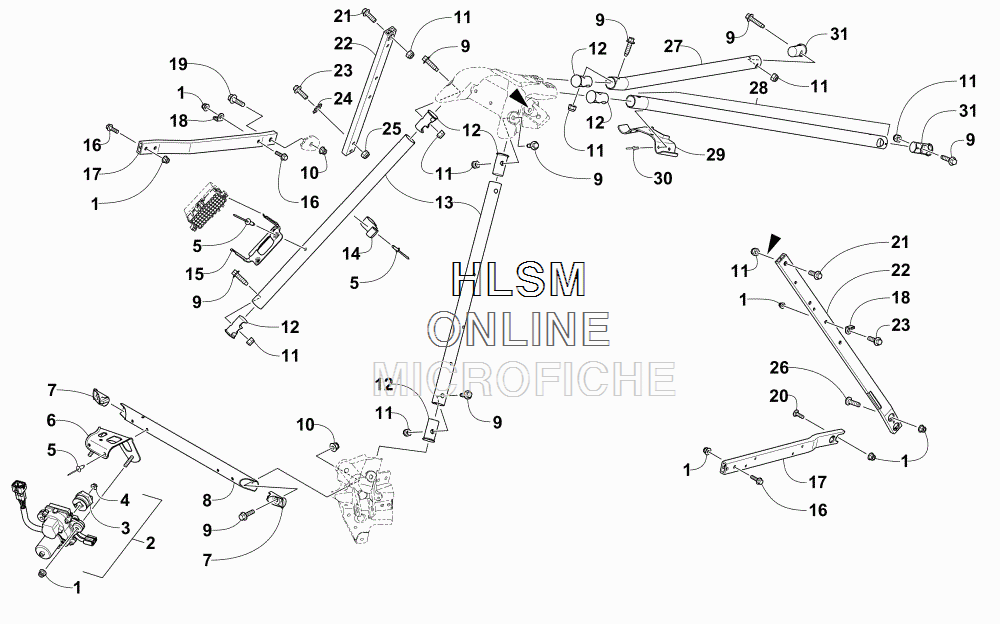

STEERING SUPPORT ASSEMBLY для Arctic Cat M 6000 SNO PRO 141 ES INTERNATIONAL GREEN EARLY BUILD [S2016M6DSMOEG] - 2016 года выпуска
-
№АртикулНазвание
-
18427-602 NUT, LOCKNUT, LOCK
-
20902-012 SERVOMOTOR (INC. 3-4)SERVOMOTOR (INC. 3-4)
-
30902-019 ...PULLEY, CONTROLLER...PULLEY, CONTROLLER
-
48424-501 ...NUT...NUT
-
58060-686 RIVET - ZINCRIVET - ZINC
-
64706-845 BRACKET, MOUNTING - SERVOMOTORBRACKET, MOUNTING - SERVOMOTOR
-
71607-002 INSERTINSERT
-
81607-351 SUPPORT, SHOCK MOUNT BRACKETSUPPORT, SHOCK MOUNT BRACKET
-
92623-121 SCREW, CAPSCREW, CAP
-
108427-802 NUT, LOCKNUT, LOCK
-
118422-802 NUT, LOCKNUT, LOCK
-
121607-094 INSERTINSERT
-
131607-352 SPAR, FRONTSPAR, FRONT
-
141623-938 CLAMP, ROUTINGCLAMP, ROUTING
-
150645-653 BRACKET, MOUNTING - FUSE BLOCKBRACKET, MOUNTING - FUSE BLOCK
-
168408-630 SCREW, CAPSCREW, CAP
-
170607-248 SUPPORT, CHASSIS - RIGHTSUPPORT, CHASSIS - RIGHT
-
171607-583 SUPPORT, CHASSIS - LEFTSUPPORT, CHASSIS - LEFT
-
182612-707 TAB, SPRINGTAB, SPRING
-
198408-885 SCREW, CAPSCREW, CAP
-
201623-917 BOLT, CARRIAGEBOLT, CARRIAGE
-
218408-820 SCREW, CAPSCREW, CAP
-
220607-252 SUPPORT, SIDE - REAR - RIGHTSUPPORT, SIDE - REAR - RIGHT
-
221607-581 SUPPORT, SIDE - REAR - LEFTSUPPORT, SIDE - REAR - LEFT
-
238408-625 SCREW, CAPSCREW, CAP
-
248053-212 WASHER, EXTERNAL TOOTH LOCKWASHER, EXTERNAL TOOTH LOCK
-
258422-602 NUT, LOCKNUT, LOCK
-
268476-616 SCREW, MACHINESCREW, MACHINE
-
272707-504 SPAR, REAR - RIGHTSPAR, REAR - RIGHT
-
286706-034 SPAR, REAR - LEFT (INC. 29-30)SPAR, REAR - LEFT (INC. 29-30)
-
296606-391 ...BRACKET, HOLD-DOWN - SEAT-BASE...BRACKET, HOLD-DOWN - SEAT-BASE
-
308060-484 ...RIVET...RIVET
-
318476-630 SCREW, MACHINESCREW, MACHINE
-
321607-187 INSERTINSERT
