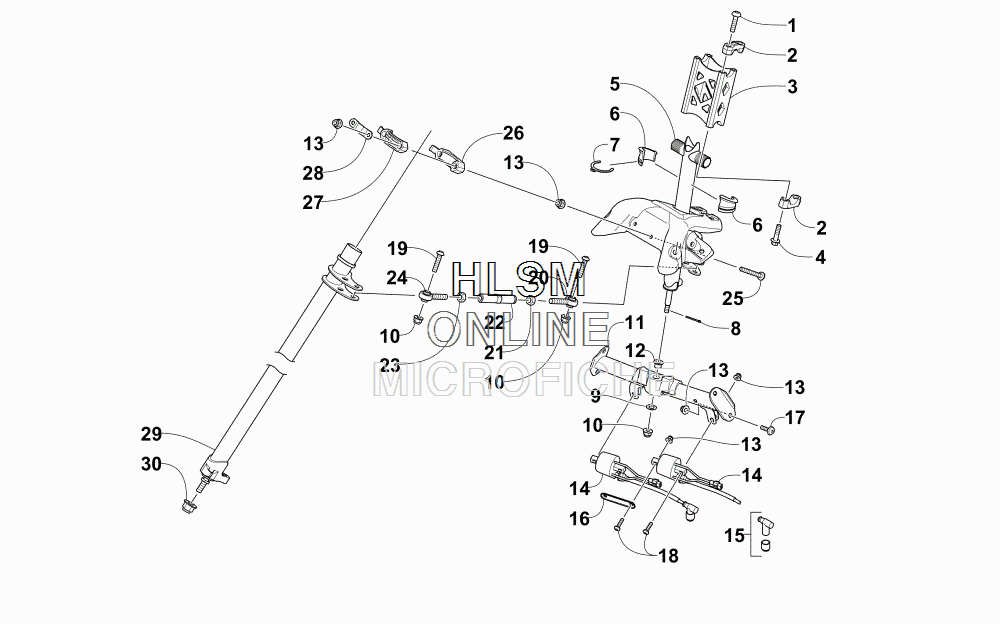

STEERING POST ASSEMBLY для Arctic Cat M 6000 SNO PRO OANGE INTERNATIONAL [S2016M6DSPOSO] - 2016 года выпуска
-
№АртикулНазвание
-
18477-830 SCREW, MACHINESCREW, MACHINE
-
21705-461 CAP, RISER BLOCK - BLACKCAP, RISER BLOCK - BLACK
-
31705-415 BLOCK, RISER - BLACKBLOCK, RISER - BLACK
-
48408-830 SCREW, CAPSCREW, CAP
-
51705-395 POST, STEERING - UPPER - BLACKPOST, STEERING - UPPER - BLACK
-
61605-054 BEARING - RIGHTBEARING - RIGHT
-
61605-055 BEARING - LEFTBEARING - LEFT
-
71605-056 RING, RETAININGRING, RETAINING
-
80623-175 PIN, COTTERPIN, COTTER
-
91605-067 WASHER, THRUSTWASHER, THRUST
-
108427-802 NUT, LOCKNUT, LOCK
-
111705-397 BRACKET, STEERING SUPPORT (INC. 12)BRACKET, STEERING SUPPORT (INC. 12)
-
121605-057 ...BEARING...BEARING
-
138427-602 NUT, LOCKNUT, LOCK
-
140902-034 COIL, IGNITION - ASSEMBLY (INC. 15)COIL, IGNITION - ASSEMBLY (INC. 15)
-
153006-367 ...CAP, SPARK PLUG...CAP, SPARK PLUG
-
160608-706 PLATE, RETAININGPLATE, RETAINING
-
178476-625 SCREW, MACHINESCREW, MACHINE
-
188468-625 SCREW, MACHINESCREW, MACHINE
-
192623-026 SCREW, MACHINESCREW, MACHINE
-
201605-032 BALL JOINT, TIE ROD - RIGHT-HAND THREADBALL JOINT, TIE ROD - RIGHT-HAND THREAD
-
218420-002 NUT - RIGHT-HAND THREADNUT - RIGHT-HAND THREAD
-
221605-053 TUBE, TIE RODTUBE, TIE ROD
-
230423-013 NUT - LEFT-HAND THREADNUT - LEFT-HAND THREAD
-
241605-051 BALL JOINT, STEERING - LEFT-HAND THREADBALL JOINT, STEERING - LEFT-HAND THREAD
-
252623-079 SCREW, MACHINESCREW, MACHINE
-
261605-128 BLOCK, MOUNTING - STEERING POST - LOWERBLOCK, MOUNTING - STEERING POST - LOWER
-
271605-127 BLOCK, MOUNTING - STEERING POST - UPPERBLOCK, MOUNTING - STEERING POST - UPPER
-
280605-998 PLATE, RETAININGPLATE, RETAINING
-
291705-399 POST, STEERING - LOWERPOST, STEERING - LOWER
-
302623-076 NUT, LOCK - W/WASHERNUT, LOCK - W/WASHER
