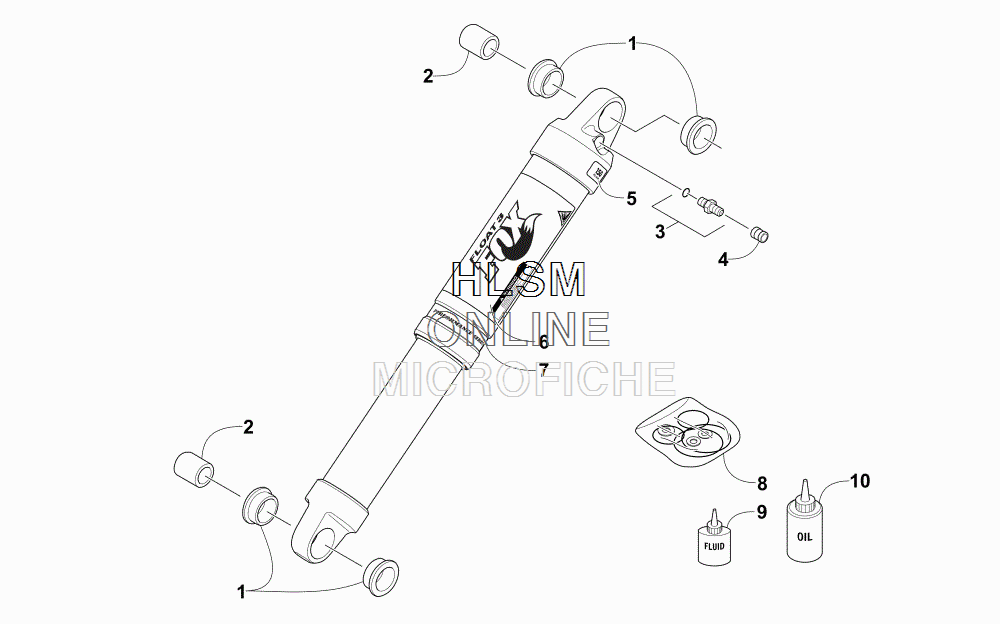

REAR SUSPENSION REAR ARM SHOCK ABSORBER для Arctic Cat M 7000 SNO PRO 153 GREEN [S2016M7USPUSG] - 2016 года выпуска
-
№АртикулНазвание
-
-2704-814 SHOCK ABSORBERSHOCK ABSORBER
-
11604-222 BUSHINGBUSHING
-
22604-223 SLEEVESLEEVE
-
32603-511 VALVE, AIRVALVE, AIR
-
42603-327 CAP, AIR VALVECAP, AIR VALVE
-
53603-359 DECAL, PSIDECAL, PSI
-
63603-369 DECAL, "FLOAT 3 FOX"DECAL, "FLOAT 3 FOX"
-
73603-365 DECAL, "PERFORMANCE SERIES"DECAL, "PERFORMANCE SERIES"
-
83603-293 KIT, SEAL/CAP REBUILDKIT, SEAL/CAP REBUILD
-
94639-012 FLUID, FLOAT SHOCK - 8 OZFLUID, FLOAT SHOCK - 8 OZ
-
105639-530 OIL, SHOCK - 1 QTOIL, SHOCK - 1 QT
