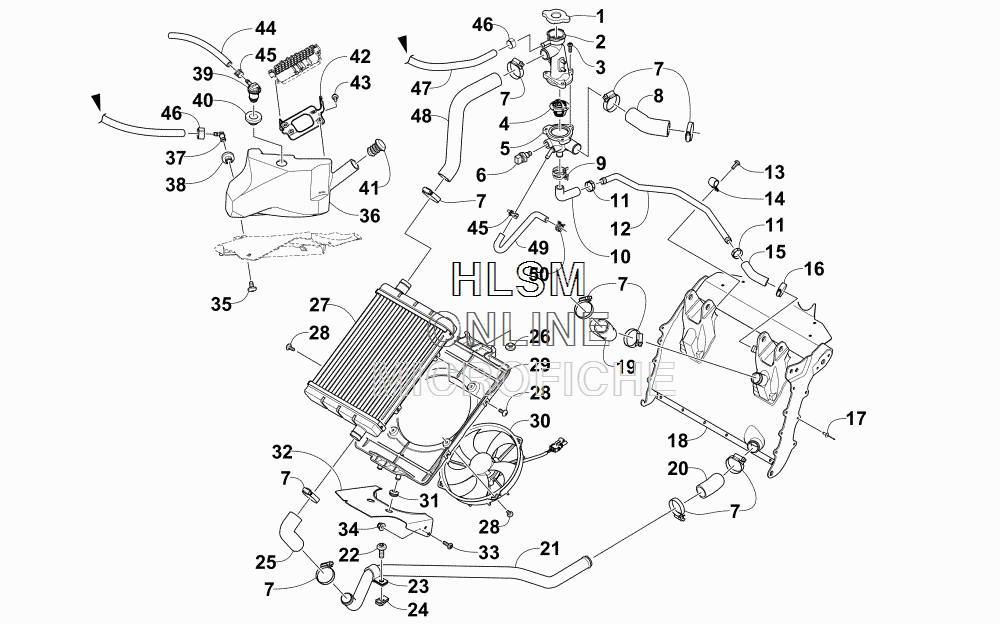

COOLING ASSEMBLY для Arctic Cat M 7000 SNO PRO 162 GREEN [S2016M7USEUSG] - 2016 года выпуска
-
№АртикулНазвание
-
12606-284 CAPCAP
-
20613-080 NECK, FILLERNECK, FILLER
-
38470-520 SCREW, MACHINESCREW, MACHINE
-
40613-078 THERMOSTATTHERMOSTAT
-
50713-160 HOUSING, THERMOSTAT - ASSEMBLYHOUSING, THERMOSTAT - ASSEMBLY
-
60824-051 SENSOR, ENGINE COOLANT TEMPERATURESENSOR, ENGINE COOLANT TEMPERATURE
-
72623-088 CLAMP, HOSECLAMP, HOSE
-
80610-884 HOSE, COOLANTHOSE, COOLANT
-
91623-282 CLAMP, HOSECLAMP, HOSE
-
100613-141 HOSE, COOLANTHOSE, COOLANT
-
110610-993 CLAMP, HOSECLAMP, HOSE
-
120613-139 TUBE, COOLANT - THERMOSTAT/HEAT EXCHANGERTUBE, COOLANT - THERMOSTAT/HEAT EXCHANGER
-
130623-966 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
142623-083 CLAMP, ROUTINGCLAMP, ROUTING
-
150613-140 HOSE, COOLANTHOSE, COOLANT
-
162623-062 CLAMP, HOSECLAMP, HOSE
-
178060-706 RIVET - BLACKRIVET - BLACK
-
180713-137 EXCHANGER, HEAT - FRONT - W/BRACEEXCHANGER, HEAT - FRONT - W/BRACE
-
190610-885 HOSE, COOLANT - ENGINE/HEAT EXCHANGERHOSE, COOLANT - ENGINE/HEAT EXCHANGER
-
200610-909 HOSE, COOLANTHOSE, COOLANT
-
210613-090 TUBE, COOLANT - RADIATOR/HEAT EXCHANGERTUBE, COOLANT - RADIATOR/HEAT EXCHANGER
-
228476-616 SCREW, MACHINESCREW, MACHINE
-
230423-044 CLAMP, ROUTINGCLAMP, ROUTING
-
240423-577 CLIP, U-NUTCLIP, U-NUT
-
250610-906 HOSE, COOLANTHOSE, COOLANT
-
260406-877 BUMPERBUMPER
-
270613-074 RADIATORRADIATOR
-
288475-512 SCREW, MACHINESCREW, MACHINE
-
290613-095 SHROUD, FANSHROUD, FAN
-
300613-075 FAN, COOLINGFAN, COOLING
-
310423-030 GROMMETGROMMET
-
320613-094 BRACKET, MOUNTING - RADIATORBRACKET, MOUNTING - RADIATOR
-
338477-620 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
348427-602 NUT, LOCKNUT, LOCK
-
358477-612 SCREW, MACHINESCREW, MACHINE
-
360613-155 TANK, COOLANTTANK, COOLANT
-
372670-430 FITTING, ELBOWFITTING, ELBOW
-
381670-325 GROMMETGROMMET
-
391670-787 VALVE, CHECKVALVE, CHECK
-
401670-822 GROMMETGROMMET
-
410413-087 PLUGPLUG
-
420645-653 BRACKET, MOUNTING - FUSE BLOCKBRACKET, MOUNTING - FUSE BLOCK
-
438408-512 SCREW, CAPSCREW, CAP
-
440410-143 HOSE, GASLINE - 25 FTHOSE, GASLINE - 25 FT
-
450610-419 CLAMP, HOSECLAMP, HOSE
-
460610-563 CLAMP, HOSECLAMP, HOSE
-
470610-970 HOSE - 25 FTHOSE - 25 FT
-
480610-882 HOSE, COOLANT - FILLER NECK/RADIATORHOSE, COOLANT - FILLER NECK/RADIATOR
-
490610-887 HOSE, COOLANT - THROTTLE BODY/THERMOSTAT HOUSINGHOSE, COOLANT - THROTTLE BODY/THERMOSTAT HOUSING
-
501623-277 CLAMP, HOSECLAMP, HOSE
