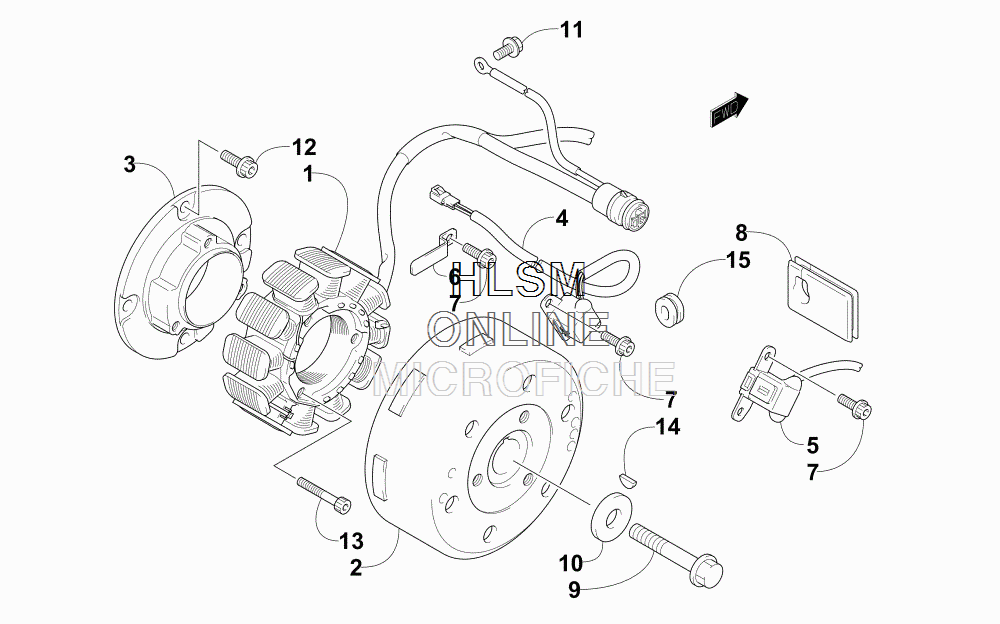

MAGNETO для Arctic Cat M 8000 HCR 153 GREEN [S2016M8HHCOSG] - 2016 года выпуска
![](/wa-data/public/shop/sheme/arctic-cat/snow/11406e35-40fd-4e0b-acec-0e7013bebf4d.gif)
-
№АртикулНазвание
-
13007-711 STATOR ASSEMBLYSTATOR ASSEMBLY
-
23007-315 ROTOR/FLYWHEELROTOR/FLYWHEEL
-
33007-546 BASE, STATOR - PLATEBASE, STATOR - PLATE
-
43007-317 SENSOR, IGNITION TIMINGSENSOR, IGNITION TIMING
-
53007-318 SENSOR, IGNITION TIMINGSENSOR, IGNITION TIMING
-
63005-960 RETAINER, WIRERETAINER, WIRE
-
73007-433 BOLTBOLT
-
83005-775 GROMMETGROMMET
-
93006-476 BOLTBOLT
-
103005-987 WASHERWASHER
-
113007-371 BOLTBOLT
-
123007-449 BOLTBOLT
-
133007-450 BOLTBOLT
-
143004-540 KEY, WOODRUFFKEY, WOODRUFF
-
153007-547 GROMMETGROMMET
