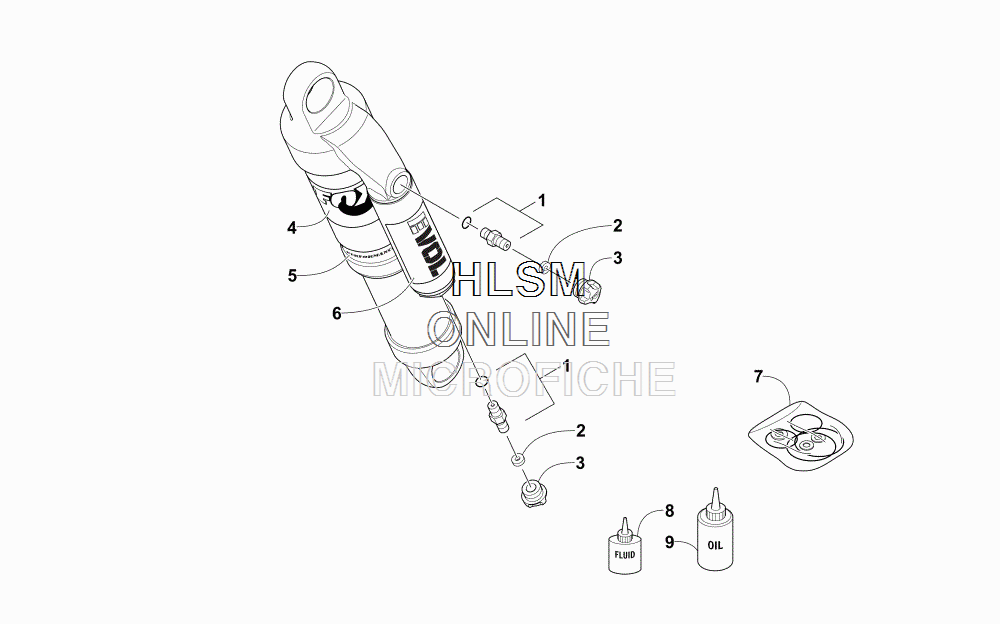

REAR SUSPENSION FRONT ARM SHOCK ABSORBER для Arctic Cat M 8000 LTD 153 GREEN EARLY BUILD [S2016M8HPSEBG] - 2016 года выпуска
![](/wa-data/public/shop/sheme/arctic-cat/snow/8d8de447-99d4-447d-81be-c77bfdc8e4c2.gif)
-
№АртикулНазвание
-
-2704-816 SHOCK ABSORBERSHOCK ABSORBER
-
12603-511 VALVE, AIRVALVE, AIR
-
22603-965 SEALSEAL
-
33603-367 CAP, AIR VALVECAP, AIR VALVE
-
43603-521 DECAL, RESERVOIRDECAL, RESERVOIR
-
53603-365 DECAL, "PERFORMANCE SERIES"DECAL, "PERFORMANCE SERIES"
-
63603-373 DECAL, "EVOL"DECAL, "EVOL"
-
73603-525 KIT, SEAL/BEARING REBUILDKIT, SEAL/BEARING REBUILD
-
84639-012 FLUID, FLOAT SHOCK - 8 OZFLUID, FLOAT SHOCK - 8 OZ
-
95639-530 OIL, SHOCK - 1 QTOIL, SHOCK - 1 QT
