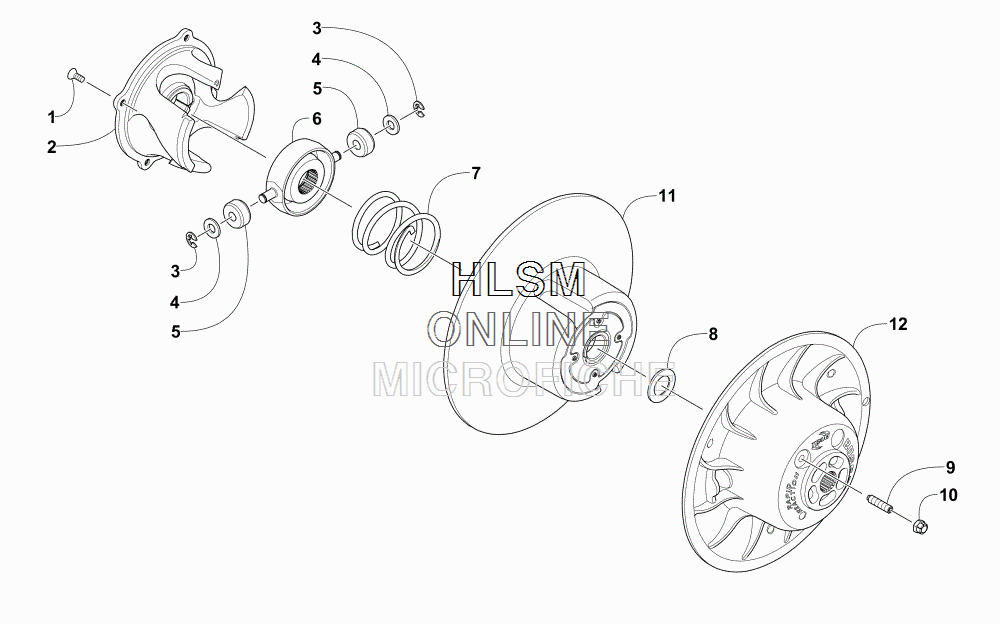

DRIVEN CLUTCH для Arctic Cat M 8000 LTD 162 GREEN [S2016M8HPEUSG] - 2016 года выпуска
-
№АртикулНазвание
-
-0726-388 CLUTCH, DRIVEN - ASSEMBLYCLUTCH, DRIVEN - ASSEMBLY
-
10648-875 SCREW, MACHINESCREW, MACHINE
-
20648-898 CAM, DRIVENCAM, DRIVEN
-
20648-904 CAM, DRIVEN (BELOW 3,000 FT ALT.)CAM, DRIVEN (BELOW 3,000 FT ALT.)
-
30648-701 RING, RETAININGRING, RETAINING
-
40648-700 WASHER, THRUSTWASHER, THRUST
-
50648-842 ROLLERROLLER
-
60648-841 SPIDERSPIDER
-
70648-876 SPRING, DRIVEN CLUTCHSPRING, DRIVEN CLUTCH
-
70648-857 SPRING, DRIVEN CLUTCH (BELOW 3,000 FT ALT.)SPRING, DRIVEN CLUTCH (BELOW 3,000 FT ALT.)
-
70648-861 SPRING, DRIVEN CLUTCH (3-6,000 FT ALT.)SPRING, DRIVEN CLUTCH (3-6,000 FT ALT.)
-
80648-850 WASHER, SHIM (.090 IN.)WASHER, SHIM (.090 IN.)
-
80648-849 WASHER, SHIM (.030 IN.)WASHER, SHIM (.030 IN.)
-
80645-852 WASHER, SHIM (.015 IN.)WASHER, SHIM (.015 IN.)
-
90648-845 SCREW, SET - ADJUSTERSCREW, SET - ADJUSTER
-
100648-846 NUT, LOCK - ADJUSTERNUT, LOCK - ADJUSTER
-
110748-776 SHEAVE, MOVEABLESHEAVE, MOVEABLE
-
120748-030 SHEAVE, STATIONARYSHEAVE, STATIONARY
